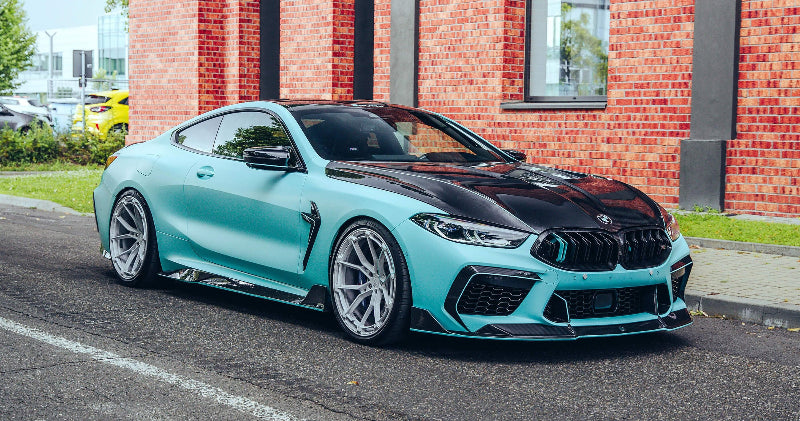

Hood Vent Guide: How Vents Work and When They Help

A hood vent gives heated, high-pressure engine-bay air a planned exit. In a suitable pressure zone, it can support radiator airflow, release trapped heat, and reduce pressure beneath the hood. Its value depends on placement, the route below the opening, and the vehicle’s complete cooling layout. This guide explains how hood vents work, when they help, and how vented hoods and cut-in louvers differ for street and track cars. How Do Hood Vents Work? Hood vents let heated, high-pressure air leave the engine bay. A well-positioned hood vent can support radiator airflow and reduce pressure beneath the front bodywork at speed. Heat Extraction Air enters through the grille and bumper openings as the car moves. Part of this flow passes through the radiator, absorbs heat, and enters the engine bay. A functional hood vent provides an outlet above the engine compartment. The pressure difference drives the process: air moves from the higher-pressure engine bay toward a lower-pressure area above the hood. A clear route between the radiator outlet and vent can support airflow through the cooling package. An SAE International road study measured a 1989 sedan during fan-off testing. Front-end and underhood components reduced the available airflow measured at the radiator exit by 84%. The vehicle-specific result shows how strongly the surrounding structure can affect the outlet path. A vent can also release heat around the turbocharger, exhaust manifold, intake, wiring, and nearby bodywork. Coolant temperature depends on the complete cooling system, including the radiator, thermostat, fans, ducting, coolant circuit, and heat exchangers. Hood Vents, Scoops, and Decorative Louvers A hood vent acts as an outlet, using its opening and louver shape to help heated engine-bay air move outward. A hood scoop normally faces the incoming airflow and feeds a ducted intake, intercooler, or another component. Decorative hood louvers may sit over a closed panel, where their role remains visual. Functional automotive hood vents create an open passage between the engine bay and the hood surface. Viewing the panel from below reveals whether heated air can reach the opening or whether the louvers are exterior trim. Why Does Hood Vent Placement Matter? Hood vent placement often has more influence than opening size. Effective extraction needs a useful pressure difference above the hood and a clear airflow route below it. A smaller opening in a suitable low-pressure region may extract air more effectively than a larger vent placed where outside pressure pushes air inward. Pressure Zones and Radiator Exit Air Pressure changes across the hood as exterior airflow meets the nose, follows the panel curvature, and approaches the windshield. Hood angle, grille design, ride height, windshield rake, and surrounding aero parts all influence the location of useful low-pressure regions. The vent also needs to align with the radiator-exit path. A boxed outlet or underhood shroud may direct heated air toward a specific area of the hood. Hood vent louvers shape the local surface flow around the opening. Blade height, angle, spacing, and orientation can influence extraction, while the area below the vent must remain clear of covers or solid shrouds that block the route. Pressure measurements, thermal sensors, wool-tuft testing, CFD, and controlled track tests can compare placement options under consistent conditions. Vehicle-Specific Hood Geometry The hood’s outer skin may appear open from above while reinforcement ribs occupy the same area underneath. These structures support panel stiffness, latch loads, and crash behavior, so the final vent position must account for both surfaces. Steel, aluminum, fiberglass, and carbon fiber panels require different cutting tools and edge treatments. Car hood air vents also need clearance from wiring, fluid reservoirs, ignition components, exposed filters, and moving engine parts. A model-specific template can align the vent with the pressure region, reinforcement layout, underhood clearance, and factory body lines. The finished installation can then support airflow while remaining visually integrated with the vehicle’s design. When Do Hood Vents Help on Street and Track Cars? Hood vents provide the most value during sustained heat load and higher-speed driving. They can also suit street cars when their fitment, drainage, and maintenance requirements work with daily use. Cooling and Aero Expectations Track driving keeps the engine, turbocharger, cooling system, and brakes under load for several laps. High ambient temperatures reduce the cooling package’s recovery time and make heat soak easier to observe. Turbocharged cars can retain considerable heat around the exhaust manifold and turbine housing after a hard run. A well-developed hood vent may release part of that heat while providing a clearer outlet for air leaving the radiator. The aerodynamic effect increases with speed. Pressure below the hood acts against the panel, while lower pressure above a well-positioned extractor helps draw air outward. Reducing underhood pressure can also reduce front-end lift. Ford studied this relationship while developing the 2020 Shelby GT500. Its engineers analyzed more than 500 cooling and aerodynamic designs, including a 6.03-square-foot louvered hood vent. The final vehicle paired its vent and removable rain tray with front ducting, heat exchangers, a splitter, underbody management, and rear aero components. A modified car requires the same system-level view. A front lip, splitter, flat floor, diffuser, or rear wing affects the vehicle’s broader aero balance, while the hood vent manages one part of the front airflow path. Rain, Washing, and Daily Use Street use adds water management to the hood vent design. Louver angle, rain trays, drain channels, and the position of electrical components influence where incoming water travels. A rain tray can shield sensitive areas, although it may restrict part of the extraction path. Removable trays allow some vehicle-specific systems to use different arrangements for regular road use and track driving. The drainage path should direct water away from exposed filters, ignition components, electrical connectors, reservoirs, and areas where moisture can collect. Low-pressure washing protects the vent openings and panel edges from concentrated spray. Product-specific guidance defines the appropriate rain-tray use, drainage, and maintenance for each hood and vehicle application. Which Hood Vent Setup Fits Your Car? A replacement vented hood and cut-in hood louvers suit different vehicle structures, airflow paths, water-management requirements, visual directions, and installation scopes. Replacement Hood or Cut-In Louvers Cut-in hood louvers retain most of the factory panel. Installation involves positioning a template, creating the opening, treating the exposed edges, and securing the louver insert. This route offers more placement flexibility but permanently changes the factory hood. The selected area must account for reinforcement ribs, panel curvature, underhood clearance, and left-to-right alignment. Metal hoods need corrosion protection at the cut edges. Composite panels require a cutting method that limits cracking, splintering, and surface damage. A complete carbon fiber hood replaces the factory panel and integrates the vents, exterior shape, and internal construction into one component. It can suit a build that calls for a larger material and design change. Cut-in car hood louvers may suit an owner who wants to retain the factory panel and finish. A replacement hood must integrate with the hinges, latches, panel gaps, washer hardware, seals, struts, and available opening clearance. Fitment and Installation Quality Correct fitment begins with the exact model, year, body style, and trim because vehicles within the same model family may use different hood shapes, latch positions, washer systems, or underhood layouts. The printed scale, reference points, panel curvature, and reinforcement position are validated against the physical car before cutting. Fasteners and edge treatments must then remain secure through heat, vibration, rain, washing, and repeated opening cycles. A replacement hood should follow the surrounding fender and bumper gaps, sit at the correct height, and engage both latches without excessive closing force. Professional installation is appropriate for composite cutting, structural trimming, latch adjustment, and unfamiliar carbon-fiber work. How Can a Vehicle-Specific Vented Hood Complete Your Build? A vehicle-specific vented hood can combine functional venting with the factory body lines, mounting points, and surrounding aero components. The hood forms one of the largest surfaces at the front of the car. Its center line, shoulder shape, vent position, and exposed carbon pattern influence the appearance of the complete front section. RevoZport’s carbon fiber hood collection includes model-specific applications for selected Audi, BMW, Chevrolet, and Tesla platforms. Available designs range from refined replacement hoods to more pronounced aero-focused options. Material, vent design, and installation requirements vary by product. Selected RevoZport hoods use Toray pre-preg carbon fiber and autoclave construction, while the matching product page identifies the compatible model years, finish, included parts, and fitment details. The rest of the exterior should follow the same design direction. A vented hood can connect with the bumper and front aero, then continue through the fender details and side skirts. This creates a more cohesive material and surface flow across the vehicle. The exact platform, road or track use, and intended level of visual change define the appropriate hood direction for the build. Is a Hood Vent Worth Adding? A hood vent is worth considering when its position connects high-pressure engine-bay air with a suitable low-pressure area above the hood. Effective venting also depends on a clear radiator-exit path, accurate fitment, and drainage suited to the vehicle. Track cars gain the most during sustained heat and higher-speed use, while street builds place more emphasis on water management, finish, panel alignment, and maintenance. The hood or louver setup should reflect the exact platform, driving conditions, and exterior direction. RevoZport’ model-specific hood range provides options for builds that need integrated venting and a more complete carbon front profile. Frequently Asked Questions Can Hood Vents Work at Low Speeds? Yes. Hood vents can release heat at low speeds through natural convection and fan-driven airflow. Extraction created by the pressure difference above and below the hood becomes stronger as vehicle speed increases. Do All Hood Louvers Need to Face the Same Direction? No. Louver direction depends on the local airflow and pressure around each opening. Paired hood louvers may mirror each other visually while keeping their blades oriented to support extraction. Is a Vented Hood Different From a Hood Louver Insert? Yes. A vented hood replaces the complete factory panel and integrates its openings into the hood structure. A louver insert requires the existing hood to be cut. Can I Add Hood Vents Without Changing the Rest of My Aero Parts? Yes. A cooling-focused hood vent can work without a complete aero package when its position and outlet path are suitable. Higher-speed builds also need a balanced relationship between the front and rear aero components.

A carbon fiber trunk is worth considering when lower panel mass, an exposed-carbon rear deck, and a more focused build justify the additional fitting work. It replaces the factory trunk lid, so panel alignment, transferred hardware, opening control, and weather sealing all affect the result. This guide compares carbon and OEM trunk lids by weight, fitment, hinges, springs, struts, locking functions, installation, and daily use. You will see where a full replacement adds value and when a spoiler may better suit a restrained OEM+ build. How Does a Carbon Fiber Trunk Compare With an OEM Trunk Lid? A carbon fiber trunk usually provides lower panel mass and a complete exposed-carbon rear deck. An OEM trunk lid provides the factory reference for panel alignment, integrated hardware, weather sealing, and opening control. Comparison Area Carbon Fiber Trunk OEM Trunk Lid Weight Usually lighter, with the actual saving determined by the vehicle, panel construction, and transferred hardware Often heavier, although the factory material varies by model Appearance Creates a complete exposed-carbon rear deck Preserves the original painted finish Fitment Uses model-specific geometry and requires dry fitting and final adjustment Provides the factory panel-gap and surface-height reference Hardware Usually requires the transfer of selected OEM components Arrives with the vehicle’s original systems integrated Opening Behavior Requires testing of the hinges, torsion springs, gas struts, and closing force Uses opening assistance matched to the factory lid Weather Sealing Relies on consistent weather-strip contact, latch height, rubber-stop position, and accessory sealing Uses the factory body, lid, and weather-strip combination Installation Requires panel fitting, hardware transfer, alignment, and function testing Retains the factory-installed panel and integrated systems Best Use Weight-focused, street-performance, track, and show builds Factory convenience, original finish, and service simplicity A complete trunk replacement suits a build that needs a stronger rear-deck change than a spoiler can provide. RevoZport’s carbon fiber trunk collection provides model-specific options designed to integrate with the vehicle’s rear profile. A spoiler remains the more restrained option when the goal is a smaller carbon accent. The OEM trunk lid then retains its original locking, wiring, sealing, trim, and opening system. How Much Weight Can a Carbon Fiber Trunk Save? Weight savings depend on the construction of the factory trunk and the hardware transferred to the carbon replacement. A like-for-like measurement provides the most reliable result. Why Weight Savings Vary by Vehicle Factory trunk lids may use steel, aluminum, or composite construction. Carbon replacements also vary in their outer skin, inner structure, reinforcement, and integrated spoiler design. The final installed weight includes the panel and its transferred equipment, such as the latch, wiring, camera, lights, trim, seals, and badges. This makes an assembled trunk heavier than its bare-panel figure. Shipping weight includes packaging and protective materials. A valid trunk-weight comparison uses measured bare-panel or assembled-panel figures for both lids. Like-for-Like OEM Weight Comparison A like-for-like comparison weighs the bare OEM and carbon lids on the same scale under the same conditions, with the hinges, latch, camera, lights, wiring, trim, spoiler, seals, badges, and packaging removed from both panels. A second measurement can compare both assembled lids with the same accessory configuration. Keeping bare-panel and assembled results separate provides a clear vehicle-specific comparison. How Weight Reduction Affects Performance A lighter trunk reduces total vehicle mass. The effect depends on the measured saving, the vehicle’s curb weight, and the other lightweight components included in the build. The trunk sits relatively high and toward the rear, so its weight can form part of a wider reduction program alongside lighter panels, seats, wheels, or exhaust components. According to the U.S. Department of Energy’s Lightweight Materials for Cars and Trucks, a 10% reduction in total vehicle weight can improve fuel economy by 6% to 8%. That figure applies to vehicle-level weight reduction, while the contribution of one trunk depends on its measured weight difference. An SAE International review of automotive lightweight materials also considers durability, appearance, assembly, manufacturing, and cost alongside mass reduction. Vehicle-specific testing is required to measure any change in acceleration or lap time. Will a Carbon Fiber Trunk Fit and Function Like the OEM Trunk? A model-specific carbon fiber trunk can retain the vehicle’s normal locking, lighting, camera, sealing, and opening functions. The final result depends on careful dry fitting, correct transfer of the OEM components, and adjustment at the hinges, latch, and rubber stops. Panel Alignment and OEM Mounting Points Fit the bare carbon trunk to the OEM hinge and latch locations before transferring its accessories. Keep the fasteners lightly tightened at this stage so the panel can move during the initial alignment. The trunk should sit evenly between the rear quarters and tail lights, with consistent panel gaps and surface height on both sides. The opening path and latch engagement also need to work through their full range before the electrical parts, seals, and interior trim move across. Small hinge adjustments control the left-to-right and front-to-rear position. The latch and rubber stops then set the resting height, closing effort, and weather-strip compression. These areas work together, so changing one position may require a second check of the surrounding gaps. Carbon composite panels require controlled mounting pressure during this process. Support the lid while making adjustments and use the product-specific installation requirements for any drilling, trimming, slotting, or additional hardware. Hinges, Springs, Struts and Opening Behavior The OEM hinges and latch can normally remain in use, although both may need adjustment after the lighter lid is fitted. The torsion springs or gas struts may also need recalibration because the factory opening system was set for the original trunk weight. A lighter carbon fiber trunk may rise too quickly, rebound at full opening, or require extra force to close when the original opening assistance remains unchanged. Excess spring or strut force can also increase the load around the hinge area. During the first opening cycles, hand support allows the lid speed and full opening path to be assessed safely. A balanced setup should rise smoothly, remain controlled near full opening, and close without excessive force. Some vehicles allow a reduction in torsion-spring preload, while others may require lower-force gas struts. The correct setting depends on the hinge geometry, installed trunk weight, and opening system used by the specific vehicle. Latch, Wiring and OEM Functions Once installed, a carbon fiber trunk becomes part of the vehicle’s mechanical and electrical systems. The hinges and latch provide the mechanical foundation, while the body-side striker normally remains on the vehicle and may need a small positional adjustment. Depending on the model, the transferred mechanical parts may include the latch, emergency release, weather seal, and rubber stops. Electrical equipment can include the camera, licence-plate lights, exterior opening button, wiring harness, rubber grommets, and a trunk-mounted third brake light. Interior trim and badges may also move to the replacement lid. The wiring harness needs enough movement for the trunk to open fully without pulling on a connector. Factory-style routing, clips, and rubber grommets help keep the cable away from panel edges and the hinge path. Latch height influences closing effort, panel gaps, surface flushness, and weather-strip pressure. Small adjustments at the hinges, latch, and rubber stops establish correct engagement before the opening and closing behavior is tested again. Final function testing covers the key, remote release, exterior button, emergency release, camera, licence-plate lights, third brake light, and any powered opening function fitted to the vehicle. Weather Sealing and Water Resistance A carbon fiber trunk relies on continuous contact between its sealing flange and the OEM weather strip. Panel alignment, latch height, rubber-stop position, accessory openings, and seal placement all influence water resistance. Seal contact is assessed around the corners and near the wiring, camera, lights, and spoiler mounting points, where changes in panel height or latch position can affect compression.A paper-strip pull test compares sealing pressure by measuring the resistance around the opening. Similar resistance at each position indicates more consistent contact between the flange and weather strip. Removable transfer material can reveal the contact pattern in areas that are difficult to judge visually. Once contact is even, a low-pressure water test from the roof toward the rear checks the seal under controlled conditions. The trunk lining, latch area, wiring openings, camera mount, licence-plate lights, and tail-light area provide the main inspection points for moisture. Small adjustments to the hinges, latch, rubber stops, or weather-strip position can correct the entry path before the water test is repeated. What Does Carbon Fiber Trunk Installation Involve? Carbon fiber trunk installation covers removal of the OEM lid, dry fitting of the bare carbon panel, transfer of the factory components, final alignment, and complete function testing. Following that sequence keeps the panel easier to position and leaves room for adjustment before final tightening. Preparing the Vehicle Before removal, the original panel gaps, hinge positions, latch height, and wiring route provide the reference for the replacement installation. Clear photographs preserve the cable routing, hardware orientation, trim position, and surface alignment for reassembly. The rear glass, tail lights, bumper, and adjacent painted panels require protection during removal. Two-person support keeps the OEM trunk stable while the wiring and hinge fasteners are disconnected.This keeps the panel stable and reduces the chance of a corner contacting the body or loading the rear glass unevenly. Fitting the Bare Carbon Panel Initial fitment uses the bare carbon lid before the camera, lights, wiring, trim, seals, or badges are transferred. This keeps the panel easier to support and preserves clear access to the hinges, latch area, and surrounding gaps. The basic geometry begins with the left-to-right and front-to-rear position, followed by surface height and latch engagement. Lightly tightened fasteners leave room for small corrections during this stage. Once the bare panel follows the surrounding body lines, transfer the factory equipment in an order that preserves access to the mounting points. Retain the original cable route where the replacement trunk provides suitable clips, channels, and grommet locations. Completing the Final Tests Final fastener torque follows successful testing of the electrical functions, opening speed, closing force, latch engagement, seal contact, and water resistance. This sequence allows small corrections without repeatedly removing the transferred components. Professional installation is the preferred route for most complete trunk replacements. A technician with composite-panel experience can support the lid correctly, distribute mounting load, and tighten the hardware without concentrating force in the laminate. An experienced owner may complete the installation with suitable tools, model-specific instructions, and a second person to support the panels. Product-specific fitment and installation information defines the required hardware and panel work before the OEM trunk is removed. Which Build Directions Suit a Carbon Fiber Trunk? A carbon fiber trunk offers the most value when lower panel mass or a complete exposed-carbon rear deck already supports the build direction. Owners seeking one restrained carbon accent may find that a trunk spoiler achieves the intended visual change with less installation work. Track and Performance Builds A carbon fiber trunk fits naturally into a track or performance build that already includes a planned weight-reduction program. Its measured saving can contribute to a larger total alongside lighter seats, wheels, exhaust components, or other exterior panels. Street-performance builds may place equal value on visual continuity. A carbon trunk can connect a carbon fiber hood, rear diffuser, spoiler, and related exterior parts into a more cohesive carbon package. Street and Show Builds A full exposed-carbon rear deck creates a stronger visual change than a spoiler and gives the rear profile a more complete material transition. This direction suits street and show builds where finish quality, panel alignment, and integration with the surrounding body lines carry as much importance as the scale reading. Regular road use places additional emphasis on locking, weather sealing, lighting, camera operation, and controlled opening. A well-fitted trunk should preserve these functions while supporting the intended exterior design. Visual-Only Builds A trunk spoiler provides a more restrained option when the goal is a single carbon accent. It retains the OEM lid, hinges, latch, wiring, interior trim, and original weather-strip relationship. The reduced installation scope also makes it easier to return the vehicle to its factory appearance. This direction can work well for an OEM+ build that needs a subtle rear detail instead of a complete exposed-carbon deck. What Defines the Right Carbon Fiber Trunk Setup? The exact vehicle application, panel construction, transferred OEM components, opening assistance, and installation requirements determine how well the carbon trunk fits the vehicle and functions in regular use. Exact Vehicle Fitment Correct fitment depends on the vehicle’s model year, body style, and facelift status. Sedan, coupe, and touring versions can use different rear openings even when they share the same model badge. Factory equipment also affects compatibility. A camera, power-opening system, trunk-mounted brake light, exterior release switch, or other lid-mounted feature may require a dedicated mounting provision. The model-specific product page defines the complete vehicle application and supported equipment. These details establish the basis of the installation plan. Panel Construction and Weight Data The product specification should identify whether the trunk is a complete replacement panel with both outer and inner structures. Its construction may include an exposed-carbon outer skin, inner frame, reinforcement, mounting areas, and provisions for the transferred hardware. Any weight figure should identify the measurement configuration. Bare-panel weight, assembled trunk weight, and packaged shipping weight describe different conditions and cannot be compared directly. The most useful measurement records the scale conditions and the hardware included with each lid. Evaluate the trunk through its construction, fitment, transferred components, and like-for-like measured weight. Hardware and Installation Planning Installation planning begins with the factory components that transfer to the carbon trunk while the OEM lid remains available as a reference. Depending on the vehicle, these parts may include the hinges, latch, emergency release, camera, lights, opening button, wiring, weather seal, rubber stops, interior trim, and badges. The opening system forms part of the same installation plan. Factory torsion springs or gas struts may require adjustment when the carbon lid is lighter than the original panel. The product-specific installation information should also identify any drilling, trimming, slotting, or additional hardware. A composite-panel installer can then plan the fitting method and mounting load around the actual trunk construction. Review How to Choose a Carbon Fiber Body Kit when the trunk forms part of a wider exterior program. Consistent construction, finish, fitment, and installation quality help the completed exterior feel cohesive. Is a Carbon Fiber Trunk Worth the Upgrade? A carbon fiber trunk is worth considering when measured weight reduction or a complete exposed-carbon rear deck supports the direction of your build. Track and performance cars gain the most value when the trunk forms part of a wider lightweighting program, while street and show builds may place more emphasis on finish, body-line integration, and a cohesive rear profile. The selected trunk should match the exact vehicle application, with transferred hardware, opening assistance, sealing, and installation planned as one system. RevoZport’s model-specific carbon fiber trunk collection provides a focused starting point for owners who want the completed panel to retain the vehicle’s everyday functions while delivering a stronger carbon exterior. Frequently Asked Questions Is a Carbon Fiber Trunk Lighter Than an OEM Trunk? A carbon fiber trunk is usually lighter, although the saving varies with the factory material, panel construction, and transferred hardware. A like-for-like comparison uses the same scale for both bare lids and matching accessory configurations for the assembled lids. Can a Carbon Fiber Trunk Use the Factory Hinges and Latch? Model-specific carbon trunks normally use the factory hinge and latch locations. Dry fitting and small adjustments at the hinges, latch, and rubber stops help set the panel gaps, surface height, closing force, and seal compression. Do I Need Different Trunk Springs or Struts? The factory springs or struts may remain suitable after adjustment. Lower spring preload or lower-force struts may be needed when the lighter lid rises too quickly, rebounds at full opening, or requires excessive closing force. Will a Carbon Fiber Trunk Leak? A properly aligned carbon trunk should work with the OEM weather strip. Consistent flange contact, correct latch height, adjusted rubber stops, and sealed accessory openings support water resistance. A low-pressure water test provides the final seal assessment. Does a Carbon Fiber Trunk Require Professional Installation? Professional installation is recommended for most complete trunk replacements. The work involves two-person panel handling, dry fitting, OEM component transfer, alignment, electrical testing, opening control, and water testing. Composite experience also helps distribute mounting load correctly.

A vortex generator can work when its size, angle, and position match a known separation area on the car. The small vortex feeds faster air into the boundary layer, helping the flow stay attached as it crosses a curved roof or rear body surface. On a developed setup, this may reduce the rear wake, improve the air reaching a spoiler or wing, or change drag and lift. Useful results depend on the vehicle’s body shape and local airflow; universal fins installed by appearance alone mainly serve as an exterior detail. How Do Vortex Generators Work, and Do They Help? Vortex generators energize the slow-moving boundary layer near the body surface. Positioned ahead of a separation point, they can help the airflow follow the roof or rear glass farther downstream. Boundary-Layer Control The air above a moving car travels quickly, while friction slows the thin layer next tothe paint. This boundary layer loses momentum as it moves rearward, particularly where the roof curves toward the rear glass. Once the layer lacks enough energy to follow the surface, it separates and forms a low-pressure wake. That wake influences pressure drag, rear lift, wind noise, and the quality of the air reaching a spoiler or wing. An automotive vortex generator creates a small streamwise vortex. The rotating flow draws faster air toward the surface, adds momentum to the boundary layer, and can shift the separation point rearward. The device creates a streamwise vortex that changes surface pressure and the airflow delivered to downstream aero components. Any resulting change in lift or downforce comes from this redistribution of airflow. Real-World Aero Effects Mitsubishi Motors tested vortex generators on the Lancer Evolution VIII at 50 m/s, or 180 km/h. Engineers combined force measurements, particle image velocimetry, and CFD to develop the roof-edge layout. The optimized arrangement reduced both the drag coefficient and lift coefficient by 0.006. The tested generators measured 15 to 25 mm high and sat 100 mm ahead of the roof end. Those dimensions belong to the Evolution VIII configuration; a different roof profile requires its own separation location and boundary-layer data. The Mitsubishi Motors Technical Review study, “Research on Aerodynamic Drag Reduction by Vortex Generators”, also shows the tradeoff behind the result. Each generator adds some resistance, while delayed separation may recover more drag downstream. Speed, yaw angle, roof curvature, spacing, orientation, and nearby aero parts can change that balance. Downforce vs drag should be assessed from the complete vehicle response, with a useful net result established through measurable vehicle-level data. Where Can Vortex Generators Work on a Car? The useful position sits just upstream of an existing separation area. A rear roof edge is one possible location, but the correct surface depends on the vehicle’s rear-body shape. Rear-Body Shape On a sedan, airflow travels from the roof across the sloping rear glass toward a separate trunk deck. Mitsubishi used this geometry when developing the Lancer Evolution VIII roof generators. Fastbacks carry a longer slope into the rear deck, so their separation point may sit elsewhere. Hatchbacks and SUVs often end with a sharper rear edge and form a different wake structure. A full-scale wind-tunnel study compared vortex generators on a squareback Ahmed model and a Peugeot 208. Total drag increased on both test shapes. The Ahmed model showed lower base suction, but the real car responded differently; blade-type generators increased base suction, lift, and drag. The Transportation Research Board record for “Comparative Effects of Vortex Generators on Ahmed’s Squareback and Minivan Car Models” shows that a local pressure improvement can coincide with a different total-drag response across complete vehicle shapes. Height, spacing, orientation, surface angle, C-pillar flow, and distance from the separation point must match the vehicle being tested. Each roof profile therefore requires a layout developed around its own separation pattern and local airflow. Airflow Before Rear Aero A spoiler or wing receives the airflow delivered by the roof and rear body. Vortex generators may improve that supply when they delay upstream separation and direct a more energetic stream toward the aero surface. The response still depends on the component’s position. A tall wing may already operate in relatively clean air, while a trunk spoiler works directly within the rear-body flow. The generator and downstream aero should be evaluated as one arrangement. How Should You Choose and Position Vortex Generators? The right approach depends on what you expect the fins to do. A styling-led installation prioritizes shape and alignment, while a functional setup needs evidence of the separation point and the airflow reaching the rear aero. Match the Part to the Build Universal stick-on fins can give a street car a sharper roofline and a familiar motorsport detail. When appearance is the goal, finish quality, consistent spacing, and secure mounting carry more importance than an aerodynamic claim. Fast-road and track builds require a different standard. Vehicle development data, CFD, wind-tunnel results, or repeatable tuft testing should identify the local airflow issue the generators are intended to address. Tuft testing can reveal attached flow, unstable movement, and reverse flow across the roof and rear glass. A fixed camera position or controlled environment provides consistent recording while maintaining appropriate test safety. The wider setup also affects the result. Ride height, diffuser flow, cooling outlets, and rear-wing position may already shape the vehicle’s behavior at speed. Roof-mounted generators should be evaluated with those components in place. Placement and Installation Effective placement sits close enough to the separation area for the vortices to retain their strength. A row mounted too far upstream may lose energy before reaching that point, while a position inside separated flow offers little boundary-layer control. The mounting surface needs enough room for consistent spacing and full adhesive contact. Antennas, roof channels, sunroof travel, panel curvature, and washing access may limit the available position. Temporary mounting and repeatable testing can refine a functional layout before permanent installation. The final position should also account for the height and location of the spoiler or wing receiving the altered airflow. When Does a Vehicle-Specific Aero System Make More Sense? A vehicle-specific aero system becomes the stronger option when the goal extends beyond one local airflow change. High-speed balance depends on the roof, body profile, underfloor, diffuser, spoiler, and wing working in compatible positions. From Local Flow Control to Integrated Aero Vortex generators act within a small area near an existing separation point. An integrated package manages a longer airflow path, beginning at the front of the vehicle and continuing along the sides, underfloor, and rear body. A splitter influences front-axle loading. Side components interact with wheel wake, while a diffuser works with the underfloor. Above the rear body, a spoiler or wing responds to the air delivered by the roof and surrounding surfaces. This difference defines the appropriate scale for each build. A clean row of fins may complete an appearance-led street car. A performance project needs components developed around the vehicle’s body shape, mounting points, and intended speed range. RevoZport’s Model-Specific Aero Path RevoZport offers model-specific splitters, diffusers, rear wings, spoilers, and broader aero programs for selected BMW, Audi, Tesla, and Corvette applications. Its Race Series brings CFD analysis and real-world validation into the development of coordinated vehicle packages. A refined street build may begin with car spoilers shaped around the vehicle’s rear profile. Track-oriented projects can take a broader approach through Race or Aero Programs that align the front, side, underbody, and rear components. The selected path should reflect the exact model year, body style, road use, and track plan. The completed setup should preserve consistent fitment and a coherent aerodynamic direction across the car. Are Vortex Generators Effective on Cars? Vortex generators earn their place on a performance car when they target a measured separation area and improve the airflow reaching the rear body or aero components. Body shape, speed, placement, orientation, and the downstream hardware determine the final result. For an appearance-led build, a clean layout and secure installation may be enough. Functional development calls for vehicle-specific airflow evidence and repeatable testing. When the project requires broader high-speed balance, RevoZport’s model-specific rear aero and complete programs provide a more integrated route than a local roof treatment. Frequently Asked Questions Do Vortex Generators Increase Downforce? They can influence lift or downforce by changing flow attachment and surface pressure. The result depends on the body shape and any downstream wing or spoiler, making the change in downforce specific to the vehicle and tested configuration. Can Vortex Generators Improve Fuel Economy? A tested configuration may reduce aerodynamic drag and fuel use at sustained speed. The VG also creates its own resistance, so an incorrect layout can cancel the gain or increase drag. Reliable fuel-economy claims need controlled testing. Are Vortex Generators Only for Hatchbacks? No. Manufacturers and engineers have used them on sedans, hatchbacks, squareback vehicles, race cars, and commercial vehicles. The relevant factor is the local separation pattern, not the body-style label alone. Can I Use Vortex Generators With a Rear Spoiler? Yes, when the airflow created by the generators suits the spoiler’s location and function. Both components should be evaluated as one system because the generators can change the speed, direction, and turbulence level of the air reaching the spoiler.

Forged carbon uses short, chopped fibers that settle into an irregular pattern. Woven automotive carbon fiber uses continuous strands arranged as fabric or directional plies. That difference changes how a part can be shaped and how its stiffness can be controlled. Continuous laminates work well across thin panels and defined load paths. Forged carbon fiber is better suited to compact molded geometry, changing wall sections, and designs that use its fragmented appearance as a visible feature. The finished component still depends on its resin system, fiber content, thickness, reinforcement, curing quality, and mounting design. This guide compares forged carbon vs carbon fiber through the properties that affect real car parts: structure, weight, durability, finish, production, and component shape. What Is the Difference Between Forged Carbon and Carbon Fiber? Forged carbon and woven carbon fiber differ mainly in fiber length and arrangement. Both are carbon-fiber-reinforced composites, but they reach the finished shape through different material architectures. Woven and unidirectional laminates use continuous strands. Engineers can turn each ply to place stiffness along the expected load paths, combine several directions, and maintain fiber continuity across a large panel. A 2×2 twill weave creates the familiar diagonal pattern, while plain weave produces a tighter checkerboard surface. Structural forged carbon uses shorter fiber pieces mixed with resin. Heat and pressure consolidate the material inside a matched mold, allowing it to fill compound curves, ribs, and changing wall sections. The distributed fragments create its irregular, marble-like appearance. In composite manufacturing, forged describes short carbon fibers combined with a resin system and formed through compression molding. Lamborghini helped establish the term through its Forged Composites technology. Comparison Point Structural Forged Carbon Woven or Directional Carbon Fiber Fiber Architecture Short, discontinuous pieces Continuous woven fabric or directional plies Fiber Direction Distributed through the molded section Positioned through ply orientation Visible Pattern Irregular and fragmented Repeating twill, plain, or directional lines Typical Forming Route Matched-mold compression Layup, prepreg curing, autoclave, or infusion Geometry Compound forms, ribs, and changing thickness Thin shells, broad panels, and defined load paths Main Engineering Advantage Shape integration Directional stiffness and fiber continuity RevoZport’s guide to How Is Carbon Fiber Made follows the production chain before woven fabric or chopped composite reaches a component mold.  How Do Forged Carbon and Woven Carbon Fiber Behave Differently? Fiber length, orientation, resin content, wall thickness, tooling, curing, and reinforcement determine how forged carbon fiber and woven laminates behave in automotive use. The visible pattern reflects the underlying material architecture. Strength Follows the Fiber Path Continuous-fiber laminates let engineers place stiffness where the component needs it. Plies can follow the main load path, cross at selected angles, and reinforce mounting points without adding the same thickness across the entire part. That control suits broad, thin components such as hoods, splitter planes, wings, and exterior shells. Continuous strands carry load across the panel and help it resist unwanted bending. Structural forged carbon distributes shorter fiber pieces throughout a molded section. This architecture works well with compound geometry, ribs, local thickness changes, and loads that enter from several directions. Its performance depends on fiber length, distribution, resin, pressure, and the design of the molded form. Strength therefore comes from the complete laminate and component design. A continuous-fiber part can deliver higher directional stiffness along an engineered load path, while a forged composite can integrate reinforcement into a compact and complex shape. Lamborghini’s Forged Composites technical data describes short fibers combined with resin and formed into complex molded shapes. This architecture suits compact geometry, integrated ribs, changing wall sections, and efficient molding cycles. Continuous-fiber prepreg follows a different engineering approach, with fiber orientation planned around the component’s primary load paths. ASTM D3039 tensile values come from standardized test coupons. On a finished automotive component, laminate thickness, fiber content and orientation, local reinforcement, mounting design, and load direction determine how those material properties translate into service. Finished Weight Comes From the Whole Part Resin content, wall thickness, internal ribs, bonded reinforcement, brackets, clear coat, and dimensions all contribute to finished weight. A thin woven prepreg panel may weigh less than a thicker molded forged component. A forged design can also combine several pieces and local reinforcements into one form, reducing joints or separate hardware. Equivalent parts should be compared in an installation-ready condition, including the required brackets and reinforcement and using the same weighing method for both components. Long-term durability follows the conditions each area must handle. Clear coat protects the visible surface from UV exposure and weather, while the laminate and mounting points manage stone impacts, vibration, heat cycles, fatigue, and operating loads. Continuous fibers transfer load efficiently across large panels. Short fibers accommodate compact molded features and changing wall sections. On a road car, finish protection and secure fitment strongly influence long-term condition. Track aero also needs enough rigidity and mounting support to retain its shape under repeated load. The Pattern Changes the Character Forged carbon has a scattered, marble-like pattern made from overlapping fragments. Its appearance changes across the surface, giving compact parts and close-view details a more individual character. Woven carbon has a repeating structure. A 2×2 twill weave produces flowing diagonal lines, while plain weave creates a tighter checkerboard pattern. Aligned weave across adjoining exterior panels can make a complete program look precise and consistent. Gloss and matte are clear-coat surface treatments that can be applied over either a woven pattern or a forged-style pattern without changing the underlying fiber architecture. Forged-carbon terminology can describe either the laminate architecture or the visible finish. Structural forged carbon consolidates short or chopped fibers into the complete molded laminate. A forged-carbon finish gives a component the fragmented visual pattern while retaining its specified base construction. A forged-style appearance describes the visible treatment without defining the laminate beneath it. A complete product specification identifies both the load-bearing construction and the selected surface finish. Production Method Shapes the Cost Tooling, production volume, component size, geometry, finishing work, and surface-quality requirements shape the final cost of both architectures. Compression molding requires matched tooling and controlled pressure. Once the tooling is established, it can form complex shapes efficiently and reduce some of the manual work associated with individual ply placement. Woven carbon production has a different labor profile. Technicians cut and position the plies, align the visible weave, manage overlaps, consolidate the laminate, cure it, trim the edges, and finish the exposed surface. Large components also demand more material, mold area, and curing capacity. A small molded trim and a broad exposed-carbon hood face very different production challenges. Complex curves, custom colors, low production quantities, visible weave alignment, and clear-coat preparation can increase the cost of either option. Fiber architecture and resin preparation describe different parts of the composite system. RevoZport’s guide to dry carbon vs wet carbon develops this comparison through material preparation, resin control, and curing. Where Does Each Carbon Structure Make Sense on a Car? Component geometry, load path, mounting loads, surface area, and the desired finish provide the starting point for selecting the material architecture. Broad Panels Benefit from Continuous Fibers  Hoods, splitter planes, side skirts, diffusers, wing elements, and exterior shells often rely on continuous-fiber layups. Controlled fiber orientation gives these broad, thin surfaces the stiffness, edge definition, and stable mounting zones their geometry demands. The BMW XM G09 Carbon Fiber Hood applies this approach through autoclave-cured prepreg dry carbon, Toray 3×3 weave, functional venting, and a UV-resistant clear coat. Where selected, its forged-carbon option changes the visible surface pattern while the specified prepreg construction supports the large replacement panel. The same engineering priorities apply to splitters and car spoilers and wings. Geometry creates the intended airflow behavior, while laminate rigidity, mounting, angle, and vehicle integration help the component hold that geometry in use. Large exterior parts can also combine architectures. Continuous plies, molded forged sections, local reinforcement, and hybrid laminates may share one component when the engineering specification calls for different behavior in different areas. Compact Geometry Rewards Shape Freedom Compound curves, molded ribs, thickness changes, deep recesses, and tight corners are natural candidates for a molded short-fiber structure. This makes structural forged carbon relevant to compact grilles, vents, mirror components, control details, interior trim, and other parts where several features can be formed together. Its fragmented pattern also becomes more noticeable on pieces viewed at close range. An effective material specification separates structural construction from surface treatment. For a load-bearing molded component, the specification identifies the fiber form, resin system, forming process, reinforcement, and mounting design. The Audi RS7 C8 Street Program uses prepreg dry carbon across the front, sides, and rear to maintain a consistent material direction throughout the package. Its forged option replaces the regular woven visual rhythm with a more irregular, fragmented surface pattern. Coloured carbon, gloss black basalt, and matt finishes offer further ways to shape the RS7’s exterior character. Road and Track Priorities Cross Both Architectures Road use puts fitment, finish consistency, UV protection, weather exposure, clearance, and service access near the front of the decision. A forged pattern can give compact accents more visual variation, while a continuous weave can link broad exterior panels through one ordered surface. Track use emphasizes stiffness, load direction, mounting security, aerodynamic balance, repeatable construction, and test evidence. Either architecture can contribute when the component design supports those demands. Component Scenario Design Priority Likely Direction Broad, Thin Aero Surface Directional stiffness and low deflection Continuous-fiber laminate Compact Molded Detail Integrated geometry and changing thickness Structural forged composite Visible Exterior Accent Fitment, UV finish, and pattern Product-specific base with selected finish Load-Bearing Track Aero Rigidity, mounting, and aero validation Component-specific laminate and reinforcement Interior Detail Shape, touch wear, and appearance Forged or woven finish What Should a Carbon Part Specification Tell You? A useful carbon-part specification separates the base construction from the visible finish. A continuous-fiber laminate uses woven or directional plies as its main structure. A structural forged composite consolidates short fibers and resin into the complete molded form, while combined construction places different fiber formats or local reinforcement where the geometry and load path require them. For forged carbon fiber, this distinction shows whether the fragmented pattern belongs to the complete laminate, a visible surface layer, or an optional finish over a prepreg base. Photography communicates pattern and gloss; the material, manufacturing, and finish descriptions explain the structure beneath that surface. Vehicle Fitment and Mounting Material selection also needs to follow the vehicle interface. Model, production year, body style, trim, bumper design, and mounting position determine how the component meets the car. Replacement hoods depend on consistent panel gaps, latch operation, and alignment with adjoining factory surfaces. Splitters, diffusers, and wings add mounting supports, brackets, underbody connections, and reinforcement suited to their aerodynamic loads. RevoZport’s carbon fiber car parts are built around Toray prepreg, autoclave curing, and model-specific geometry. The component specification then connects that construction to its vehicle application, mounting layout, and available surface finish. Matching these details to the part’s road or track role keeps the material choice connected to its actual function on the car. Frequently Asked Questions Is Forged Carbon Real Carbon Fiber? Yes. Structural forged carbon uses genuine short carbon fibers within a resin matrix. The product specification distinguishes a complete chopped-fiber laminate from a forged-style surface or optional finish. Is Forged Carbon the Same as Dry Carbon? No. The terms describe different parts of composite construction. Forged carbon refers to fiber architecture and molding, while dry carbon usually refers to prepreg material and controlled curing. A prepreg component can also be offered with a forged-carbon appearance. Can Forged Carbon Fiber Be Repaired? Repair depends on the damage depth, laminate, location, and function of the component. Clear-coat wear needs a different repair from a crack near a fastener, bracket, or load-bearing section. Structural and mounting-point damage should be inspected by a composite repair specialist. Can Forged Carbon Have a Gloss or Matte Finish? Yes. Gloss and matte describe the outer clear-coat appearance. Either can be applied over a forged-carbon pattern without changing the fiber architecture beneath it. Which Carbon Structure and Finish Fit the Part? Material selection starts with the component’s geometry and load path. Structural forged carbon suits compact molded shapes, integrated ribs, changing wall sections, and components that use its fragmented pattern as part of the design. Continuous woven or directional carbon fiber suits broad, thin panels that depend on controlled stiffness across defined load paths. Within the RevoZport range, a forged option typically applies the fragmented visual pattern to a component with specified prepreg base construction. The prepreg laminate addresses the part’s structural and mounting requirements, while the selected finish establishes its visual direction.

合适的奥迪RS7 C8车身套件取决于您想要改进的Sportback区域。前唇能使车头看起来更低、更锐利。侧裙将这条线延伸至车身侧面，而扩散器或扰流板则在车尾增添更多造型感。一套完整的套件能在所有三个区域实现最统一的改变。 本指南将从视觉效果、安装匹配度、安装范围和构建方向等方面比较每个选项，帮助您选择适合您奥迪RS7 C8的改装方案。 奥迪RS7 C8车身套件应该从何开始？ 前唇带来一次集中的外观改变。三件式下包围建立了一个平衡的街头风格设置，而完整的套件则形成了一个从前到后的碳纤维设计。 每种途径都会产生不同的视觉效果。对于分阶段安装，第一个组件应支持预期的最终构建方向。 一步到位的起点 对于一辆原厂的奥迪RS7 C8来说，前唇是最清晰的单部件起点。它能为下保险杠提供更坚实的基础，并在车辆前端增加可见的碳纤维元素。 RS7已经拥有宽大的单框格栅、大型外侧进气口和细长的大灯。定制的前唇遵循这一现有宽度，并加强了原厂保险杠的下边缘。 这个方向适合那些只进行适度改装、保留标准侧裙和后车身部件的车辆。它还为安装人员提供了早期检查离地间隙、编织方向、清漆质量以及碳纤维饰面与原厂车漆搭配效果的机会。 前唇的深度应遵循最终的外观方案。内敛的造型自然适合其他部分保持原厂的汽车，而更深的前部处理则需要相关的侧面和后部组件来配合。 均衡的街头风格设置 前唇、侧裙和后扩散器为公路取向的RS7打造了一个平衡的下部套件。它们共同形成了从前保险杠、沿着Sportback侧面轮廓，再到后排气区域的连续线条。 前唇确定了车头较低的位置。侧裙将这条线条延伸至轴距，而扩散器则在后保险杠下方增加了深度。这使得车辆从每个主要视角都更具线条感，同时保留了原厂的车顶线、肩线和尾门。 这种设置也保留了引擎盖和原厂格栅，适合那些希望通过下车身集中碳纤维元素，从而拥有协调外观的车主。 最初的组件决定了编织方向、光泽度和可见碳纤维的色调。后续的追加部件应遵循相同的表面处理规格，以便下部套件看起来像一个整体设计。 完整碳纤维套件 一套完整的奥迪RS7 C8车身套件适合那些以碳纤维元素贯穿车头至车尾的改装项目。前唇、格栅、风刀、引擎盖、侧裙、扩散器和尾箱扰流板可以作为一个整体外部系统来规划。 一个精心设计的套件仍然需要清晰的层次感。车头建立宽度和中央结构，侧裙创造连贯性，而车尾部件则完善了溜背轮廓。 完整的套件还支持饰面协调。配对的部件可以一起检查，而编织方向、碳纤维色调和清漆质量可以在整套组件中进行比较。 完整套件的安装规划包括引擎盖对齐、锁扣接合、传感器间隙、饰件转移、扰流板移动、面板准备和车间时间。这些要求与碳纤维部件一起构成了项目范围的一部分。 碳纤维空气动力学套件应如何契合RS7 C8的造型？ 碳纤维空气动力学套件应通过遵循原厂表面的造型，来强化奥迪RS7 C8的宽度、下车身线条和溜背轮廓。 RS7结合了低矮、宽大的Sportback车身，突出的轮拱和流畅的后部轮廓。宽大的单框格栅界定了前部，而车尾则汇集了扰流板线条、贯穿式灯光设计和下部扩散器区域。这些关系为集成碳纤维方案奠定了基础。 前端层次 RS7的前部受益于下边缘和中心更强的定义。前唇为保险杠提供了更坚实的基础，而格栅和风刀则在单框设计周围增加了结构感。 碳纤维引擎盖覆盖了更大的可见区域，因此其形状比小型装饰部件更具影响力。引擎盖应遵循现有车身线条，并与挡泥板、保险杠和挡风玻璃区域保持受控的间隙。 RevoZport的RS7 Street Program将前唇、格栅、风刀和引擎盖视为一个相关联的整体。它们共同加强了下保险杠和中央格栅结构，同时保留了单框标识、大灯形状和原厂车身宽度。 侧面至车尾的连贯性 RS7修长的溜背造型需要前后连贯的过渡。侧裙将下边缘延伸至轴距，使Sportback在原厂肩线下方呈现出更稳重的姿态。 在车尾，后扩散器在排气区域周围增加深度，并为下保险杠提供了更清晰的框架。其外边缘应通过相似的深度和表面方向与侧裙处理相衔接。 更换后的尾箱扰流板完善了上部车尾线条。RevoZport的RS7部件遵循原厂尾箱扰流板的布局和溜背轮廓，其安装位置和间隙在原厂扰流板的操作范围内保持运动自由。 完整设计与零散部件 一个完整的设计在车辆周围重复了相关的线条、深度和表面处理。前唇、侧裙、扩散器和扰流板从主要的前、侧、后视角看应该相互连接。 材料的一致性只是这种关系的一部分。边缘轮廓、转角形状、部件深度、编织方向和清漆外观也影响着成品车是否看起来像一个整体设计。 针对特定车型的方案有助于保持车头、门槛线和溜背车尾之间的连贯关系，同时保留RS7原有的车顶线、肩线和尾门弧度。 奥迪RS7 C8车身套件应如何与车辆匹配？ 奥迪RS7 C8车身套件应遵循精确的车辆规格、材料表面处理、安装方法和安装范围。 车型年份、市场规格、原厂设备和之前的车身改装都会影响部件间隙、安装点、面板对齐和安装规划。 车辆与设备匹配 RevoZport的RS7 C8 Street Program是为2019年及以后的奥迪RS7 C8 Sportback开发的。该方案涵盖了前唇、格栅、风刀、引擎盖、侧裙、后扩散器和尾箱扰流板。 驻车传感器、摄像头、驾驶辅助设备、装饰套件、排气配置和之前的车身维修都构成匹配方案的一部分。前部组件需要围绕传感器和相邻饰件留出间隙，而引擎盖必须与原厂锁扣接合，并在挡泥板、保险杠和挡风玻璃区域周围自由移动。 更换后的尾箱扰流板遵循原厂尾箱扰流板的布局和溜背式车尾轮廓。正确的匹配可确保其安装位置、间隙和在原厂扰流板操作范围内的移动自由。在分阶段或混合组件的改装中，侧裙和扩散器的边缘位置决定了两个组件在后四分之一处如何衔接并延续相同的下车身线条。 材料与饰面匹配 RS7方案采用车型专用预浸料干碳纤维结构、受控固化和汽车级外部饰面。Toray预浸料碳纤维构成了RevoZport的通用材料标准。 随着组件尺寸的增大，饰面的一致性变得更加明显。碳纤维引擎盖覆盖了宽阔的表面，因此其编织方向、树脂外观、清漆深度、光泽度和边缘覆盖应与较小的前部、侧面和后部部件相匹配。 将成对的部件放在一起进行比较，并在已安装碳纤维部件旁检查分阶段添加的部件。自然光可以更容易地识别编织方向、光泽度和清漆色调的差异。 安装范围 建议对外部碳纤维部件进行专业安装。每个部件在最终固定、钻孔、涂胶或装饰件转移之前，都应进行干式试装。安装质量取决于安装孔、卡扣和支架的对齐、一致的面板间隙、平整度和左右对称性。引擎盖需要可靠的锁扣接合和不受限制的开启动作，并确保传感器、排气口、摄像头和周围饰件有足够的间隙。 胶粘式部件需要清洁的表面准备和受控的定位。机械固定部件在均匀拧紧紧固件之前，应自然地贴合接触点。 漆面保护膜（PPF）应纳入安装流程。当PPF覆盖喷漆面板和碳纤维部件时，其边缘应遵循安装点、面板接缝和可拆卸部件。 RevoZport 如何打造一套完整的 RS7 C8 碳纤维空气动力学系统？ RevoZport 将 RS7 C8 视为一个相互连接的前、侧和后部整体。Street Program 包括前唇、格栅、风刀、引擎盖、侧裙、后扩散器和替换尾箱扰流板。 每个组件都有其独特的作用，而整个方案遵循相同的车型特定线条、材料饰面和视觉方向。 RS7 特有的设计重点 在前部，该方案加强了保险杠的下边缘，并为围绕单框格栅的中心提供了更多结构。风刀在外部区域增加了造型感，而引擎盖则将碳纤维饰面扩展到更大的表面。 沿侧面轮廓，侧裙在原厂肩线下方建立了一条连续的下部线条。这使得Sportback在保持其溜背式车顶线的同时，呈现出更沉稳的姿态。 后扩散器在排气区域增加了深度，而替换式尾箱扰流板则完成了车尾的上边缘。其位置遵循RS7原厂尾箱扰流板的布局和尾门弧度。 单框格栅、溜背车顶、肩线和尾门仍然是奥迪的主导元素。碳纤维组件在这些原始比例内加强了下前保险杠、侧裙线和后部造型。 碳纤维结构和安装检查 RS7 组件采用预浸料干碳纤维结构、受控固化和汽车外饰面处理。每个部件在安装前都应进行视觉和尺寸检查。 安装点和面板位置是安装检查的基础。孔洞、卡扣和支架应自然对齐，同时面板间隙、平整度和左右对称性应保持一致。 引擎盖需要进行全面的运动评估，因为它与铰链、锁扣、翼子板、保险杠和挡风玻璃区域相互作用。最终调整应确保锁扣接合、开启运动和周围间隙。 可见的碳纤维应保持一致的编织方向和成对组件之间的对称性。干净的边缘、最小的编织变形以及没有针孔、干燥区域和大量树脂堆积的表面，有助于获得精致的饰面。 清漆应呈现均匀的光泽、完整的边缘覆盖和干净的表面，没有流挂、鱼眼、过度橘皮或灰尘夹杂。附着力、耐候性和抗黄变性能也影响着长期外部饰面。 完整套件或单独组件 当从前到后的外部方向已经确定时，完整的奥迪RS7车身套件提供了最一致的路径。 单独的组件适合内敛的改装或分阶段的项目。前唇创造了最强烈的独立变化，而前唇、侧裙和后扩散器在不更换格栅或引擎盖的情况下，形成了平衡的下部套件。 对于分阶段的改装，最初的组件决定了编织样式、方向、光泽度和表面处理规格。提早了解最终的组件组合有助于后续的每一次添加都延续相同的视觉方向。 您应该选择哪种奥迪RS7 C8车身套件配置？ 预期的最终造型和安装范围决定了最适合的奥迪RS7 C8车身套件配置。 前唇适合需要更强车头造型感的原厂RS7。增加侧裙和后扩散器可以创造一个具有连续下部线条的平衡街头设置。完整的Street Program则适合围绕一个贯穿车头、侧面和溜背车尾的碳纤维方向进行的项目。 最终配置应反映精确的车辆规格、饰面、安装方法、车轮位置和尾箱扰流板的运动。一个精心规划的结果既能保留RS7的单框标识、车顶线、肩线和尾门弧度，又能赋予下车身和车尾轮廓更强的造型感。 常见问题 RS7 C8碳纤维车身套件需要贴PPF吗？ 不一定。PPF是可选的，但它可以帮助保护面向前方的碳纤维部件免受碎石和表面磨损。 前唇、风刀、格栅区域和引擎盖比尾箱扰流板更容易受到路面碎屑的影响。贴膜安装应在完成安装匹配和表面质量评估后进行，其边缘应围绕安装点、面板接缝和可拆卸部件进行规划。 如何确保分阶段改装中碳纤维饰面的一致性？ 最初的组件决定了编织样式、编织方向、光泽度和整个改装的饰面参考。 每个后续添加的部件在安装前都应在自然光下与已安装的碳纤维部件进行比较。当两个碳纤维组件沿着相同的车身线条相接时，饰面的一致性尤为重要。 车轮应该在车身套件之前还是之后规划？ 车轮和奥迪RS7车身套件应作为一个整体系统进行规划。车轮直径、偏移量、轮胎扁平比、悬挂高度和下部空气动力学套件都影响着车辆的最终姿态。 安装后的车轮位置应强化前唇、侧裙和后扩散器之间的视觉关系，从而形成连续的下车身轮廓。 车身套件的单个部件在损坏后可以更换吗？ 可以。如果能找到匹配的结构和饰面，通常可以更换单个部件。 更换计划从支架、安装点、喷漆面板和相邻碳纤维开始。试安装可以确定更换件的编织方向、光泽度、面板对齐和边缘位置与汽车上其余部件的关系。

正确的 C7 Corvette 宽体套件首先要从已经安装到您的汽车上的车身开始。Stingray 改装和原厂宽体空气动力学套件需要不同的面板、车轮位置、间隙和安装计划。 Stingray 和 Z51 车型采用较窄的原厂车身。Grand Sport、Z06 和 ZR1 车型采用原厂宽体车身，但它们的保险杠、引擎盖、后围板、冷却布局和空气动力学组件可能因车型而异。 本指南解释了 C7 车身配置如何影响空气动力学组件的安装、车轮间隙和安装。它还涵盖了完整的和分阶段的空气动力学设置、车轮选择所需的测量以及街道、赛道日和竞赛改装之间的差异。 您的 C7 Corvette 已经是原厂宽体了吗？ 如果 C7 Corvette 是 Grand Sport、Z06 或 ZR1，那么它就具有原厂宽体车身。Stingray 和 Stingray Z51 车型采用较窄的原厂车身。 起始车身配置会影响挡泥板覆盖范围、保险杠接口、车轮位置、内衬、冷却路径和后车身。在比较 C7 Corvette 车身套件之前，请确定确切的车型和车身样式。 C7 型号 原厂车身类型 RevoZport 公布的适配 Z06 Coupe 原厂宽体 前挡泥板、引擎盖、侧裙和后扩散器 ZR1 Coupe 原厂宽体 前挡泥板、引擎盖、侧裙和后扩散器 对于 Stingray、Z51 和 Grand Sport 车型，组件的安装也因轿跑车或敞篷车身样式以及车辆的原厂保险杠配置而异。车辆识别号 (VIN)、饰件、车身样式和保险杠接口决定了每个选定部件如何与周围车身配合。 Z51 是安装在较窄的 Stingray 车身上的性能套件。C7 Grand Sport 使用更宽的后挡泥板和源自 Z06 的外部特征，而 Z06 和 ZR1 则拥有自己的引擎盖、保险杠、冷却和空气动力学配置。 RevoZport 前挡泥板、引擎盖、侧裙和后扩散器专为 C7 Z06 Coupe 和 C7 ZR1 Coupe 配置。对于前扰流板和后扰流板，在规划完整的 C7 Corvette 宽体套件时，请将组件与车型年份、饰件、轿跑车或敞篷车身样式、原厂保险杠和相邻车身匹配。 完整的适配记录汇集了车辆识别号 (VIN)、饰件、轿跑车或敞篷车身样式、原厂保险杠、引擎盖类型和清晰的汽车照片。这些详细信息将选定的面板与其相邻组件连接起来，并支持一个连贯的最终设置。 完整的 C7 Corvette 宽体空气动力学系统如何工作？ 完整的 C7 Corvette 宽体空气动力学系统将从前扰流板到后扰流板的气流作为一个协调的整体进行管理。每个组件都会改变到达汽车下一部分的气流。 RevoZport 的 Corvette C7 碳纤维配置器将前扰流板、双段式后扰流板、扩散器、+20 毫米前挡泥板、通风引擎盖和侧裙结合成一个 CFD 开发的空气动力学套件。在这种完整配置下，该系统在 180 英里/小时的速度下可产生超过 3,000 磅的 CFD 预测下压力。 前后组件围绕一个明确的空气动力学平衡协同工作。行驶高度、倾角、翼角、车身底部气流和悬架运动都会影响该载荷的产生和在汽车上的分布方式，从而使底盘设置成为完整 C7 宽体系统不可或缺的一部分。 前扰流板、引擎盖和挡泥板 前扰流板、引擎盖和挡泥板管理前端压力、冷却气流和轮拱气流，然后这些气流到达汽车中部。 前扰流板将进入的气流分为上部车身和底部。RevoZport 的设计使用大型隧道加速鼻子下方的空气，并支撑扰流板下方的低压区域。 可拆卸的端板增加了拖车间隙、运输、维修和不同赛道配置的实用灵活性。在改变端板设置后重新检查前后空气动力学平衡，因为端板会影响空气离开扰流板边缘的方式。 通风引擎盖为散热器排放的空气提供了一条预定的出路。其中央通风口有助于冷却气流通过引擎盖排出，而不是在前端车身下方增加压力。 通风前挡泥板为旋转轮胎周围的空气提供了一条抽出路径。这有助于轮拱压力管理，而内衬有助于控制碎片、水、热量和轮胎周围的气流。 C7 宽体套件使用 +20 毫米前挡泥板来建立其更宽的前轮廓。围绕安装的面板位置构建车轮套件，测量内部悬架间隙、外部挡泥板间隙、全锁止运动和可用悬架行程，然后设置车轮宽度、偏置和轮胎断面宽度。使用车轮模板或物理测试拟合验证最终位置。 中置扰流板和侧裙 中置扰流板和侧裙将前端气流管理与后扩散器连接起来，在空气动力学系统的中心创造一条连续的路径。 RevoZport 的中置扰流板使用 NACA 管道和车身底部纵梁。管道将高压空气输送到冷却区域，而纵梁则将一部分车身底部气流引导离开扩散器的工作路径。这有助于在更靠后的位置实现更清洁、更稳定的气流。 侧裙有助于限制高压空气从侧面进入车身底部。它们的垂直叶片还将空气向外引导，以管理车身底部和轮胎尾流周围的压力。 该中心部分取决于一致的几何形状。行驶高度、倾角、悬架运动和车身底部面板位置都会影响到达扩散器的气流。独立的中置扰流板仍然可以影响冷却和车身底部气流，而公布的完整系统 CFD 数据适用于协调的空气动力学配置。 后扩散器和尾翼 后扩散器和尾翼通过不同的气流路径产生空气动力载荷。它们的组合平衡比任何一个组件的峰值数据单独使用都更有用。 后扩散器 在车身底部气流从车后排出时对其进行扩展。其轮廓和纵梁有助于保持附着流，管理来自后轮胎的横向流，并支撑后地板下方的低压区域。 RevoZport 有意控制扩散器尺寸，以保持其与尾翼尾流的相互作用。扩散器的轮廓、扩散角度和纵梁布置必须与完整的后空气动力学配置协同工作。 双段式尾翼在离开车顶和后掀背车的气流中工作。改变第二段的迎角可调节后载荷和阻力。更陡峭的设置可以增加后载荷，同时将空气动力学平衡向后移动。 可用的赛道设置使前后轴协同工作。将尾翼调整与前空气动力学匹配，然后通过驾驶员反馈、轮胎温度、行驶高度数据和可重复的圈速比较来评估结果。 C7 宽体空气动力学组件可以单独安装吗？ 选定的 C7 宽体组件可以分阶段安装。通风引擎盖、前挡泥板或侧裙可以作为单独的升级，与相邻的原厂车身匹配。前扰流板、中置扰流板、后扩散器和后扰流板对气流和空气动力学平衡有更强的影响，因此它们的安装位置和与整个套件的关系应从一开始就进行规划。 分阶段构建在每个早期组件支持预期最终配置时效果最佳。引擎盖和挡泥板的安装侧重于面板对齐、冷却路径、车轮间隙和相邻饰件。扰流板和侧裙更依赖于行驶高度和车身底部连接，而扩散器和后扰流板则将后气流和结构安装纳入设置。 街道专用设置 对于公路行驶的 C7 Corvette 宽体车身，优先考虑可用的离地间隙、牢固的安装、维修通道以及易于检查的组件。扰流板应清除常见的车道和坡道，同时千斤顶支点和日常维修区域保持可触及。引擎盖和挡泥板通风口还需要管理热量、雨水和道路碎片，而不会损害周围的组件。 中等的前后套件通常比一个激进配置的组件提供更好的道路可用性。RevoZport 关于 街道空气动力学与赛道空气动力学的指南探讨了这些优先事项在日常驾驶和偶尔赛道使用之间的变化。 赛道日设置 赛道专用的 C7 需要协调的前后空气动力学、开放的冷却路径、支持的扰流板安装、兼容的挡泥板衬里以及后扰流板底座下方的结构加固。翼角、行驶高度、轮胎压力和轮胎温度在设置开发过程中提供了有用的参考点。 在测试期间一次调整一个变量。这使得平衡的变化更容易追踪，并为驾驶员提供了以后会话的可重复基线。 竞赛设置 竞赛使用增加了关于扰流板突出量、翼尺寸、行驶高度和安装位置的规则限制。在制造之前确定这些尺寸，并使外露的端板、下部空气动力学部分和安装硬件在赛道边维修时可触及。 在每次设置更改后记录翼位置、行驶高度、对齐、轮胎数据和驾驶员反馈。一致的日志将空气动力学调整与汽车在赛道上的行为联系起来。 哪些车轮和轮胎适合宽体 C7 Corvette？ 宽体 C7 Corvette 的车轮和轮胎适配必须来自对实际汽车的物理测量。根据当前车轮位置计算新设置，然后使用模板或物理测试拟合进行验证。 制动间隙、悬架位置、挡泥板位置、对齐、轮胎尺寸和预期用途在 C7 改装之间可能有所不同。一种车轮宽度、偏置和轮胎尺寸组合不能代表每种配置。 更宽前挡泥板的效果 更宽的前挡泥板增加了外部轮胎覆盖空间。悬架、制动卡钳、控制臂和衬里旁边的内部间隙仍然是单独的测量。 车轮偏置控制轮辋相对于轮毂的位置。较低的偏置通常会将车轮向外移动，而较高的偏置会将其向内移动。轮辋宽度和背间距会影响内部和外部车轮位置。 +20 毫米的指定表示前挡泥板规格。最终车轮偏置应根据当前车轮位置和安装的挡泥板位置计算，然后通过车轮模板或物理测试拟合进行验证。 分别计算前部和后部适配。前挡泥板宽度不决定所需的后轮位置，即使胎壁尺寸相同，实际轮胎断面宽度也可能因品牌而异。 所需车轮测量 从已安装在汽车上的车轮开始。记录它们的直径、宽度、偏置、背间距、安装的轮胎宽度、行驶高度和对齐。这些数字为您计算建议设置将如何向内和向外移动提供了可靠的基线。 车轮适配集中在三个方面： 内部间隙：车轮和轮胎套件需要悬架、制动卡钳、控制臂、衬里和制动软管周围有足够的空间。 外部覆盖：在当前的行驶高度和对齐状态下，根据安装的挡泥板评估轮胎位置。 动态运动：在完全转向锁止和整个可用悬架行程中检查间隙。 使用车轮模板或物理测试拟合完成。在计算中包含任何垫片及其硬件和轮毂接合，以便最终检查代表完整的车轮系统。 您应该如何规划 C7 宽体适配和安装？ 在安装 C7 宽体套件之前，请确认确切的车辆配置、相邻组件接口、车轮位置和建议的安装结构。这种准备有助于完成的汽车保持一致的面板间隙和内聚的空气动力学轮廓。 从车辆识别号 (VIN)、车型年份、饰件和车身样式开始。记录原厂保险杠、引擎盖、后围板、制动套件、悬架、车轮、轮胎和现有空气动力学套件。车轮拱、车身底部、前保险杠和后围板的照片对于以前进行过改装的汽车特别有用。 安装人员在拆卸原厂组件之前还应记录当前的面板间隙、行驶高度、车轮位置和对齐。这些测量为面板对齐和最终间隙检查提供了基线。 安装过程 精细的安装始于检查和干装。在运输状况和包装仍然可以记录的情况下，检查碳纤维编织、透明涂层、边缘、安装点和整体面板形状。 引擎盖和前挡泥板是替换面板。将它们与相邻的保险杠、车门、内衬和侧裙暂时就位。这允许安装人员在整个前部设置一致的间隙。 扰流板、中置扰流板、侧裙、扩散器和后扰流板是外部安装的空气动力学组件。安装每个部件时，应使用其指定的支架、底盘接口、紧固件和加固件。扰流板需要一个将空气动力载荷传递到预期支撑点的安装结构，而扩散器必须与后围板、排气管和车身底部对齐。 使用其预定的底座、加固件、机械紧固件和指定的背板固定后扰流板。遵循提供的钻孔位置和安装顺序，以便安装结构能够承受持续的空气动力载荷。 C7 Corvette 宽体套件设计用于即插即用安装，无需修剪。引擎盖和前挡泥板替换相应的原厂面板，而扰流板、侧裙、扩散器和后扰流板遵循其组件特定的安装布局。最终组装包括面板对齐、合适的硬件、底盘接口以及承重后扰流板的结构加固。 至少两名熟悉碳纤维面板和赛道空气动力学的技术人员应定位和对齐较大的组件。受控支撑有助于保护面板边缘并使紧固件载荷在安装点周围保持均匀。 安装后，在公路或赛道使用之前，检查面板对齐、轮胎和悬架间隙、紧固件安全性、空气动力学组件运动和车轮对齐。 套件之外的成本 完整的项目预算可包括碳纤维部件、超大件运费、运输保险、专业人工费、表面处理、车轮定位，以及相关的车轮或悬架改装费用。 较低的前部空气动力学套件也会影响车辆运输。拖车可能需要更长的坡道，而可拆卸的分流器端板可以提供额外的装载间隙。赛道专用的改装车也可能受益于备用端板、紧固件和容易接触的底部部件。 人工费估算应围绕初始配置、之前的改装、选定的部件、面板准备、加固和初始面板状况进行。制定最终预算时，请使用最新的部件、运费和安装报价。 车辆信息 完整的改装记录包括车型年份、配置、轿跑车或敞篷车身样式、原厂车身套件、车轮尺寸、偏距、轮胎尺寸、行驶高度、定位、制动套件和悬架规格。 道路使用优先考虑实用间隙和维修便利性。赛道日使用更侧重于冷却、空气动力学平衡和可重复调整，而竞赛使用则增加了规则手册合规性、结构检查和赛道旁维修规划。改装是使用完整系统还是选择科尔维特高性能部件，决定了如何评估相邻部件作为最终配置的一部分。 C7车主关于宽体套件的常见问题有哪些？ C7 Stingray是原厂宽体车吗？ 不是。C7 Stingray和Stingray Z51使用的是较窄的原厂车身。宽体改装需要对挡泥板、相邻面板、内衬、车轮、轮胎和安装点进行协调规划。 哪些C7科尔维特车型拥有原厂宽体车身套件？ C7 Grand Sport、Z06和ZR1拥有原厂宽体车身套件。它们的保险杠、引擎盖、冷却部件、后包围和空气动力学配置可能仍因配置而异。 C7科尔维特车身套件和宽体套件是同一个东西吗？ 不是。车身套件可以增加分流器、侧裙、扩散器和扰流板，而无需改变挡泥板宽度。宽体改装通过更宽或替换车身面板来改变轮胎覆盖空间。 RevoZport C7空气动力学套件适合Stingray吗？ RevoZport前挡泥板、引擎盖、侧裙和后扩散器是为C7 Z06轿跑车和C7 ZR1轿跑车配置的。Stingray或Z51的改装需要针对保险杠、挡泥板、内衬、车轮、轮胎和安装点制定专门的车型改装计划。 RevoZport C7空气动力学部件可以单独安装吗？ 是的。RevoZport列出了单独的C7空气动力学部件，包括引擎盖、挡泥板、侧裙、分流器、扩散器、中部分流器和后扰流板。每个选定的部件都应与最终的改装、安装、冷却以及前后空气动力学计划相匹配。 您应该选择哪种C7科尔维特宽体设置？ 成功的C7科尔维特宽体改装始于原厂车身配置。将挡泥板、车轮位置、安装结构、冷却路径和前后空气动力学平衡作为一个系统进行规划。 道路用车需要可用的间隙和维修便利性，而赛道和竞赛改装则需要更注重冷却、调整、安装和规则手册限制。最终的安装计划应反映车型、年份、车身样式、车轮尺寸和相邻车身套件。

这款成品车比规格表更能体现奥迪RS7 C8 Street Program的精髓。碳纤维发动机盖赋予了车头上部独特的个性，三段式前唇固定了保险杠，侧面和后部部件则将相同的线条延伸至车尾。每个部件都恰到好处，无需喧宾夺主。 这正是RevoZport项目的核心：七个原创部件被设计成一个整体外观，而不是一个复制品套件或一组不相关的碳纤维附加组件。车主可以订购完整的方案，也可以分阶段安装，具体取决于他们想首先改变汽车的哪个部分。 探索完整的奥迪RS7 C8 Street Program，在RevoZport图库中查看更多真实的RS7 C8改装案例，或咨询RevoZport安装顾问，帮助您规划爱车。 这款RS7 C8改装一览 所示车型：奥迪RS7 C8 Sportback。安装案例中未提供具体的车型年份和市场信息。 安装项目：前唇、前风刀、前格栅饰条、碳纤维发动机盖、侧裙、后扩散器和后备箱扰流板。 所示饰面：可见碳纤维亮光饰面。 设计方向：前部更具辨识度，侧面轮廓更低更长，后部更具深度，同时不将汽车改装成宽体。 安装方法：首先进行试装，确定中心线，检查对称性和面板间隙，然后完成产品特定的固定过程。 安装前，将几个部件摆放好，以便同时检查它们的状况、饰面和兼容性。 为什么RevoZport设计了一套完整的RS7方案 原厂RS7已经拥有奥迪高性能溜背车型所期望的速度感和气场。RevoZport的目标不是让它看起来像另一辆车，也不是复制现有的改装套件。目标是开发出RevoZport原创的外观，能够完美融入RS7本身：车身下部更坚固，引擎盖更具特色，从前到后视觉上更加完整。 在充斥着复制品零件和重新贴标设计的市场中，这种区别至关重要。一个单一的通用分流器可能会改变汽车的一个角度，但也可能使车身的其他部分显得不协调。而Street Program则将车头、侧面轮廓和车尾视为一个整体构图。完整的套件能带来最清晰的效果，同时相同的逻辑也允许单个组件作为分阶段的改装方案。 完成后的前部：引擎盖、前唇、风刀和格栅饰条同时改变了车头上部和下部。 前部：四个部件各司其职 三段式前唇：视觉基础 RS7 C8碳纤维前唇在原厂保险杠下方勾勒出清晰的下边缘。其中间部分和边角延伸件使车头看起来更宽、更贴近地面，而无需增加替换保险杠的体积。 在此次安装中，前部被安全抬高，下保险杠经过清洁，并在固定前对三个部分进行了试装。首先固定中心部分，然后安装人员向外侧操作，反复检查边角角度和左右对称性。 最终固定前的试装：中心位置和两个边角延伸件必须保持一致。 风刀和格栅饰条：连接保险杠细节 前风刀与外部进气口和保险杠几何形状相符。碳纤维前格栅饰条将材料延伸至车头上部中央。它们共同作用，防止前唇在车身底部显得孤立。 这些部件虽小，但对齐要求却很严格。安装指南使用保险杠折痕、进气口线条和下大灯边缘作为视觉参考。格栅饰条从中心线定位；风刀在移除背胶之前，会左右对比以确保高度和角度一致。 碳纤维引擎盖：前脸身份的最大改变 RS7 C8碳纤维引擎盖，改变了小型保险杠部件无法触及的车头部分。其暴露的碳纤维表面和雕刻的造型赋予了车头上部独特的个性，并使下部部件与完整的整体设计相连。 这也是该项目中安装最精确的部分。首先记录原始发动机盖的间隙和高度。拆下可转移的工厂部件，如清洗喷嘴、隔音棉和锁扣，然后由两人定位碳纤维发动机盖。在检查发动机盖与挡泥板的间隙、前缘高度、锁扣操作和发动机盖下方的间隙时，铰链螺栓保持松动。只有在所有检查无误后，才能按顺序拧紧紧固件，并再次测试开启、关闭和锁定功能。 引擎盖安装是一项面板对齐工作，而不仅仅是简单的部件更换。间隙调整好后，原厂硬件和锁扣必须正常运作。 侧面：延续RS7的溜背线条 RS7的车顶线条已赋予车辆修长和动感。碳纤维侧裙将这一理念延伸至车身下部。它们将前唇与后部处理连接起来，使侧面看起来更低更长，同时不改变原厂车身宽度。 之前：原厂下侧裙视觉上保持低调。 之后：下部线条现在连接了溜背车的前后部分。 记录在案的安装过程始于清洁的下门槛，并进行了从轮拱到轮拱的全面试装。安装人员从中间定位每条裙边，然后向两端操作，并从低角度检查结果，以确保两侧高度和下边缘一致。 尾部：下方深邃，上方简洁 后扩散器是后下方最显著的变化。它赋予排气区域更强的结构感，并将碳纤维线条环绕保险杠角部。行李箱安装的后扰流板则位于相对边缘，修饰了上部尾门线条。 之前：后扰流板已经安装；原厂下扩散器处理保持不变。 之后：扩散器增加了下部的深度，而行李箱扰流板则完成了尾门的线条。 对于扩散器的安装，小心地拆下原厂下部，以便保留其卡扣和可转移的部件。替换件从中心定位，与原厂卡扣位置匹配，并在完成底部紧固件之前检查排气口和保险杠角部。 排气口、原厂卡扣位置和外角部件都必须在最终拧紧前对齐。 后扰流板的安装过程虽然更简单，但也同样依赖于中心线。它经过试装，以确保与两个尾门边缘的间距相等，然后从中心向外侧按压。 扰流板与RS7 Sportback尾门线条吻合，并从中心向外对齐。 这次真实安装证明了什么 渲染图可以解释设计意图。这款车展示了这种意图如何经受住实际安装、转移原厂部件以及将多个碳纤维部件对齐在一辆车上的考验。 方案呈现为一个整体设计：相同的可见碳纤维方向从前唇、引擎盖延伸到侧裙、扩散器和行李箱扰流板。 小部件也需要精准：中心线、对称性和均匀间隙在风刀和格栅饰条上与在引擎盖上同样重要。 原厂风格并非粗心大意：部件遵循原厂车身和安装逻辑，但正确的试装和针对产品的固定方式仍然至关重要。 该车不是宽体改装：Street Program在原有RS7轮廓的基础上进行提升，而非彻底改变其身份。 原厂风格改装，真实解读 RS7 Street Program旨在与原厂车身进行车型特定集成。本次安装中未描述任何车身切割。记录在案的安装过程使用3M汽车胶带和螺钉在指定的预备或底部安装位置进行固定，而引擎盖则需要转移和调整原厂硬件。 这一细节并未使该项目成为赛车安装；这也是为什么正确的产品说明和精确的试装至关重要。切勿假设一个通用说明同样适用于所有七个部件。相关的产品页面和当前的安装文档具有优先权。 实时收藏列出了适用于2019款及以后奥迪RS7 C8 Sportback的Street Program。案例中未提供所拍摄车辆的准确年份和市场。RS7 Performance或其他市场特定规格的车主在订购前应确认车辆详细信息。 完整方案还是单独组件？ 正确的路线取决于您想首先改变RS7的哪个部分。 如需完整构图：选择完整的RS7 C8车身套件，它将所有七个组件以相同的饰面和设计方向呈现。 如需先从车头入手：从前唇开始。添加风刀和格栅饰条以实现连贯的保险杠处理；当您希望车头上部也能有明显改变时，选择引擎盖。 如需改变侧面轮廓：当已计划安装前唇或后扩散器时，侧裙最能发挥作用。 如需先从车尾入手：从扩散器开始，然后添加行李箱扰流板以平衡车尾的上下边缘。 订购前如需帮助：向安装顾问发送照片、车型年份、市场信息以及您正在考虑的组件。 目前大多数RS7组件清单提供可见碳纤维和更低调的亮黑色方向。可用性因组件而异，因此请确认每个选定的饰面，而不是假设整个方案都存在一个选项。 订购前 确认车辆为奥迪RS7 C8 Sportback，并提供其车型年份和市场。 说明它是标准RS7、RS7 Performance还是其他市场特定规格。 选择完整方案或列出确切的单个组件。 确认每个部件的饰面。 如果车辆带有原厂碳纤维套件或其他外观选件，请分享清晰的前部、侧面和后部照片。 为引擎盖和任何多部件安装安排一位专业的安装人员。 常见问题 RevoZport RS7 C8 Street Program是原创设计吗？ 是的。这七个组件是作为奥迪RS7 C8 Sportback的RevoZport原创项目开发的。它不是重新贴牌的复制品，也不是对其他改装商套件的模仿。 完整的RS7 C8方案包含哪些内容？ 当前方案结合了前唇、前风刀、前格栅饰条、碳纤维引擎盖、侧裙、后扩散器和后备箱扰流板。由于规格可能会修改，请在订购前查看实时的完整套件产品。 RS7碳纤维部件可以单独购买吗？ 是的。每个部件都可以作为单独产品购买，而完整车身套件则是希望获得完整前后构图的车主的选择。 这是一款宽体套件吗？ 不是。Street Program与原厂RS7 C8 Sportback车身配合。它增加了定义和连续性，而不是用极端的宽体改装取代标准车身。 安装需要切割或钻孔吗？ 未描述车身切割。案例指南要求使用3M胶带和螺钉；对于前唇，它明确指示在与产品预留安装孔相对应的位置进行钻孔。侧裙和扩散器使用随附的自攻螺钉固定在预留的底部位置。请遵循当前针对具体组件的说明。 支持哪些奥迪RS7车型年份？ RevoZport实时收藏列出了2019年及以后的奥迪RS7 C8 Sportback。在订购前，特别是对于Performance或市场特定车型，请确认确切的车型年份、市场和规格。 RevoZport可以帮助规划分阶段安装方案吗？ 是的。与安装顾问分享车辆年份、市场、照片、首选饰面和预算方向。团队可以将完整方案与分阶段的前部、侧面或后部安装方案进行比较。 探索更多奥迪RS7 C8改装案例 比较RevoZport图库中的另外四个RS7 C8案例。打开筛选后的图库，查看每个改装案例以及随附的RevoZport产品。 罗马尼亚 RS7 C8 — 视频在图库中查看改装 → 罗马尼亚 RS7 C8 — 照片改装在图库中查看改装 → 河北 RS7 C8 — 中国在图库中查看改装 → 加拿大 RS7 C8在图库中查看改装 → 打造您的奥迪 RS7 C8 街道改装方案 最终效果最佳，因为没有一个部件是独立的。引擎盖和前唇是前部的亮点，侧裙板延续了车身线条，扩散器和后备箱扰流板在后缘处完善了 Sportback。选择完整设计，分阶段改装，或在订购前请 RevoZport 协助安排设置。 购买奥迪 RS7 C8 街道改装方案 探索完整的七件套车身套件 在图库中查看更多奥迪 RS7 C8 客户改装案例 在 WhatsApp 上咨询 RevoZport 设置顾问 或发送电子邮件至 contact@revozport.com。
