Mercedes-AMG GT 63 S X290 Carbon Fiber Body Kit Upgrades

A vehicle roll center is a virtual reference derived from suspension geometry, used to analyze lateral force transmission and body roll. It is not the center of gravity, a physical hinge, or a measurement of how far the body leans. Front and rear suspension geometry are considered separately, and their roll-center positions can change as the suspension moves. For a lowered road or track car, the useful question is whether the revised geometry helps the tires work consistently. A lower body, a higher roll center, or less visible lean does not prove that grip improved. Understanding the construction, its limitations, and the surrounding setup makes the number useful. Roll Center vs Body Roll and Center of Gravity Body roll is the vehicle body's angular movement relative to the road during cornering. Roll center describes a geometric reference associated with the suspension. They answer different questions: one describes motion; the other helps explain how the suspension carries loads. The center of gravity, or CG, describes mass distribution. The instant center, or IC, describes the instantaneous motion of a suspension assembly in a particular view. In a conventional front-view construction, each side's instant center helps locate the axle's geometric roll center. It is an intermediate construction point, not another name for the final result. Term What it describes Common mistake Center of gravity A reference for the vehicle's mass distribution Treating it as the suspension's geometric pivot Instant center Instantaneous suspension motion in the chosen analysis plane Calling the control-arm intersection the roll center Roll center A suspension reference obtained from the chosen model Treating it as a fixed physical hinge Roll axis The reference line joining front and rear roll centers Assuming it must be horizontal The front and rear values need not match. Also, a diagram of the roll axis is a model, not proof that the real sprung body follows that line as a rigid rotation axis in every maneuver. Compliance, tire deflection, and suspension motion complicate the actual response. How to Find Roll Center from Suspension Geometry A useful measurement starts with a defined vehicle condition. Record the intended working ride height, tire condition, steering position, and loading. Use a level reference plane and a consistent coordinate system. A number calculated with the wheels hanging free is not automatically relevant to the car sitting on its tires. Identify the actual pivot centers, rather than measuring to a convenient bolt head or body-panel edge. Record tire contact-patch locations and the relevant suspension hardpoints. Keep left and right measurements separate until symmetry has been established. For three-dimensional layouts, obtain the correct projected or equivalent geometry instead of tracing the visible outline of a control arm. The following methods describe simplified front-view constructions. They explain the logic behind a roll center diagram; they are not substitute workshop instructions for modifying suspension components. High Performance Academy's roll-center lesson demonstrates the distinction between locating an instant center and constructing a roll center. Double Wishbone Suspension In a suitable planar representation, extend the upper and lower arm lines until they intersect. That intersection is the instant center for that side. Draw a line between the instant center and the center of the tire contact patch. Repeat the construction on the other side. This single-side construction locates IC. The contact-patch line is then combined with the opposite side's construction to locate the axle's geometric roll center. The intersection of the two contact-patch-to-IC lines gives the geometric roll center. In a symmetric static arrangement it lies on the vehicle centerline. Do not force that centerline assumption onto an asymmetric or displaced suspension condition. Nearly parallel construction lines also make the intersection sensitive to small measurement errors. MacPherson Strut Suspension A MacPherson strut has no upper wishbone to extend. In the simplified front-view construction, use the lower-arm line and a line through the upper strut mount perpendicular to the strut axis. Their intersection locates the instant center. Connect that point to the tire contact patch and repeat for the other side. This idealized vertical-strut example makes the perpendicular construction clear: the upper line is horizontal. IC is the instant center; CP is the contact point. For an inclined strut, the upper line must change angle to remain perpendicular. Use the actual kinematic layout. A split lower-link arrangement, unusual steering-axis geometry, or substantial compliance can require a more complete model. A familiar-looking strut does not make every simplified sketch equally accurate. Solid Axles and Other Rear Suspension Layouts Do not use the double-wishbone method simply because the rear suspension has several links. A rigid axle's lateral locating arrangement needs to be understood first. A torsion or twist beam introduces structural behavior that differs from a rigid axle. Multi-link independent systems can require three-dimensional kinematic analysis. For those layouts, identify the suspension architecture and use a model or manufacturer information appropriate to it. The word “beam” alone does not tell you which construction to use, and wheel-center height is not a universal answer. How Ride Height Changes the Roll Center Question Lowering a car changes the relationship between body-side suspension pivots and the wheels. The center of gravity may move down, but the roll center follows the geometry rather than moving down by the same amount. The outcome depends on the layout and its operating position. This is why “lower CG means less body roll” is an incomplete prediction after a suspension change. If the geometric roll reference changes unfavorably, the benefit of a lower CG can be offset. New springs or anti-roll bars may also change the measured roll response, making it difficult to attribute the result to geometry alone. A repeatable ride-height reference helps define the vehicle's working condition. It does not reveal the roll-center height without suspension geometry data. Our coilover track setup guide explains how to establish a baseline and test changes methodically. Record the mechanical setup before interpreting any new geometric result. Available compression and rebound travel also matter. A car that reaches its bump stops earlier may behave differently even if a static roll-center calculation looks acceptable. Check alignment, tire and body clearance, and the usable suspension range alongside ride height. Low vs High Roll Center and the Grip Tradeoff In a simplified steady-state model, raising the roll center toward the sprung-mass CG reduces the roll moment carried through elastic suspension elements. At the same time, it increases the geometric share of lateral load transfer. Lowering it changes that division in the other direction. Claude Rouelle's load-transfer analysis makes the important distinction: reducing the elastic contribution does not make total load transfer disappear. In its simplified two-dimensional example, total transfer remains governed by mass, lateral acceleration, CG height, and track width while the transfer paths change. That model explains why a flatter-looking car is insufficient evidence of more grip. A complete car adds front-to-rear load sharing, tire behavior, compliance, and transient response. There is no universal “best” front and rear roll-center height that follows from appearance alone. Higher roll-center geometry can also introduce jacking, a tendency for suspension forces to lift the sprung body. Its significance depends on the layout and operating condition, adding another reason not to maximize roll-center height in isolation. Read our weight transfer guide for the underlying distinction between vehicle motion and tire loading. If a setup changes handling balance, describe the actual entry, midcorner, or exit behavior before diagnosing the cause. Why One Static Number Is Not Enough The control arms do not hold the same angles throughout compression, rebound, and roll. Their instant centers move, and the geometric roll center can move vertically and laterally. Tony Foale's suspension geometry explanation describes why the construction applies to an instantaneous position. A useful comparison therefore follows the geometry through the travel range the car actually uses. Check for abrupt movement, sensitivity to small hardpoint changes, and asymmetry between relevant conditions. A seemingly attractive static value may conceal behavior elsewhere in the operating range. Spring and damper hardware influences the response, but it does not replace the hardpoint geometry needed to locate a roll center. Keep roll stiffness separate from roll-center location. Roll stiffness describes resistance to roll; the roll center is a geometric or force-based reference. Changing a spring rate does not, by itself, move the rigid hardpoints at an identical imposed suspension position. It can change the equilibrium position the car reaches under load, which then changes the geometry being evaluated. What a Vehicle Roll Center Calculator Can Tell You A calculator can make a specified construction repeatable. It cannot recover missing hardpoints from a photo of a lowered car. Before trusting its output, check the following: Definition: Does it report a kinematic construction or a force-based result? Inputs: Are coordinates, units, contact patches, and projection conventions correct? Condition: Does the model represent the chosen ride height, steering position, and loading? Scope: Does it model the actual suspension architecture and account for any relevant compliance? Sensitivity: Do small input changes produce a large change in the result? RACE Software's Roll Centre Height Force Based Suspension KPI describes a method using lateral contact-patch force and the resulting force response. That is a reason to check definitions before comparing numbers from different tools. Its overview does not establish an accuracy guarantee for another calculator. If measurements are incomplete, report the missing inputs instead of presenting a guessed millimeter value. Likewise, do not compare two diagrams built at different wheel travel positions and call the difference a confirmed improvement. What to Check After a Ride Height Change Start with the mechanical condition and the revised geometry. Have qualified personnel check alignment, clearances, travel, and the suitability of any changed components. Do not choose ball-joint extensions or relocate mounting points from a generic internet diagram. For controlled track evaluation, compare the same driver, tires, loading, and representative conditions. Record the setup, describe the handling phase that changed, and compare repeatable observations rather than one fast lap or a photo of reduced lean. Combine geometry information with a repeatable setup record. The vehicle's exterior appearance cannot establish its hidden suspension coordinates or performance result. Our understeer vs oversteer guide helps separate the observed handling response from a proposed explanation. Persistent instability needs diagnosis; it is not an instruction to keep raising or lowering one roll center. For a REVOZPORT build, keep bodywork and suspension claims distinct. Carbon aero components do not establish a roll-center correction, and a kit photograph does not supply the geometry needed to calculate one. Judge the chassis setup using appropriate measurements. Frequently Asked Questions Should the Rear Roll Center Be Higher Than the Front There is no universal requirement. Front and rear geometry, lateral load-transfer distribution, tire characteristics, and the intended balance must be considered together. Can a Roll Center Be Below Ground Yes, a geometric construction can place it below the road plane. That is a model result to interpret, not proof by itself that the car is unsafe or that a correction kit will improve it. Does Roll Center Affect Caster They are different parameters. A hardpoint change can affect both, but a roll-center height alone does not determine caster. Check the complete geometry after modifications. Is Roll Rate the Same as Roll Center No. A roll rate or stiffness calculation concerns resistance to roll, whereas roll-center analysis concerns suspension geometry or force response. Define the terms and units before comparing results. Technical Sources High Performance Academy Motorsport Wheel Alignment Roll Centre — introductory constructions and ride-height context. Claude Rouelle The No Way Transfer Part 2 — geometric and elastic load transfer, including model limitations. Tony Foale Spring into Action — instantaneous constructions and movement through suspension travel. RACE Software Roll Centre Height Force Based Suspension KPI — definition of its force-based reporting method.

VELOIRE introduces a ZEEKR 9X exterior programme developed with REVOZPORT as its design and engineering partner. The programme is independent from ZEEKR. Prepreg dry carbon is carbon-fiber reinforcement pre-impregnated with resin before it is cured into a component. The ZEEKR 9X carbon fiber body kit offers an exterior upgrade for buyers seeking a coordinated change to their vehicle. Its parts follow the SUV from the front through the sides to the rear, keeping its existing shape and lighting identity in view. The programme changes the exterior design, not the vehicle’s stated performance. Parts can combine visible finished sections with sections supplied in white primer for painting. That distinction helps buyers plan a finish that suits the vehicle and the look they want. The design goal is a more deliberate visual line, not a collection of unrelated carbon accents. Key Takeaways VELOIRE is the programme brand; REVOZPORT is its design and engineering partner. The programme is independent from ZEEKR. It uses prepreg dry carbon for selected exterior components. Some parts have clear-coated carbon, while others arrive in white primer. Buyers should confirm fitment for their exact vehicle and market. What Makes the ZEEKR 9X Carbon Fiber Body Kit a Cohesive Transformation? The European-specification ZEEKR 9X’s long wheelbase and upright proportions give the exterior programme a substantial form to work with. A cohesive body kit for the ZEEKR 9X follows those proportions rather than adding single features without a shared design. The vehicle’s stated dimensions and market specification provide useful context, but exterior parts do not add power or capability. European-specification details describe a plug-in hybrid with all-wheel drive, a 2.0-liter turbocharged inline-four petrol engine, and front and rear electric motors. Its stated output is 660 kW / 897 HP, with a gross battery capacity of 55 kWh and a kerb weight of 2,900 kg. These are European-specification figures, not universal specifications for every market. The upright silhouette and distinctive lighting signature set clear design limits. The body measures 5,239 mm long, 2,029 mm wide excluding mirrors, and 1,819 mm high. Its 3,169 mm wheelbase helps explain why a front-to-rear treatment matters on a vehicle of this scale. Length: 5,239 mm Width, excluding mirrors: 2,029 mm Height: 1,819 mm Wheelbase: 3,169 mm The European specification also lists 22-inch alloy wheels with 285 / 45 R22 tires. Front double-wishbone and rear multi-link suspension work with dual-chamber air suspension and dual-valve CDC. These details describe the vehicle’s existing setup; they do not show that exterior changes improve handling or performance. REVOZPORT’s work on other vehicles offers context for its design role, including a CFD carbon-fiber programme for the BMW G87 M2. That product concerns a different vehicle and does not establish ZEEKR 9X performance claims. A separate BMW M5 exterior programme also shows the partner’s use of linked front, side, and rear parts. For this SUV, the shape and lighting call for a measured conversion rather than a change that competes with its original design. Keep the visual brief centered on proportion and continuity rather than claims of added power or capability. Which Components Shape the Front-to-Rear Transformation? The 11-part programme combines replacement panels with carefully placed add-ons rather than relying on one oversized feature. Replacement pieces take the place of selected factory exterior parts, while add-ons attach to existing areas. The mix creates a linked front-to-rear treatment without suggesting a change to the vehicle’s exhaust system. Several parts have clear-coated carbon that remains visible, while other sections arrive in white primer. The latter need body-color paint; white primer does not mean the parts arrive painted to match. Bonnet, bumper and front splitter The replacement front bonnet uses visible prepreg dry carbon under a clear coat. Its carbon surface is a finished, exposed section, not a paint-ready panel. Buyers choosing the visible finish can keep the weave on display. The replacement front bumper combines clear-coated visible carbon sections with paint-match sections supplied in white primer. Those primer areas need body-color paint to blend with the vehicle. The add-on front lip, also called a splitter, uses clear-coated visible prepreg dry carbon. Together, the bonnet, bumper, and lip give the front end more than one point of visual focus. The replacement bumper and bonnet change existing panels; the lip adds a separate piece below the bumper. Fender extensions, side skirts and mirror covers Replacement wide-body fender and wheel-arch extensions arrive in white primer for body-color painting. They extend the side treatment around the wheel openings. Their finish should be planned with the body color, not treated as exposed carbon. Replacement side-skirt extensions also arrive in white primer for body-color painting. They continue the lower line between the front and rear wheels. Add-on mirror covers provide a smaller visible-carbon detail, finished with a clear coat. The contrast between paint-ready extensions and visible carbon covers lets buyers balance a blended side profile with selected exposed-carbon areas. These pieces are replacements or additions as specified; they do not change the vehicle’s underlying body or chassis. Rear diffuser, glass trim and spoilers The replacement rear diffuser has clear-coated visible carbon and integrated carbon exhaust finishers. The finishers are visual details; they do not replace or alter the exhaust system. The diffuser replaces the existing rear part rather than adding a new exhaust outlet system. Add-on rear window and C-pillar trim panels use clear-coated visible prepreg dry carbon. The add-on roof spoiler has the same visible finish. The mid spoiler also uses clear-coated carbon and mounts below the rear window. The replacement tailgate trim panel is clear-coated visible prepreg dry carbon. It changes the trim, not the rear lamps. A guide to replacement and add-on exterior parts gives general context for how different panel types can form a coordinated look. The rear pieces carry the carbon treatment across the tailgate, glass area, and lower bumper, balancing the front and side details. A broader REVOZPORT dry-carbon programme on the BMW XM offers another example of a linked exterior approach, though its parts are for a different vehicle. The white-primer fender and side-skirt pieces need body-color painting to complete the intended blend. Which Carbon Finishes and Forged Wheels Can You Choose? Gloss twill is the included finish, while matte twill and forged carbon each add 10%. The three options change the visible carbon pattern and clear coat, not the part selection. VELOIRE forged wheels are optional and priced separately from the complete body kit. These finishes use prepreg dry carbon, also described in some listings as dry carbon fibre. Custom colors and alternative weaves are available on request. Ask about those choices when setting the desired finish for the exposed sections. Three carbon finish options Finish Weave or pattern Clear coat Price adjustment Gloss twill Classic diagonal weave High-gloss Included as standard Matte twill Diagonal weave Low-glare matte 10% extra Forged carbon Distinctive forged-carbon pattern Gloss 10% extra Gloss twill keeps the familiar diagonal weave visible under a high-gloss finish. Matte twill retains a diagonal pattern with less glare. Forged carbon has a different, irregular pattern and a gloss clear coat. Vehicle-specific forged wheel sets VELOIRE offers vehicle-specific forged wheels in 23-inch or 24-inch sets. Those sizes are optional alternatives to the European-specification ZEEKR 9X’s 22-inch alloy wheels. The wheel sets are not included in the body kit price. Wheel size alone does not settle whether a set suits a particular vehicle. The fit check covers the wheel, tire, and brake clearance before a quotation. A VELOIRE programme overview also outlines the available wheel sizes and finish choices. Buyers can ask for a quotation for either forged-wheel size once their preferred setup is clear. Confirm wheel, tire and brake clearance before settling on a wheel size. What Does the Complete Kit Cost, and Which Charges Are Separate? The complete VELOIRE 11-component body kit is listed at USD $27,615. That product total excludes optional forged wheels, shipping, duties, taxes, and installation. Each of those costs is handled separately from the kit price. For a clear project budget, separate the kit itself from the other costs that may apply. The wheel price is not part of the product total, and the remaining charges receive separate quotations. The figures below describe how each item relates to USD $27,615. Purchase item Listed price treatment Relationship to USD $27,615 Complete 11-component kit USD $27,615 Product total Optional forged wheels Priced separately Not included Shipping Quoted separately Outside product total Duties, taxes, and installation Quoted separately Outside product total Shipping, duties, taxes, and installation can affect the full project budget, so the listed kit price is not a delivered or installed total. The body kit Zeekr 9X buyers compare may also come from other aftermarket programmes, with different parts and styling goals. MANSORY’s separate ZEEKR 9X project is one market alternative. DuPont Registry’s report on its one-off build describes a carbon-fiber body kit, two-tone paint, coach-style rear doors, and custom 24-inch wheels. Forza Performance offers another example of a carbon-fiber kit offering; these are alternatives, not endorsements or rankings. Buyers weighing a kit can also use a carbon-fiber body kit buying guide to consider material, fitment, and installation as separate choices. Compare the product total with the separately quoted charges before confirming a full project budget. How Is Fitment Confirmed Before Production? A ZEEKR 9X model name alone is not enough to finalize fitment; the vehicle’s specification and details must be checked. VELOIRE is designed for ZEEKR 9X Max, Ultra, and Hyper models, along with regional derivatives. Final fitment approval requires the VIN and exterior photographs of the front, rear, left side, and right side. Before production, REVOZPORT checks the VIN, market specification, cameras, sensors, and exterior views. This review helps confirm how the selected parts relate to the specific vehicle. A model name or one market’s specification does not guarantee fitment across every regional version. Preparation matters because exterior parts sit near features such as cameras and sensors. Buyers should identify their exact vehicle and share the required views before production approval. A general carbon-fiber installation guide can help explain test fitting and alignment, though its procedures cover a different vehicle. Vehicle and market verification The review begins with the VIN and the vehicle’s market specification. REVOZPORT also checks the camera and sensor layout, then compares it with the exterior photographs. These steps help distinguish vehicles that share a model name but have different regional details. Send clear exterior photographs showing the front, rear, left side, and right side. The VIN and all four views are needed for final fitment approval. A vehicle-specific fitment guide can explain why exact versions matter, but it does not replace the ZEEKR 9X review. Installation and buyer preparation Professional installation is recommended, not stated as a requirement. Large replacement panels and add-on pieces call for careful handling and alignment. The programme does not state that professional installation is required, but buyers should plan who will fit the parts. Prepare the request in five steps: Identify the ZEEKR 9X model and market. Choose the components. Select a carbon finish. Decide whether to request a 23-inch or 24-inch wheel quotation. Prepare the VIN and four exterior photographs for final approval. Share the details before production so the vehicle-specific review can take place. Arrange a professional installer before the parts are ready to fit. Conclusion VELOIRE’s defining choice is a coordinated exterior treatment, with the final specification tailored to the vehicle. REVOZPORT is the programme’s design and engineering partner, and the project remains independent from ZEEKR. Buyers can shape their request around the selected parts, finish, and wheel choice. Base a specification request on the exact vehicle and market, not the model name alone. Compare the kit price with separately quoted project costs, then prepare the details needed for approval. Prepare the VIN and four required exterior views before requesting final fitment approval. FAQ How much will the ZEEKR 9X cost? The VELOIRE body kit costs USD $27,615, not the ZEEKR 9X vehicle itself. That price covers the complete 11-component kit. Optional forged wheels are priced separately, and shipping, duties, taxes, and installation receive separate quotations. The SUV’s purchase price is a different cost from this exterior upgrade. What is a carbon fiber body kit? A carbon fiber body kit is a group of replacement and add-on exterior parts made with carbon-fiber material. VELOIRE’s programme pairs replacement panels, such as the bonnet and rear diffuser, with add-ons such as the front splitter and spoilers. Some visible sections have clear-coated carbon, while white-primer sections need body-color paint. What is the best body kit? VELOIRE may suit buyers who want a coordinated 11-component front-to-rear design and vehicle-specific fitment checks. That recommendation depends on the buyer’s goals, chosen parts, and vehicle details. It is not an objective ranking of every kit. Buyers should compare the design, finish choices, fitment process, and separate project costs against their needs. Who are the top body kit manufacturers? For this project, VELOIRE is the brand and REVOZPORT is its design and engineering partner. MANSORY and Forza Performance are other examples in the ZEEKR 9X aftermarket. They are market alternatives, not a ranked list of manufacturers. Their programmes can differ in design, parts, and scope, so buyers should compare the details that matter to them. What is the best website for buying body kits? For the VELOIRE programme, use its programme page and specification-request process. This gives buyers a direct way to describe their vehicle, component choices, and desired finish. Fitment review depends on the VIN, market specification, cameras, sensors, and exterior views. A general website ranking would not show whether a specific kit suits a specific vehicle.

Trail braking is the gradual release of brake pressure while steering into a corner. The main slowdown starts on the straight; as cornering demand builds, braking demand usually needs to fall. Done well, this transition can help manage corner-entry balance and prepare the car for a clean exit. It does not mean carrying heavy braking into every turn. This guide explains the trail braking technique for cars on a closed course, with qualified instruction. The useful question is how the car responds as you release the pedal. A later braking point or a longer brake trace is not automatically an improvement. What Is Trail Braking in a Car Imagine approaching a right-hand corner after a straight. You first reduce speed with the car largely straight. As you start turning, you progressively ease off the brake instead of releasing it all at once. That overlap between declining brake pressure and increasing steering is trail braking. Coaches sometimes use the term differently. Some include almost any controlled brake release after turn-in; others reserve it for carrying light braking farther into the entry. Neither description creates a universal release point. What matters is whether the overlap suits the corner and keeps the car predictable. It also differs from simply braking too late. If the entry speed already demands more grip than the tires can provide, holding the brake into the turn will not create the missing capacity. Learn a consistent straight-line approach before adding overlap. How Tire Grip and Load Transfer Shape the Release A tire has a limited capacity to generate braking and cornering forces together. The friction circle is a useful teaching model: asking for more lateral force leaves less room for longitudinal braking force. Real tires and changing surfaces are more complicated than a perfect circle, but the practical relationship remains useful. The red and blue arrows represent longitudinal and lateral demand. They are not measured force values. This is why turning the wheel farther while maintaining the same heavy brake input can overwhelm the front tires. Additional steering is not a substitute for available grip. The Northeast Region Porsche Club of America explains this relationship in its driving terminology guide. Braking also shifts vertical load toward the front axle and away from the rear. This changes the balance between the axles; it does not increase every tire's grip equally. For the underlying mechanism, see our guide to weight transfer in cars. Keeping some braking into turn-in can influence rotation. Too much can leave the front tires overloaded by combined demands or make the rear less stable. The release must respond to both effects. Smoothness means controlling how the load changes, rather than making every pedal movement slow. Under braking, vertical load increases at the front and decreases at the rear. Arrow sizes are conceptual, not a load distribution measurement. Trail Braking vs Threshold Braking and Straight Line Braking These terms describe different aspects of braking. Threshold braking concerns how close braking gets to the available tire-grip limit. Straight-line braking describes the car's direction. Trail braking describes the release and its overlap with turning. Technique Main purpose Relationship to steering Straight-line braking Reduce speed before turning Main braking takes place with the car largely straight Threshold braking Use braking grip near its limit while retaining control Usually taught first on the straight; the limit changes with conditions Trail braking Blend brake release into corner entry Braking demand generally falls as cornering demand increases A driver can use strong straight-line braking, potentially near threshold, then trail off during turn-in. A beginner does not need to reach the limit to learn a controlled release. Equally, finishing braking before turning can be the appropriate approach when it provides a stable, repeatable line. How to Practice the Trail Braking Technique on Track Work with an instructor at an organized track event. The sequence below is a framework for discussion and coached practice, not a pressure prescription. Keep the vehicle's normal safety systems in the configuration recommended by its manufacturer and the event instructor. 1 Establish a Repeatable Approach Choose a suitable corner with your instructor. Use an identifiable braking reference and a conservative entry speed. Establish your intended line and complete the main slowdown before adding significant steering. If the braking point, speed, and line change every lap, it becomes difficult to judge the effect of release. 2 Blend the Release Into Turn In As the steering input builds, reduce brake pressure progressively. Avoid stepping off the pedal or holding a large brake input simply because you have begun the exercise. Your instructor should help you connect pedal movement with the car's direction and stability. The approach, turn-in, and later entry form one continuous transition. These positions do not mark fixed braking or release points. 3 Adapt to the Corner and the Car Do not aim for a universal remaining brake percentage. Pedal travel, measured hydraulic pressure, and a simulator's normalized brake input are different signals. A value copied from another car may describe a different braking force altogether. Likewise, the apex is not a mandatory deadline. Depending on the line and available grip, braking may finish earlier or extend farther into the entry. Toyota GAZOO Racing's Episode 3 Trail Braking illustrates one teaching approach; its timing and proportions should not become rules for every vehicle. 4 Prepare a Controlled Transition to Throttle Release the brake as the car reaches the balance and direction needed for the next phase. Add throttle progressively when the car and line are ready. If a more aggressive entry leaves you correcting the steering or waiting longer to accelerate, the apparent entry gain may cost time down the following straight. After the lap, discuss one observation before changing another input. Was the entry line more consistent? Did the rear remain settled? Could you start unwinding the steering without a correction? These questions are more useful than trying to maximize how long the brake stays on. When to Use Trail Braking and When to Simplify Slow, tight corners can provide a reason to explore controlled entry rotation. Toyota's track guidance identifies slower bends as a useful application. That does not mean every hairpin needs deep trail braking: the approach, surface, car balance, and exit still decide whether it helps. A tight hairpin and a broad sweeper present different entry tasks. Corner shape alone does not determine a safe speed or brake release. For an unfamiliar fast corner, a wet or uneven surface, or a rear end that already feels unstable, simplify the entry and seek instruction. Combining more demands under those conditions leaves less room for mistakes. Do not force brake overlap to match a video of a different car. On cars with meaningful aerodynamic downforce, available grip can also change as speed falls. A braking profile from a high-downforce race car cannot simply be transferred to a road car. Our street aero vs track aero guide explains the different design priorities. Neither aero hardware nor brake technique removes the need to manage entry speed. Can Trail Braking Fix Understeer or Make You Faster It may improve lap time when a cleaner entry enables an earlier, better-controlled exit, but that benefit must be checked across comparable laps. Gaining time at turn-in is of little value if the exit loses more. It may help a particular corner-entry balance problem, but it cannot reliably cure understeer. A car that runs wide while turning may already be asking too much of the front tires. More brake or steering can increase that demand. An unloaded rear axle can also rotate farther than intended. First identify what is happening and when. Our understeer vs oversteer guide helps distinguish the two responses. Persistent instability deserves investigation of tires, alignment, brakes, suspension, and driver inputs rather than an increasingly aggressive entry. Keep changes traceable. If you alter damping, tire pressures, and brake release together, you lose a useful comparison. Our coilover track setup guide describes a methodical testing approach. Judge the result across entry, exit, and repeatability, not one impressive braking moment. What Telemetry Can Tell You Use data to test a specific question: did the release become more controlled without compromising the line or exit? Virtual Racing School's braking technique lesson provides simulator examples of release phases and speed-dependent grip. Those examples explain relationships; they are not targets for every real car. Brake signal: Look for the release shape and any unexpected reapplication. Check whether the channel measures pedal position or actual pressure. Steering and speed: Compare them at the same track positions. Check whether similar entries require similar inputs. Vehicle response: Match the trace with video, instructor feedback, and any available stability or rotation information. Exit and repetition: Check the following acceleration phase and several comparable laps, rather than selecting one isolated trace. Review data alongside driver observations and coaching. A smooth-looking trace alone does not establish that the entry was better. A drop in brake pressure without much steering could reflect a different line or reduced grip. Repeated brake applications could reflect traffic, a mistaken entry speed, or an intentional adjustment. Ask what happened before deciding what to change. Can Trail Braking Save an Overly Fast Road Corner Entry It cannot guarantee crash avoidance, and this track exercise should not be treated as an emergency recovery method. Public-road curves can hide traffic, debris, changing grip, and a tightening radius. There may be no runoff or space to correct a mistake. The Pennsylvania driver's manual advises drivers to reduce speed before entering a curve. Choose a speed appropriate to visibility and conditions before turning. Follow local driving guidance and the vehicle manual; do not practice performance-driving overlap on public roads. Common Trail Braking Mistakes Moving the braking point first: Learn the release from a consistent, conservative approach before asking an instructor about later braking. Holding heavy pressure as steering builds: Overlap requires managing combined demand, not maintaining the straight-line input. Releasing abruptly: A sudden pedal change can disturb the transition you are trying to control. Forcing the brake to the apex: A geometric reference does not determine the right release point for every car. Using technique to mask a problem: Stop chasing rotation when the vehicle's behavior or mechanical condition needs investigation. Frequently Asked Questions Do You Need to Trail Brake in Every Corner No. Use it only where the entry task, available grip, vehicle balance, and your skill make it appropriate. A simpler entry can provide a better result. Can Trail Braking Cause Oversteer Yes. Braking while turning can reduce rear stability, particularly with excessive pressure or abrupt inputs. The effect depends on the car and conditions. Does ABS Make Trail Braking Safe ABS helps manage wheel lock; it does not remove tire-grip limits or guarantee the intended cornering path. Follow the vehicle's guidance and learn with an instructor. Is Left Foot Braking Required No. Trail braking describes the brake-release pattern, not which foot operates the pedal. Learn with the pedal technique appropriate to the car and your instruction. Technical Sources Northeast Region Porsche Club of America Driving Terminology — combined grip, threshold braking, and trail braking terminology. Toyota Australia GAZOO Racing Episode 3 Trail Braking — track-focused balance and slow-corner examples. Its numerical teaching examples are not used as universal targets here. Virtual Racing School Fundamentals Braking Technique — simulator examples of release phases and downforce-related changes. Pennsylvania Driver Manual Negotiating Curves — public-road approach speed guidance.

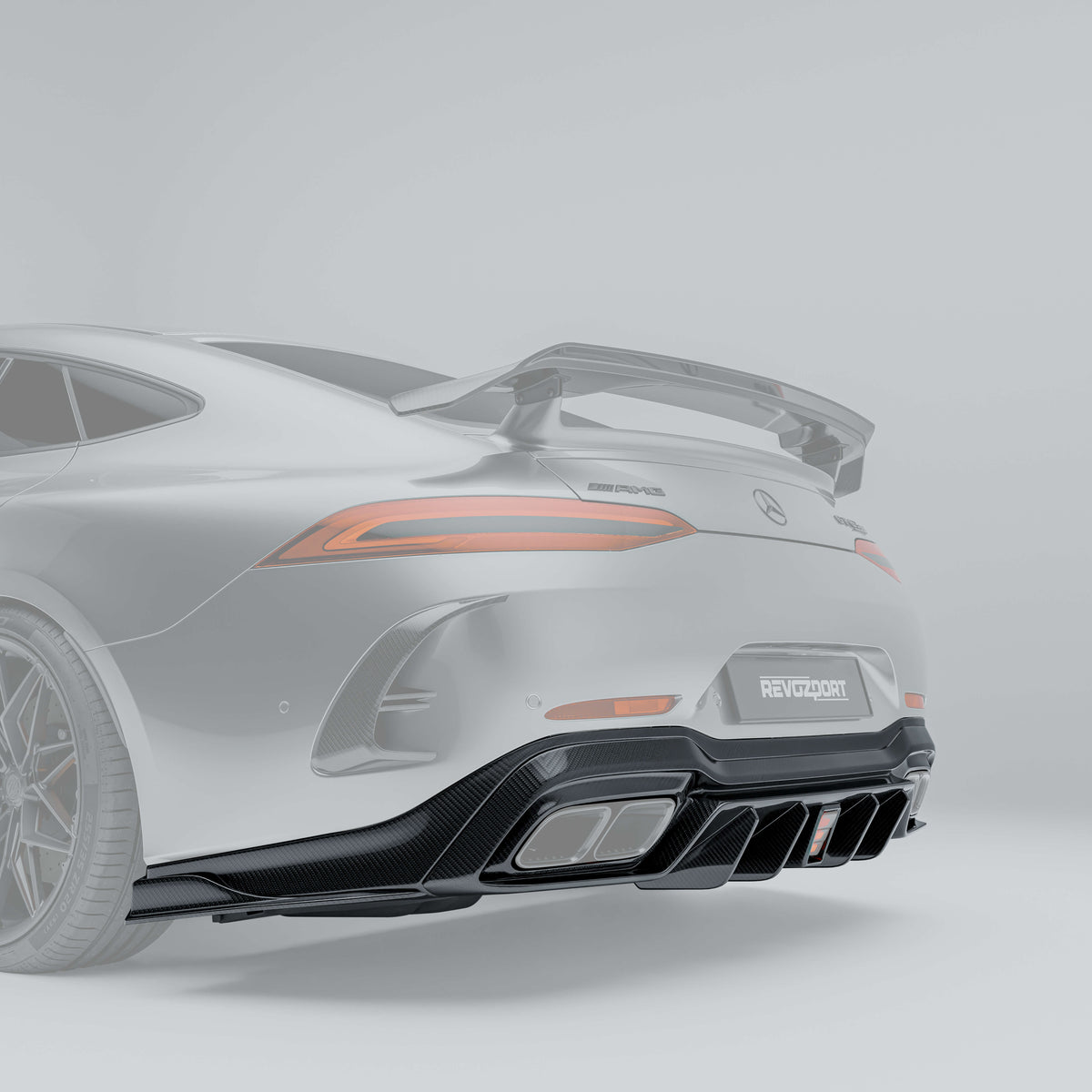

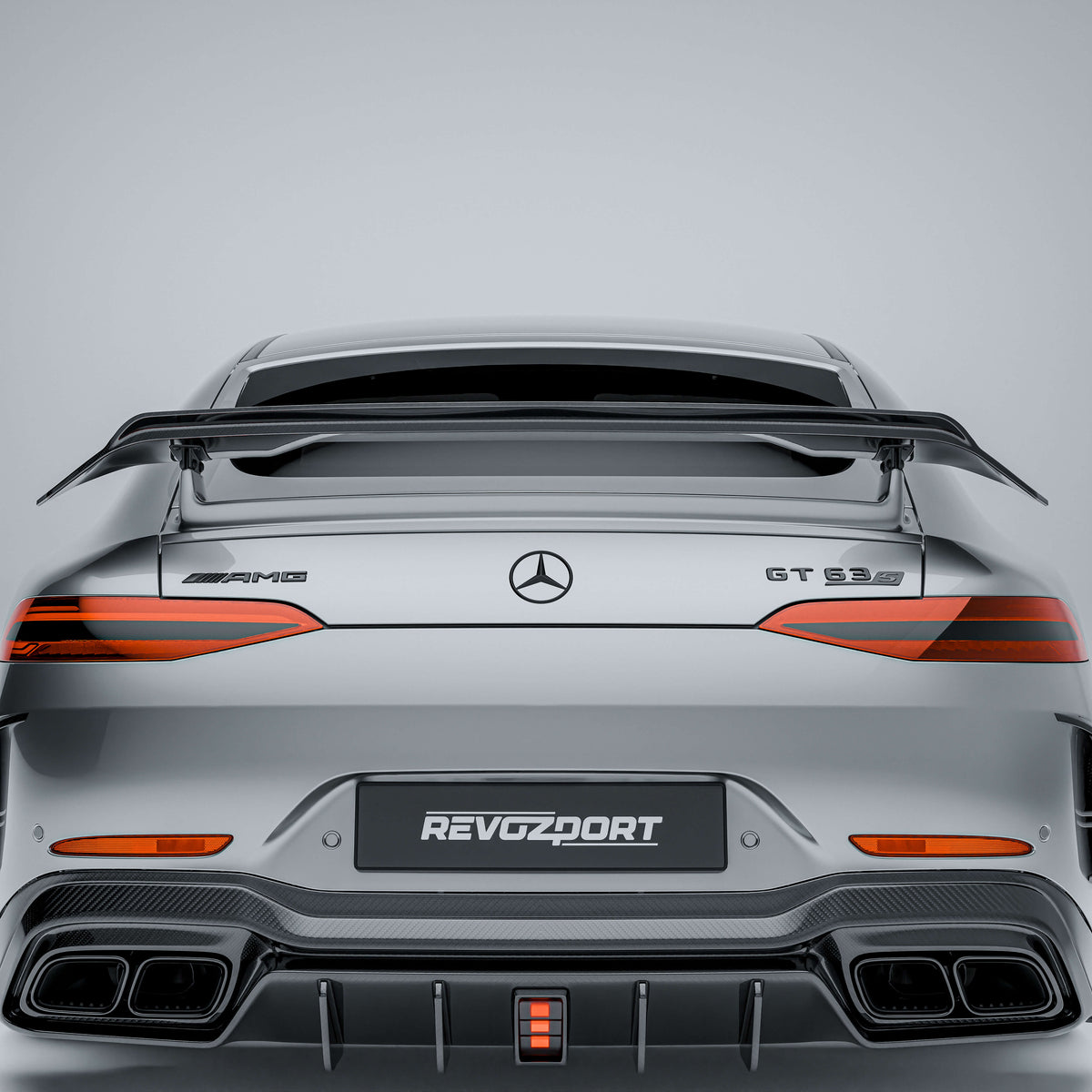

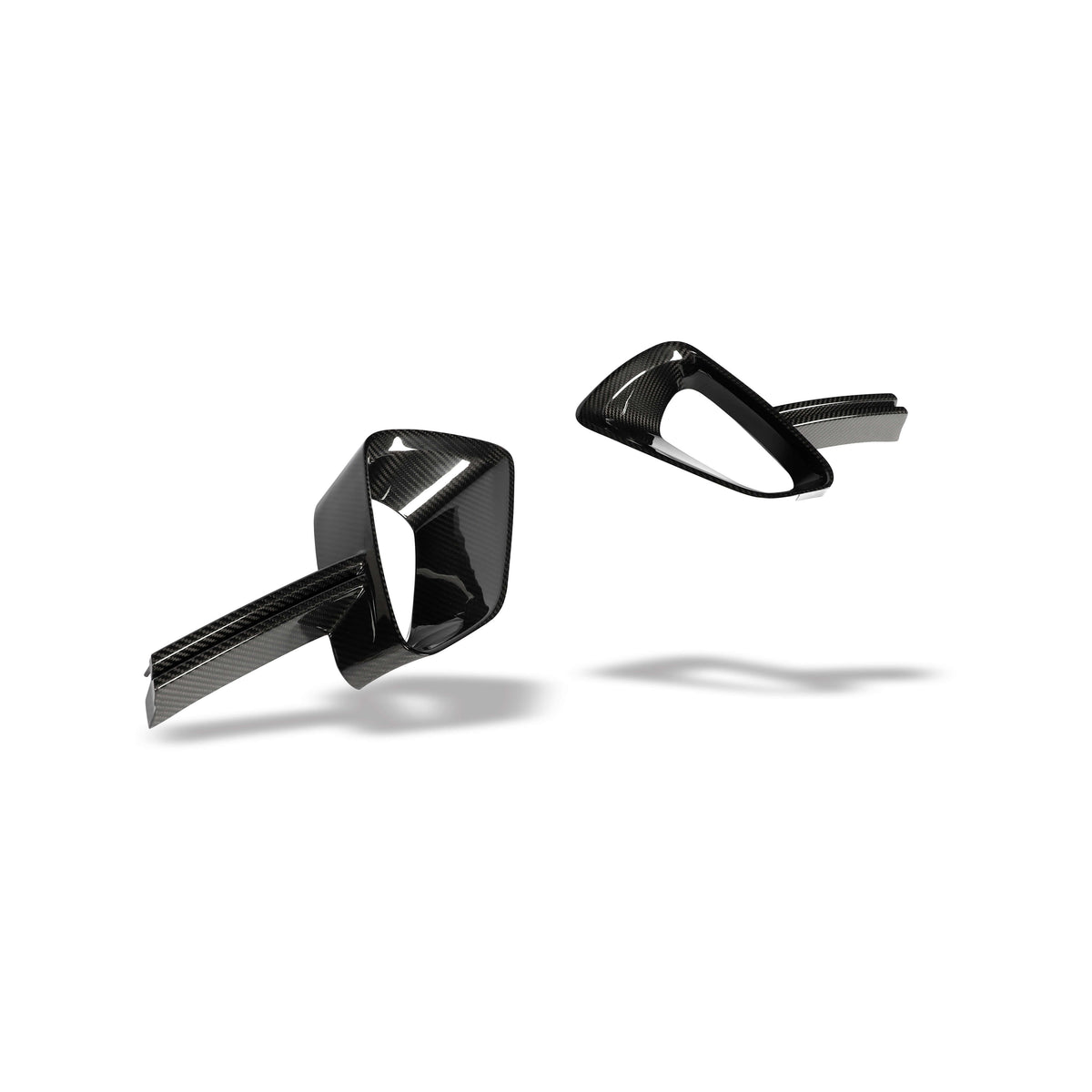

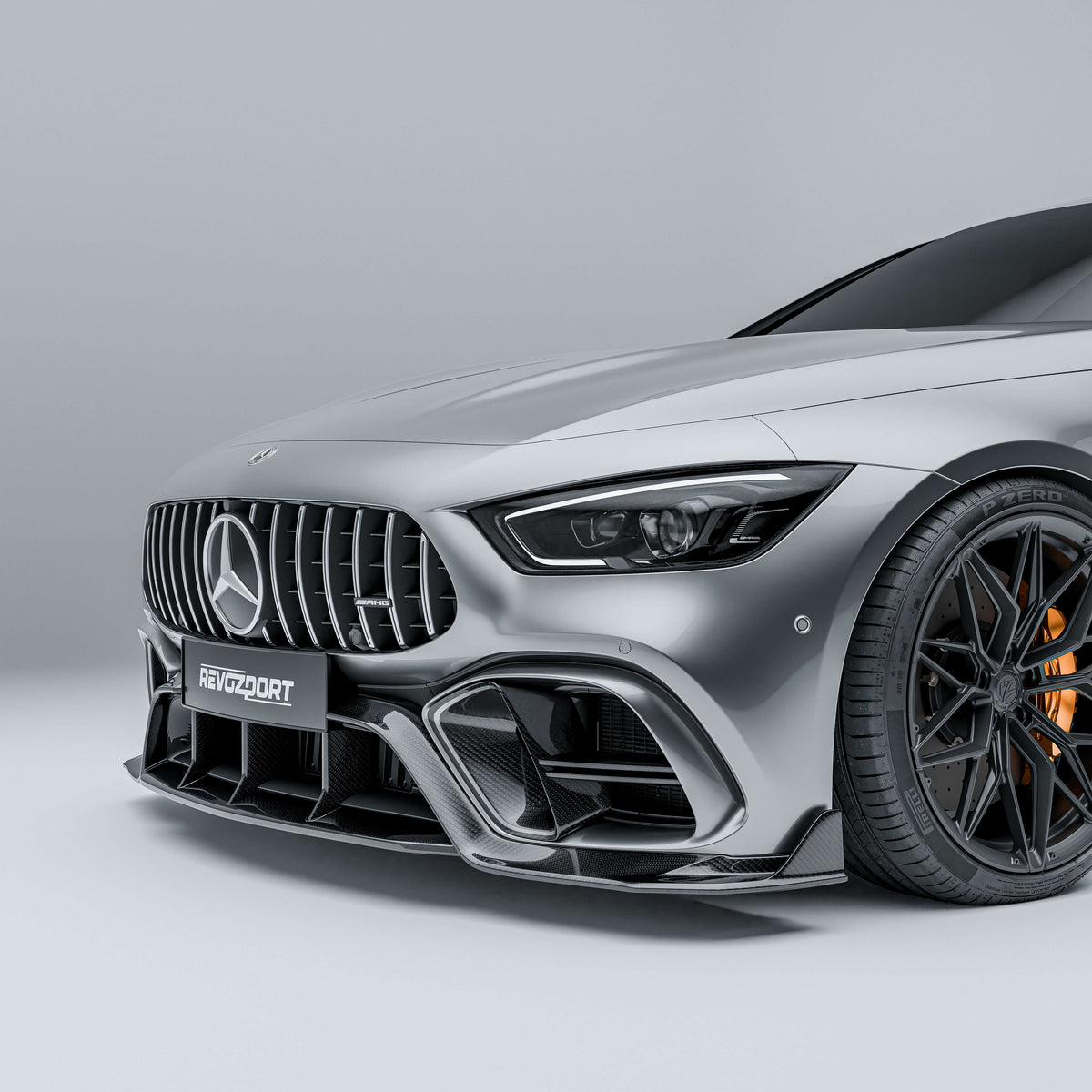

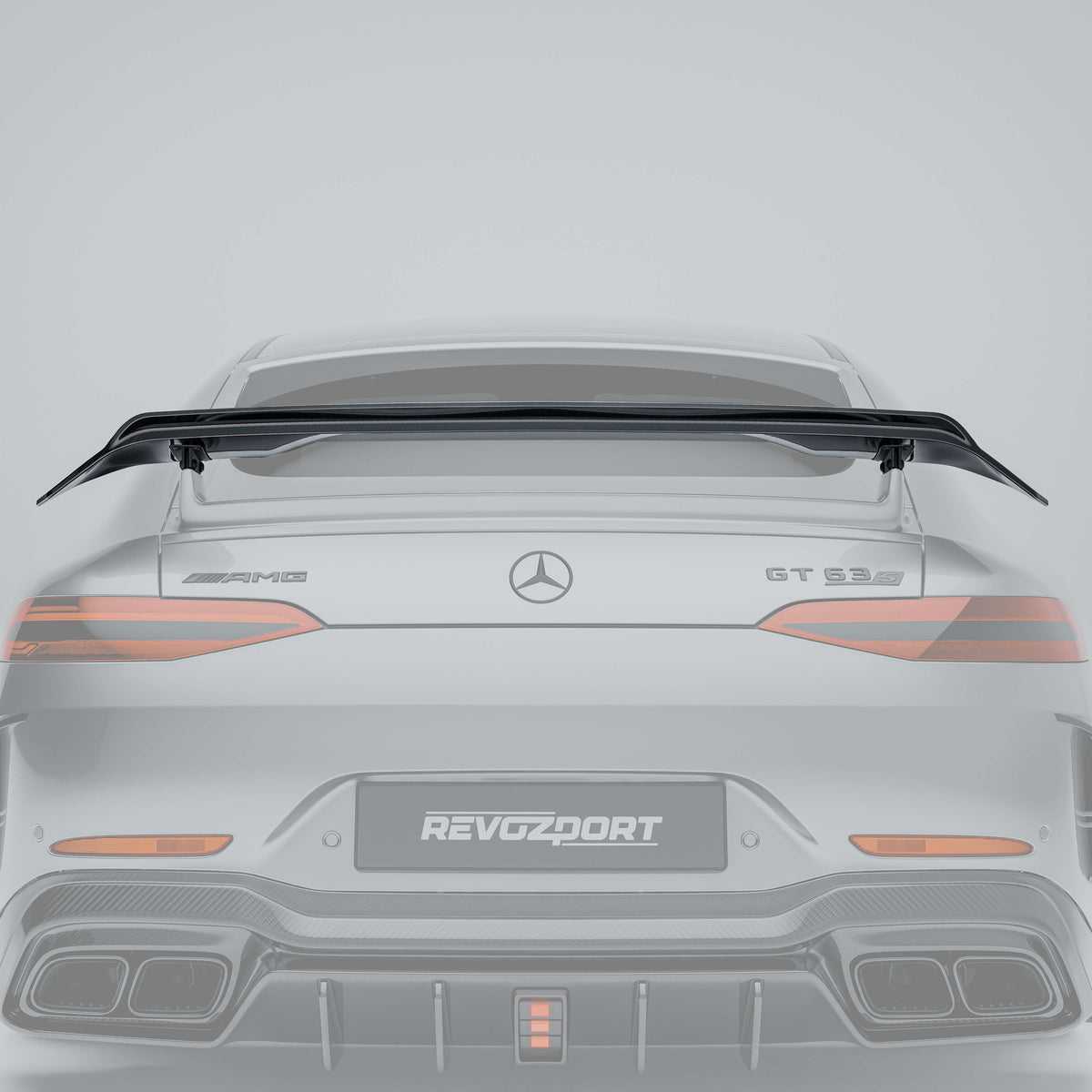

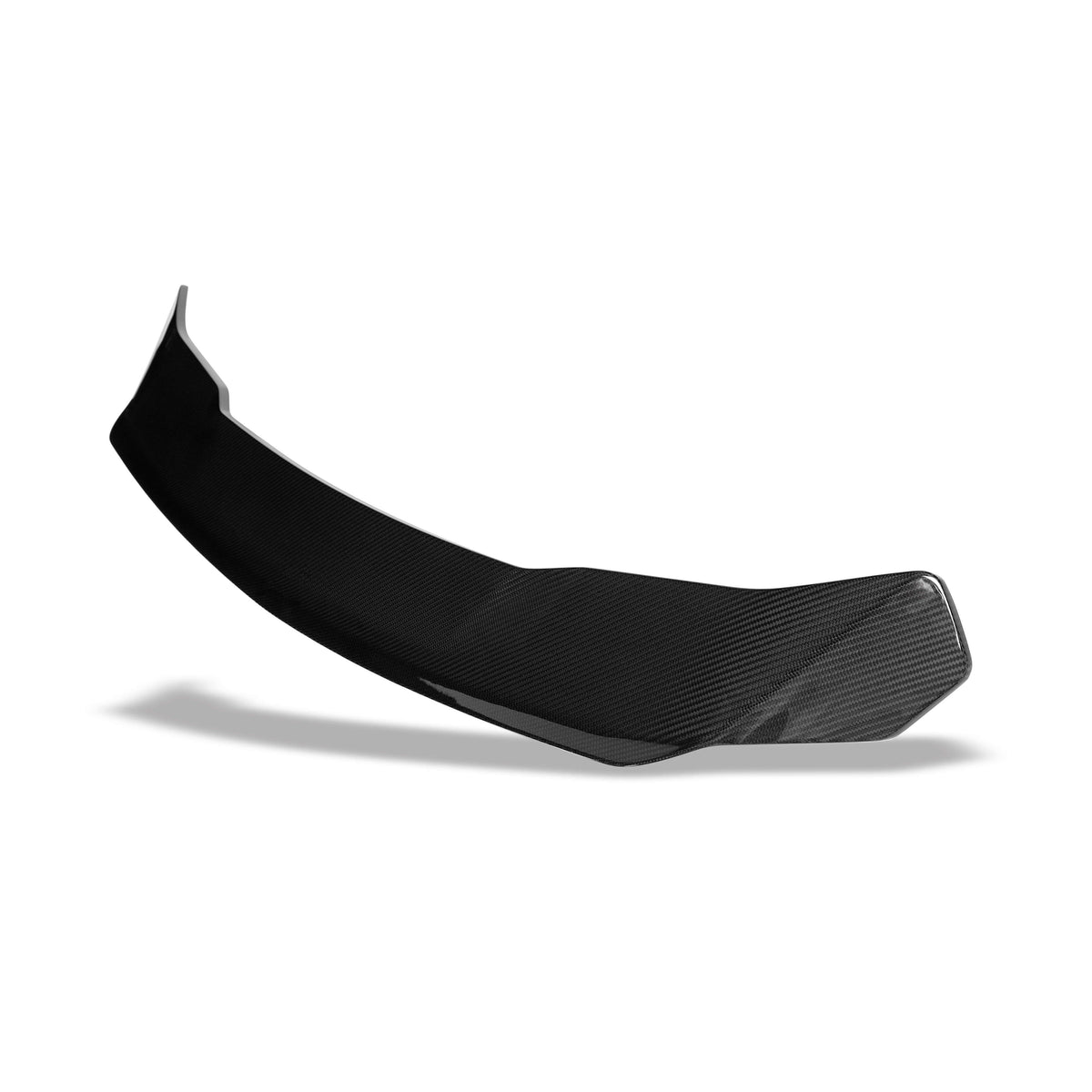

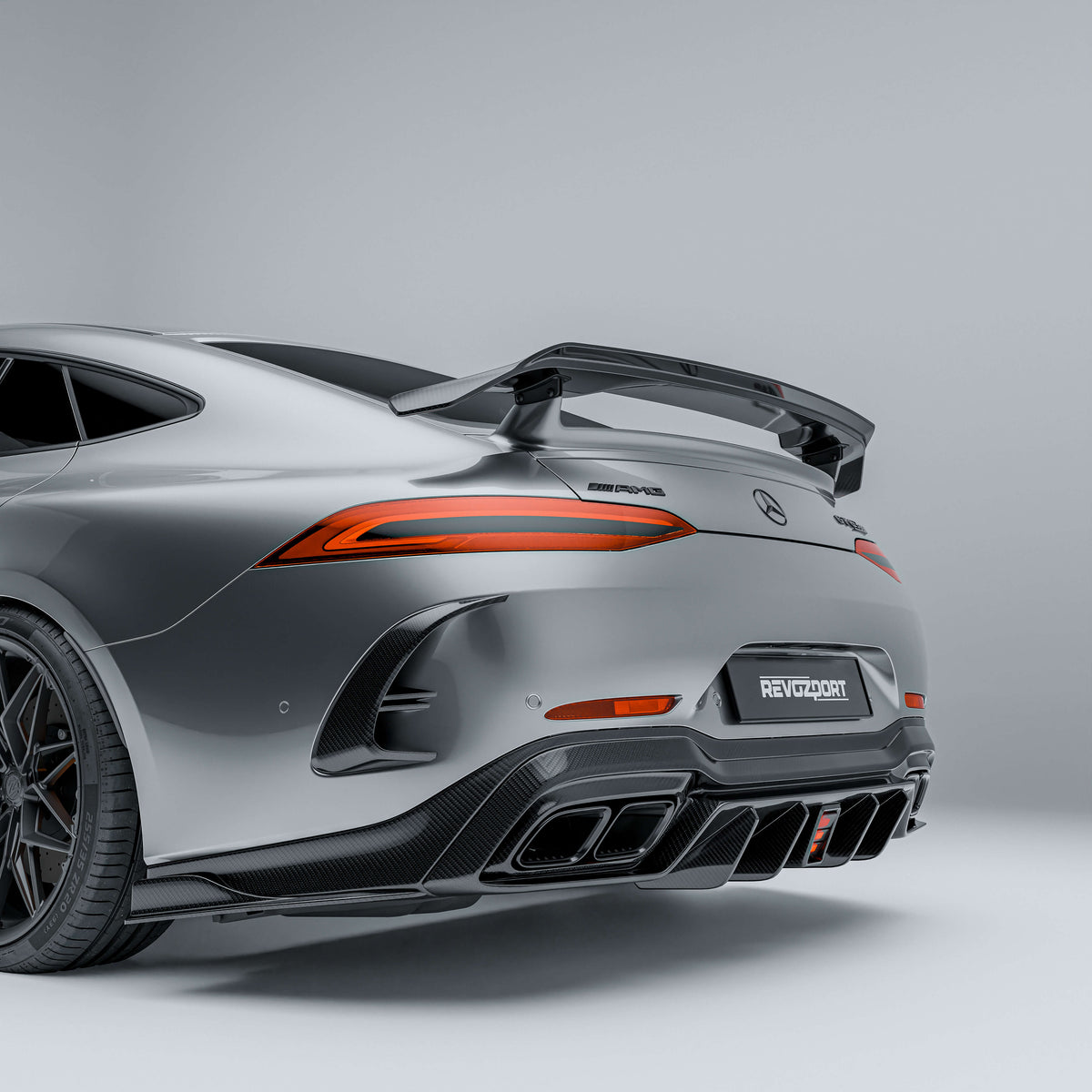

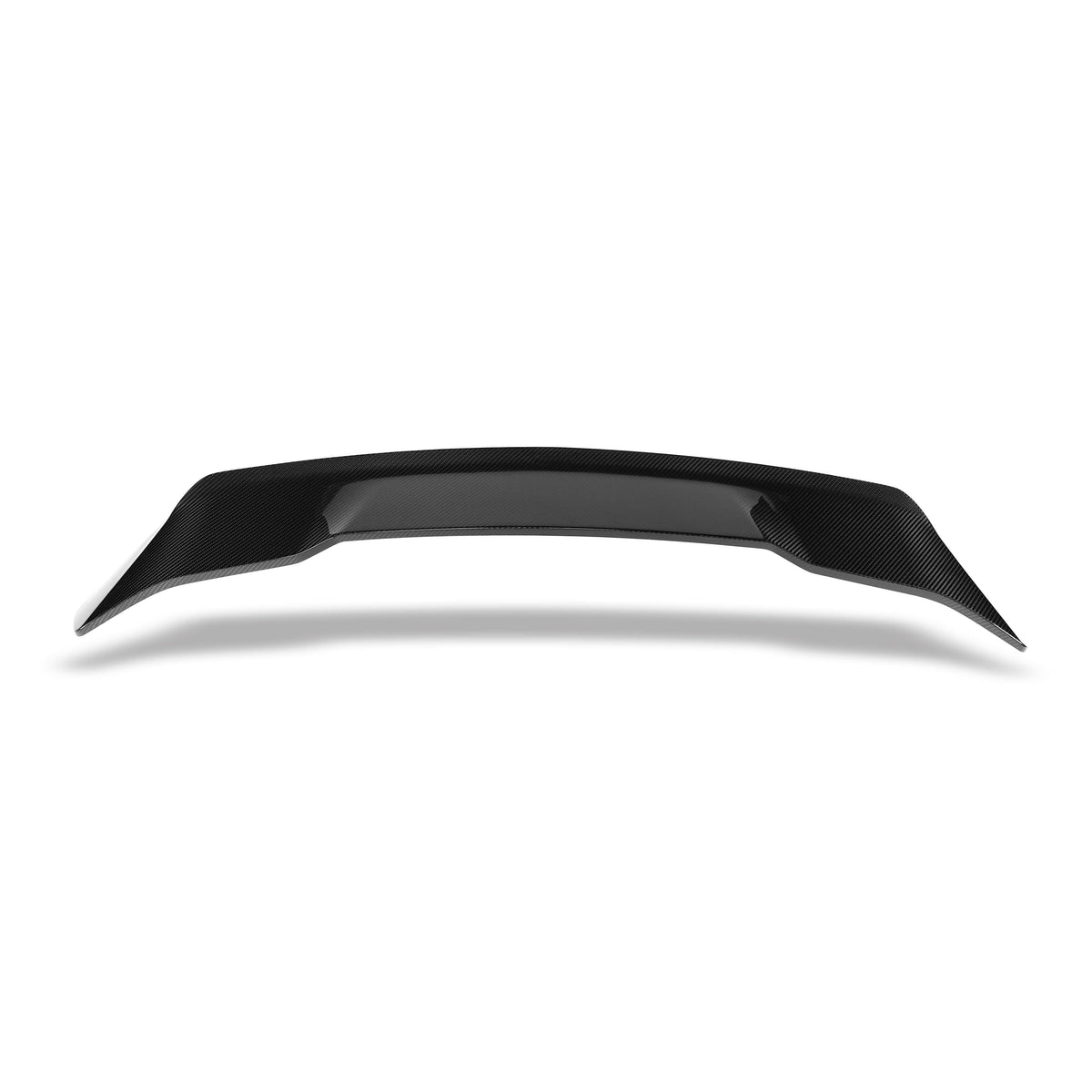

The GT 63 S X290’s four-door fastback shape already brings a strong presence, so exterior changes work best when they follow its existing lines. The REVOZPORT Street Program offers a six-piece carbon-fiber range for the front, sides, and rear. You can select parts separately or combine them for a coordinated exterior look. The range adds visible detail while keeping the original design as its starting point. Pre-preg carbon fiber is carbon-fiber material impregnated with resin before it is shaped and cured. Each part has a stated vehicle application, so your model details matter before you choose. Consider the amount of change you want, then match the selected part to the car’s exact application. Treat exact vehicle identification as the first step toward a well-matched exterior update. Key Takeaways The six-piece range covers the front, sides, and rear. Parts can be ordered separately or selected as a coordinated look. Check the exact model, year, and generation before ordering. Finish options include gloss, matte, and forged carbon. Three named parts have specific plug-and-play descriptions. How Do These Upgrades Follow the GT 63 S’s Original Lines? A coherent exterior treatment carries a visual line from the nose through the side profile to the rear. The Mercedes-AMG GT 63 S pairs four-door practicality with fastback proportions, so the front, side, and rear details need to suit one another. A vehicle-specific design can look more integrated than unrelated parts with competing shapes. REVOZPORT describes the Street Program as a set of front, side, and rear aero components brought together in one design approach. That description concerns the exterior treatment, not a measured performance result. The same idea applies when you choose only one piece: its outline should make sense beside the factory bodywork. For more ideas on matching exterior parts, a guide to BMW carbon-fiber upgrades compares restrained styling with more assertive designs. Its examples concern BMW models, not X290 fitment. Research on vehicle form and color also explores how people respond to exterior design through an automobile exterior design study. Use these three checkpoints to judge whether a group of parts feels balanced: Follow the bumper and body lines. Balance the visual weight at the front, sides, and rear. Decide whether carbon should read as one accent or a repeated theme. A restrained choice can preserve the car’s familiar shape, while repeated carbon details create a stronger theme. Neither approach is automatically right; the important point is consistency. Compare the outline of each part with the factory bodywork before choosing a combination. What Do Mercedes-AMG GT 63 S X290 Carbon Fiber Body Kit Upgrades Include? The range covers six separate exterior pieces, from a lower front lip to rear bumper details. Together, they address five vehicle areas, with two parts grouped at the rear in the table. The six pieces are add-on styling parts, not a widebody conversion. A Mercedes-AMG GT body kit can mean selected add-ons or a wider exterior package. Here, the body kit consists of six distinct parts for the stated X290 application. An AMG GT 63 mods project can focus on exterior appearance without suggesting a performance gain. Vehicle area Part or parts Visual contribution Front lower edge Front lip Defines the lower nose Front bumper Front bumper vents Adds localized front detail Lower sides Side skirts Extends the treatment along the profile Lower rear Rear diffuser Gives the bumper area a more structured look Upper and outer rear Rear spoiler; rear bumper canards Adds separate accents to the rear profile and bumper Listings and casual conversations may use AMG GTS as a broad label, but that term alone does not identify X290 fitment. Check the named vehicle application instead. Use the table to decide which area of the car you want to change first. What Does the Front Lip Change at the Nose? The front lip gives the nose a more defined lower edge by extending the bumper’s existing line. It is shaped for the original AMG GT 63 S bumper geometry. The part is a styling component, not a source of stated or measured aerodynamic performance. By continuing the bumper’s lower outline, the carbon fiber front lip can make the front view appear more grounded. The factory bumper remains the main shape, while the extension adds a distinct edge beneath it. This may suit you if the nose feels visually unfinished without changing its overall form. The X290 front lip is listed as product RZ-BC-1255. That code helps distinguish the part from other front-end options when comparing listings or discussing a selection. The name front lip describes its placement and style, not a promise about handling or airflow. Before choosing it, look closely at the lower bumper contours and nearby trim. A lip that follows those lines can appear connected to the car; a shape that clashes may stand out for the wrong reason. Check the front bumper shape closely when deciding whether this is the most visible first addition. How Do Front Bumper Vents Alter the Front Detail? Front bumper vents add detail higher on the nose than the front lip’s lower-edge treatment. The vents are a named component in the REVOZPORT X290 range and sit at the front bumper. They provide a localized carbon-fiber accent, not a stated airflow benefit. That position gives you a smaller front-end detail to consider alongside the lip or on its own. The vents can break up a broad bumper surface without making the whole front end the focus. Their visual effect depends on how much contrast you want against the surrounding bodywork. Keep the distinction clear when comparing front pieces: the vents add detail to the bumper area, while the lip changes the lower edge. Neither choice requires you to select the other. A front bumper can look more detailed with one focused accent than with several competing additions. Carbon fiber front details may draw more attention when repeated elsewhere on the vehicle. A single front accent can also suit a more restrained exterior plan. Consider the vents as a localized accent when a full front-end change would feel too prominent. What Do Side Skirts Add Along the Profile? Side skirts extend the visual treatment along the lower profile between the front and rear wheels. REVOZPORT lists carbon-fiber side skirts among the six exterior component categories for the Mercedes-AMG GT 63 S. They can carry the design theme along the sides instead of leaving a visual gap. The lower side profile connects the front and rear views, so skirts can help separate additions at each end feel related. Their long shape also makes them visible from a broad side view. Judge how that line follows the doors and lower body, not only the carbon surface itself. A side-focused selection can make sense if you do not want visible parts at both ends of the car. You might prefer to change the profile while keeping the front and rear closer to their factory appearance. That choice is still a deliberate exterior treatment, rather than an incomplete version of a larger package. Owners comparing body styles can see why exact vehicle shape matters in this BMW M3 body kit guide. Its Sedan and Touring examples concern BMW parts and do not establish Mercedes fitment. Judge the skirts against the car’s full side silhouette rather than the part viewed by itself. How Does the Rear Diffuser Shape the Back End? At the rear, the diffuser brings a more structured finish to the lower bumper area. The X290 part is designed around the original AMG rear-bumper structure. Its stated role here is visual styling, not a tested aerodynamic result. The lower rear is a broad area that can look more defined with a distinct carbon-fiber treatment. A diffuser designed around the bumper’s original structure can appear connected to that shape, rather than like an unrelated add-on. Its effect depends on how the new outline sits beside the rest of the rear trim. The product code for this rear diffuser is RZ-BC-1258. Use the name and code together when comparing product details, especially if several rear parts are under consideration. The term “diffuser” does not by itself show that a part has a measured effect on airflow. Look at the exhaust area and any trim already fitted before choosing the lower rear treatment. Their shapes can affect whether the diffuser appears balanced from behind. Check how the lower diffuser treatment will sit with the rear bumper and exhaust-area styling already on the car. What Role Does a Rear Spoiler Play? A rear spoiler draws attention to the upper edge of the car’s rear profile. The REVOZPORT Street Program names a carbon-fiber rear spoiler as one of its six X290 exterior components. Use the exact product name and vehicle application to judge whether a spoiler fits your car. The spoiler acts as an accent above the rear bodywork and can sharpen the fastback silhouette. Its visual role differs from a lower rear treatment, so the two parts can make separate changes to the back of the car. The word “spoiler” identifies the named component, not every wing-shaped part on the market. An AMG GT wing search does not establish that a particular wing or spoiler fits the X290. Wing and spoiler are related styling terms, but they are not interchangeable fitment claims. This matters when a listing uses a broad label without naming the exact vehicle application. Some listings also use terms such as AMG GTS or carbon fiber rear to describe a general style. Those labels alone do not confirm compatibility with this four-door model. Match the part name and vehicle application, not just a broad wing-style label, when comparing options. Where Do Rear Bumper Canards Fit Into the Design? Rear bumper canards add a focused detail to the outer areas of the rear bumper. The X290 rear canards follow the original AMG GT 63 S rear-bumper geometry. They offer a smaller rear accent than replacing the full diffuser area. The carbon-fiber pieces draw attention to localized parts of the bumper rather than changing the whole lower rear treatment. Their scale may suit you if you want a limited change at the back. Their stated role is visual, and the design is tied to the original bumper geometry. The product code for the rear bumper canards is RZ-BC-1260. That identifier can help you keep the canards distinct from other rear parts during selection. Bumper canards are a separate product category from a spoiler or diffuser, even when a complete rear look uses more than one. Consider how the outer bumper areas relate to the center section and any existing trim. A compact detail can look out of place if nearby contours already carry strong lines. Check the bumper’s existing contours to decide whether this small-scale rear accent suits the overall treatment. Should You Choose Individual Parts or a Coordinated Setup? Choose individual parts when you have one clear priority, and a coordinated setup when you want the exterior to read as a unified design. REVOZPORT offers the Street Program components separately or as a combined exterior selection. Choose the scope first, then select pieces that support that decision. Start With the Area You Want to Change A single part keeps the change focused on one area. A two-area combination can link parts without adding detail across the whole car. This route works when you have a clear preference, such as emphasizing the profile or adding a front and rear accent. Use one of these practical routes to set the scope: One focal part for a limited change. A two-area combination to connect selected views. A coordinated front, side, and rear look. The list describes different levels of exterior change, not different performance packages. Each part remains an add-on styling component. Your choice can reflect how much carbon you want visible and how many areas you want to alter. Build a Consistent Front-to-Rear Treatment Combining front, side, and rear details can create a repeated visual theme. The parts do not need to be equally prominent, but their outlines should feel related. For a broader discussion of coordinated choices, this Audi RS Q8 body kit guide describes selecting parts across several vehicle areas. Its products fit a different model and are not X290 components. An AMG GT 63 widebody kit or AMG GT widebody kit describes a different kind of change from these add-on parts. A widebody conversion changes the body’s width, often through wider fenders or arches; this range does not. An AMG GT GT3 body kit search also does not prove that these X290 parts are GT3 components. You can keep a coordinated look restrained by repeating a finish in selected areas rather than adding every part. A more complete setup can also make the carbon theme more visible from several angles. Decide your preferred scope before comparing finishes or ordering separate components. Which Carbon Fiber Finish Fits the Exterior? The stated material is pre-preg Toray carbon fiber, and finish selection is a separate styling decision. The available finish choices are gloss, matte, and forged carbon. These options describe appearance, not a claim about weight or performance. Pre-Preg Toray Carbon Fiber Pre-preg carbon fiber is carbon-fiber material impregnated with resin before it is shaped and cured. REVOZPORT states that its carbon-fiber products use pre-preg Toray carbon fiber. That material description does not, by itself, provide a weight figure or a performance result. If you are comparing material terms across products, a carbon-fiber body kit buying guide covers material, fitment, and installation checks. It helps explain why construction terms should not be treated as identical claims. Focus on the stated material and the exact part you plan to select. Gloss, Matte, and Forged Carbon Gloss, matte, and forged carbon are the three stated finish options. The names identify the listed choices, but they do not establish every detail of a particular product’s surface. A finish is a visual decision about how the part will appear beside the vehicle’s paint and trim. A separate comparison of matte and gloss carbon fiber discusses how those finishes can change the look of a build. The X290 range also lists forged carbon, so the comparison does not cover every listed choice. Select a finish that suits the look you want across the parts you plan to use. Custom Weave and Color Requests Custom weave patterns or colors may be available by special request. They are not stated as standard choices for every part. If you want a custom option, treat it as a separate request rather than assuming it comes with the listed finishes. Finish choice Stated availability Selection note Gloss Listed option Standard stated finish choice Matte Listed option Standard stated finish choice Forged carbon Listed option Standard stated finish choice Custom weave or color Special request Availability is not guaranteed Confirm the exact finish and any custom request before treating a combination as order-ready. How Can You Confirm X290 Model-Year Fitment? Verify the exact model, year, and generation instead of relying on the GT 63 S name alone. The product range is identified for the Mercedes-AMG GT 63 S X290. That stated application does not establish fitment for every year, trim, or body style. Identify the Exact Four-Door Coupe Start with the vehicle’s full model designation and body style. The Mercedes-AMG GT 63 4-Door Coupe is distinct from other vehicles that may share GT or AMG names. A similar badge or general model family is not enough to identify a compatible exterior part. Record the part you want alongside the vehicle details. A front component and a rear component can have different application notes, even when both belong to the same product range. Keep the selected component in view while checking the vehicle rather than treating the whole range as one fitment item. Verify Year and Generation Before Ordering A 2018 Mercedes-AMG GT 63 S X290 carbon fiber body kit upgrades question needs the exact vehicle checked. A 2021 Mercedes-AMG GT 63 S X290 carbon fiber body kit upgrades question needs the same care. The year alone does not establish that a specific part fits. Use this four-item checklist when confirming fitment: Exact model designation. Model year. X290 generation. Body style and selected component. Check that the details match the named application for the part you intend to order. Do not extend a fitment claim to another year or body style without a stated application. Resolve any mismatch in the vehicle details before selecting a component. What Should You Know About Mounting and Installation? The stated Street Program approach uses existing vehicle mounting points without cutting or drilling. REVOZPORT describes the components as application-specific with OEM-style fitment. That general approach should not be read as identical installation instructions for every part. Existing Mounting Points and Fitment Application-specific fitment means the component is described for a named vehicle application. Existing mounting points are part of the stated mounting approach. The details for a selected product still matter, so an installer should review the instructions for that part. Ask the installer these questions before work begins: Which existing mounting points does the part use? Does the exact vehicle match the stated application? What installation steps are needed for this selected part? Plug-and-Play Claims for Three Parts The front lip, rear canards, and rear diffuser are each described as plug-and-play with no trimming required. This specific wording applies to those three products. Do not assume the same plug-and-play description applies to every Street Program component. Part Stated installation description Trimming required Front lip Plug-and-play No Rear canards Plug-and-play No Rear diffuser Plug-and-play No These descriptions make the listed trimming requirement clear, but they do not replace product-specific installation steps. The term fiber body kit does not mean every part uses the same method. Confirm the installation details for each chosen part rather than assuming every component has identical instructions. How Much Do the Six Pieces Cost Individually? The six components have individual listed prices ranging from $689 to $2,775 in 2026. These are individual prices, not a package total or a promise about a coordinated-set price. The combined rear-details row shows separate prices for both listed parts. The front lip, side skirts, and rear diffuser have the highest listed prices among the six components. The rear bumper canards have the lowest listed price. Your total depends on which pieces you choose, not on a stated package rate. Vehicle area Part Listed price Front Front lip, RZ-BC-1255 $2,275 Front Front bumper vents $799 Sides Side skirts $2,075 Lower rear Rear diffuser, RZ-BC-1258 $2,775 Rear details Rear spoiler, $1,375; rear bumper canards, RZ-BC-1260, $689 $1,375 and $689 The rear-details entry lists two separate products, not one combined price. Each amount is an individual 2026 listed price. Adding selected parts can help you plan a parts total, but that sum is not a coordinated package quote. Check the component names and product codes against the items you intend to select. The listed prices distinguish each part, while the combined rear row keeps both rear accents visible. Compare the parts you actually plan to use rather than assuming the six individual prices form a package quote. What Warranty Coverage Applies to the X290 Parts? The stated product warranty for the front lip, rear canards, and rear diffuser lasts one year and covers manufacturing defects. Carbon-fiber products also have one-year coverage against UV clear-coat fading or peeling. These terms are not a general performance guarantee. The named manufacturing-defect warranty applies to three specific products: the front lip, rear canards, and rear diffuser. The UV clear-coat coverage is stated for carbon-fiber products. These are separate coverage points, so keep the product and issue clear when recording a concern. Manufacturing defects must be reported within 14 days of package delivery. That deadline begins when the package arrives, not when you later choose to fit the part. Keep the delivery date and any product details together for your records. One-year coverage does not mean that every issue or change in appearance has the same cause. The stated UV term names clear-coat fading or peeling, while the product warranty names manufacturing defects. Record the package delivery date and report a manufacturing defect within the stated 14-day window. What Should Buyers Check Before Ordering? Before ordering, confirm the exact part, finish, vehicle details, and delivery expectations. Shipping costs and delivery times vary by location and product availability. Retain the original packaging because it is part of the stated return conditions. Use this four-item pre-order list to keep the main details in one place: Confirm the selected component and vehicle details. Verify the finish and any special request. Ask about shipping cost and delivery timing for your location and product availability. Keep the original packaging after delivery. Shipments are fully insured, while shipping costs and delivery times can differ by location and stock status. Ask for the estimate that applies to your destination and chosen item. This gives you a clearer view of the order before it ships. If you need to return an item, contact REVOZPORT for authorization and instructions before sending it back. Eligible items must be unused and in original condition and packaging to qualify for a refund. The buyer pays return shipping costs. Keep order details and packaging together after delivery. That makes it easier to identify the part and preserve the condition required for a possible return. Keep the original packaging and obtain return instructions before shipping any item back. Conclusion A well-chosen exterior update should suit both the car’s proportions and the amount of change you want. One part can create a focused accent, while a coordinated selection can carry a consistent theme across the vehicle. The best choice is the one that follows the X290’s original lines and your preferred scope. Before ordering, match the selected part to the exact vehicle application and confirm its finish. Confirm the exact model, year, generation, and selected component before placing an order. FAQ How much does a full set of the six REVOZPORT pieces cost at the listed individual prices? The six individual 2026 prices add up to $9,988. That figure is the sum of listed individual prices, not a package price or a confirmed coordinated-set offer. The calculation includes the front lip, vents, side skirts, diffuser, spoiler, and rear canards. A selected combination will cost less than this sum when it includes fewer pieces. Can I install the front lip, rear canards, and rear diffuser without trimming? Yes, each of those three parts is described as plug-and-play with no trimming required. The front lip, rear canards, and rear diffuser have that specific stated description. It does not establish the same installation details for the front bumper vents, side skirts, or rear spoiler. Review the instructions for the exact product you choose. Which Mercedes-AMG GT 63 S model years fit the X290 parts? The exact model year range is not established by the X290 name alone. Confirm the model, year, and generation for your vehicle, then compare those details with the selected component’s stated application. Do not assume a year fits because another GT 63 S carries the same badge. The body style also matters when identifying the four-door coupe. Are custom carbon-fiber colors or weave patterns available? Custom colors or weave patterns may be available by special request, but they are not guaranteed standard options. The stated finish choices are gloss, matte, and forged carbon. If you want a custom selection, treat it as a request that needs confirmation for the specific part. Do not assume every custom look is offered across the full range. What does the one-year REVOZPORT product warranty cover? The stated one-year manufacturing-defect warranty applies to the front lip, rear canards, and rear diffuser. Carbon-fiber products also have one-year coverage against UV clear-coat fading or peeling. These are the named coverage terms, not a broad promise about performance or every possible issue. Manufacturing defects must be reported within 14 days of package delivery. Who pays return shipping for an eligible return? The buyer pays return shipping for an eligible return. The item must be unused and in its original condition and packaging to qualify for a refund. Contact REVOZPORT for authorization and instructions before sending anything back. Keep the packaging after delivery, since the stated return conditions include both the item’s condition and its original packaging.

A hard stop, a quick lane change, and a turn all change how firmly each tire presses against the road. Why can the same car feel settled one moment and unsettled the next? The answer helps you read changing grip and handling during everyday driving or performance driving. Understanding weight transfer in cars can help you anticipate what the tires may do as you brake, accelerate, or steer. It does not make public roads a place to test a car’s limits. Instead, it gives you a practical reason to use smooth inputs and leave room for changing conditions. Key Takeaways Tire loads change when you brake, accelerate, or steer. The vehicle’s total mass does not move between its tires. Load changes can affect grip and handling balance. Higher CG can increase load transfer for the same maneuver. Use smooth inputs on public roads, and leave a safety margin. Learn limit techniques only with qualified instruction on a closed course. Smooth, deliberate inputs help you keep more control when the available grip changes. What Is Weight Transfer in Cars? The car does not shed or slide its mass from one end to another; the tire loads change as forces act on the moving vehicle. Weight transfer describes changing tire loads, not a change in the vehicle’s total mass. Braking, acceleration, and steering change how firmly the four tires press on the road. The vehicle’s center of gravity (CG) is the point at which its mass can be treated as concentrated when describing how forces act on it. Newton’s first law describes inertia, the tendency of an object to resist a change in motion. As a car changes speed or direction, forces at its four tire contact patches affect the load each tire carries. Imagine placing one bathroom scale under each tire. The readings would change during braking, acceleration, or a turn, even though the car’s mass remained the same. The scales illustrate load changes, not a literal shift of the car’s mass from one side to another. Three common driver inputs create changing loads: Pressing the brake pedal slows the car. Pressing the accelerator increases forward acceleration. Turning the steering wheel changes the car’s direction. These forces change car balance because the four tires do not carry equal loads in every situation. The difference can be temporary, such as during a quick stop, or sustained through a steady turn. Think of weight transfer as a change in how the four tires share the vehicle’s load, not a change in the vehicle’s total mass. What Causes Weight to Shift During Acceleration and Braking? Pressing the accelerator creates a rearward load shift because the car’s inertia resists the change in forward motion. Acceleration moves load toward the rear axle, while braking moves load toward the front. The formula for weight transfer in cars depends on acceleration, CG height, and wheelbase. The tire contact patches apply forces where the rubber meets the road. Inertia acts through the CG as the car’s motion changes, which helps explain why the front and rear loads change. Acceleration is what causes a vehicle’s weight to go to the back, although the vehicle’s mass does not physically slide rearward. For a simple longitudinal load transfer estimate, use this formula: transfer = mass × acceleration in g × CG height ÷ wheelbase. Mass is the vehicle’s mass, acceleration in g compares acceleration with gravity, CG height is the center’s height above the road, and wheelbase is the distance between the axles. For example, consider a 1,000 kg vehicle with a 0.6 m CG height and a 2.7 m wheelbase. At 1g acceleration, the calculation is 1,000 × 1 × 0.6 ÷ 2.7, which gives about 222.22 kg of transfer from front to rear. The result describes a change in axle loads, not the car’s total mass. Follow these steps when using the formula: Enter acceleration in g. Multiply it by the vehicle’s mass and CG height. Divide the result by the wheelbase. Interpret the direction: positive acceleration shifts load rearward. Use a negative acceleration value for braking, which shifts load forward. In these calculations, acceleration is positive and braking is negative. The direction tells you which axle gains load and which loses it. Treat the worked result as a change in load between axles, not as mass physically sliding through the cabin. How Do Longitudinal and Lateral Weight Transfer Differ? Longitudinal transfer changes the front-to-rear load split, while lateral transfer changes the inside-to-outside split. Braking and acceleration create longitudinal load transfer; cornering creates lateral load transfer. The terms describe different directions of load change. Longitudinal load transfer is associated with the car’s pitch, such as its nose dipping during braking. Lateral load transfer is associated with roll, such as the body leaning through a turn. Body motion is visible movement; tire load is the changing force pressing each tire into the road. Maneuver Transfer direction Common body motion Tire-load effect Braking Rear to front Dive Front tires gain load; rear tires lose load Acceleration Front to rear Squat Rear tires gain load; front tires lose load Cornering Inside to outside Roll Outside tires gain load; inside tires lose load When a car corners, the lateral calculation describes the total transfer across the vehicle. It does not directly give the load on each individual wheel. The tires’ starting loads and the car’s suspension also shape how the change is shared. Forward or backward weight transfer is called longitudinal load transfer, regardless of whether the vehicle is braking or accelerating. How Does Weight Distribution Affect Different Drivetrains? Weight distribution describes the vehicle’s starting load split, while drivetrain layout determines which tires receive engine torque. Drivetrain layout does not change the basic direction of acceleration load transfer, which is rearward. It does affect which tires must share drive force with steering or other tasks. Many production vehicles have a front-heavy weight distribution around 60/40 front to rear. The tendency for vehicles to carry most of their weight at the front is called front weight bias. Unloaded pickups commonly carry about 60-65% of their weight over the front axle. Drivetrain Driven tires Acceleration load shift Practical tendency FWD Front Rearward Front tires may have less steering and drive traction under hard acceleration RWD Rear Rearward Rear tires may gain acceleration traction as front steering load falls AWD All four; torque split varies by design Rearward Torque split and vehicle balance shape how traction is shared A 50/50 front-to-rear split is one example of balance, not a universal performance ideal. Vehicle layout sets the starting point, while passengers and cargo can change the static distribution. A load placed behind the rear axle can affect balance differently from the same load secured near the center. A front-heavy car can still handle well, and a near-even split does not guarantee strong grip. Tire condition, suspension, and road conditions also matter. For another factor at speed, see this guide to front-to-rear downforce balance, which is related to but distinct from static weight distribution. Treat front-heavy or rear-heavy tendencies as a starting point, not a prediction that overrides the vehicle’s actual setup and conditions. How Do CG Height, Wheelbase, and Track Width Affect Load Transfer? A taller CG increases the leverage that acceleration has on the vehicle, so more load shifts for the same maneuver. CG height works with wheelbase for front-to-rear transfer and with track width for side-to-side transfer. Track width is the distance between the left and right tires on an axle. A higher CG creates a longer lever arm as the car brakes, accelerates, or corners. That leverage increases the load change for the same maneuver. A vehicle’s CG height relative to its track determines side-to-side load transfer, while its height relative to its wheelbase determines front-to-rear load transfer. Why CG Height Changes the Load Shift Lowering the CG can reduce the leverage that acts during load transfer, but ride height alone does not tell you the exact CG. A low CG in modern cars is typically under 18-20 inches above the ground. That range is a general description, not a specification for every car or model year. Examples show how much CG height can vary by vehicle. The 2014 Chevrolet Corvette (C7) Z51 had a listed height of 44.5 centimetres (18 inches). The 2013 Alfa Romeo 4C had a listed height of 40 centimetres (16 inches). How Wheelbase and Track Width Set the Lever A longer wheelbase reduces the front-to-rear lever effect for a given CG height and acceleration. A wider track reduces the side-to-side lever effect for a given CG height and cornering force. Geometry matters alongside acceleration, not as a stand-alone measure of handling. Vehicle and model year CG height in centimetres CG height in inches Vehicle type 1987 Dodge Ram B-150 85 33 Pickup 1998 Chevrolet Tahoe 72 28 SUV 2000 Lotus Elise 47 19 Sports car 2014 Tesla Model S 46 18 Sedan 2017 Formula 1 car 25 10 Race car The inch figures appear as given, including rounding. For high-profile vehicles, crosswinds can add another lateral force, especially on open roads and bridges. Read about crosswinds and road-surface effects for more on stability in those conditions. Compare a vehicle’s CG with its own wheelbase or track rather than judging transfer from ride height alone. How Does Weight Transfer Affect Tire Grip? A tire generally gains grip as its vertical load rises, but it does not gain grip in direct proportion to that extra load. Adding load to one tire does not create an equal increase in the vehicle’s total available grip. This effect is called tire load sensitivity. As load increases, a tire can produce more grip, but its grip rises less quickly than its workload. That means a heavily loaded tire may contribute more than it did before, yet it does not fully make up for the grip lost by a tire that becomes lightly loaded. During a turn, the outside tires gain load and the inside tires lose load. Those gains and losses do not simply cancel. The combined capability of the tire pair or whole vehicle can fall as load becomes more uneven. Grip also depends on tire condition, road surface, and available traction. Worn tires, cold pavement, standing water, or loose gravel can change the result, even when the car’s load shift stays similar. Tire pressure and the tire’s design also affect how it responds to load. Downforce can add tire load at speed, but it is not the same as weight transfer. A well-shaped BMW G87 M2 aerodynamic body kit aims to manage airflow and add downforce. Aerodynamic load depends on speed and design, so it should not be confused with a change in the vehicle’s mass. Other parts can affect tire loading and contact consistency. Wheel weight contributes to unsprung mass, the suspension parts that move with the wheels. A track wheel should match the tire and clear the vehicle’s components, rather than being chosen by appearance alone. More load on one tire does not guarantee more usable grip across the whole vehicle. What Do Suspension and Damping Change? Suspension tuning influences how quickly the body moves and how load transfer is shared between axles, but it cannot erase the forces created by a turn. Springs and anti-roll bars affect roll stiffness; dampers control how quickly suspension movement happens. The distinction matters when you assess handling over a brief transition versus a steady corner. Lateral load transfer has three mechanisms: unsprung-mass transfer, direct lateral-force transfer through suspension geometry, and elastic transfer linked to body roll and roll stiffness. Geometry, springs, anti-roll bars, and dampers all affect how the car responds to changing loads. How Springs and Anti-Roll Bars Affect Load Sharing Springs and anti-roll bars resist body roll and help set roll stiffness. Their front-to-rear balance can change how lateral transfer is shared between the axles. Suspension tuning can alter that distribution, but it cannot remove the total transfer set by vehicle geometry and acceleration. A 50% cross-weight target is a common race-car setup baseline, not a rule for every road car. Cross-weight describes a setup relationship between diagonal wheel loads. Road cars also need to work across different passengers, cargo, roads, and tire conditions. Engineers can estimate tire loads with models that account for roll-stiffness distribution. A published vehicle-dynamics research study describes a method using a quasi-static load-transfer model and estimates tire forces from load distribution. What Dampers Control During a Transition Dampers resist suspension movement and shape how quickly the body settles after steering, braking, or a bump. They affect the transition, not the steady-state amount of load transfer in a sustained maneuver. A firmer damper may slow movement without reducing the final load change. For track use, change one setting at a time and compare results under repeatable conditions. A methodical coilover setup process can help separate ride-height changes from damping effects. A flatter-looking body does not by itself prove that the tires are carrying less load.   How Can Weight Transfer Lead to Understeer or Oversteer? If the front tires reach their grip limit first, the vehicle tends to understeer; if the rear tires reach it first, it tends to oversteer. The end of the car that reaches its grip limit first is the key diagnostic. These are possible responses near the limit, not guaranteed results of every driving input. Understeer means the front tires lose the grip needed to follow the driver’s steering path. Oversteer means the rear tires lose grip before the front tires. A shift in tire load can contribute, but tire condition, vehicle balance, drivetrain, suspension, road surface, and driver inputs all affect the outcome. Braking can unload the rear tires, which may contribute to oversteer if the rear axle reaches its limit. Acceleration can unload the front tires, which may contribute to understeer if the front axle loses needed grip. Neither response follows automatically from normal braking or acceleration. Drivers should also keep aerodynamic balance separate from weight distribution. At speed, a front-to-rear downforce imbalance can affect handling in a different way from a temporary load shift. The same car can respond differently as speed, tires, and road conditions change. A slide signals that the tires have less available grip than the driver’s input demands. Avoid treating an unexpected change in direction as a cue for a sudden correction. Treat a slide as a loss of available grip, not as a signal to add an abrupt steering or pedal input. How Should Drivers Manage Weight Transfer Safely? On public roads, the safest way to manage load changes is to leave a margin and make steering and pedal inputs smooth. You cannot switch off weight transfer, but you can avoid provoking sharp changes in tire load. Choose a speed that fits the road, visibility, traffic, and available traction. Use these everyday habits: Look ahead and slow before a turn. Brake and steer progressively. Leave space for sudden stops. Avoid abrupt throttle changes in a turn. Smooth Inputs on Everyday Roads Give yourself time to react when traffic slows or a road surface changes. Rain, gravel, worn pavement, and crosswinds can reduce a car’s margin. Smooth driving does not prevent load transfer; it helps control how quickly the load changes. Static Stability Factor (SSF) compares half the track width with CG height: SSF = (track width ÷ 2) ÷ CG height. Typical reported SSF values are 1.3-1.5 for passenger cars and 1.0-1.3 for SUVs. The NHTSA rollover-resistance report describes SSF as a screening measure, not a guarantee of rollover safety. Trail Braking and Throttle Control on a Closed Course Trail braking means gradually releasing brake pressure during turn-in. Trained drivers use it on a closed course, where they can learn the technique with an instructor and room to recover. It is not a public-road method for ordinary turns. On a closed course, a driver can also apply throttle progressively as the car exits a corner. The timing depends on grip and the vehicle’s response. Do not practice trail braking, threshold braking, or limit handling in public traffic. Rollover accounts for 34% of SUV occupant deaths versus 21% of passenger-car occupant deaths; the data year is not specified. Those figures describe a reported share, not a prediction for any one trip. On an unfamiliar or low-grip road, reduce speed before the turn rather than relying on a technique that needs a precise grip margin. What Do Real-World Examples Reveal About Weight Transfer? A routine stop demonstrates the same frontward load shift that engineers account for in higher-performance settings. Braking increases front tire load and reduces rear tire load. The tires still support the same vehicle mass, but the front and rear axles carry different loads during the stop. That shift can affect how the car responds if the driver brakes while turning. The front tires have more load, while the rear tires have less. The amount of grip available still depends on the tires, road, and braking force. In the mid-1960s, Funny Car racers moved the CG rearward to put more load on the rear wheels. The goal was to improve traction with bias-ply slicks. This change altered the car’s starting balance before acceleration created another rearward load shift. NHRA initially treated Funny Cars as a passing fad and tried to legislate the class out of existence. It placed Funny Cars first in gas dragster classes and then in fuel dragster classes. That history does not mean one specific car was banned. Modern car design also balances airflow and load. For instance, a body kit’s mass and aerodynamic effect are separate factors, and a single part may not improve handling by itself. The Funny Car example shows that deliberately changing the starting balance can matter as much as responding to a temporary load shift. Which Weight-Transfer Myths Should Drivers Avoid? The most useful correction is also the simplest: the vehicle’s mass stays the same while the tire loads change. Load shifts occur during braking, acceleration, and cornering, but the car still acts through its four tire contact patches. A few common myths can lead drivers to misread the vehicle. Keep these four points in mind: The car’s mass does not move from tire to tire. Visible body roll does not directly measure total lateral load transfer. Loading one tire does not create an equal increase in total grip. Smooth inputs manage the rate of load change but do not stop transfer. A car can roll visibly without showing exactly how much load each tire carries. Suspension design and movement shape what you see, while tire loads depend on forces and geometry. Likewise, a car with little visible roll can still have changing loads across its tires. These points matter when judging a setup or responding to a turn. A quick change in steering may create a sharper load change, even if the body looks calm. Judge the car by its response and the conditions, not by how much the body appears to move. Conclusion Your most useful takeaway is that tire loads change dynamically, but the vehicle’s total mass does not. Braking, acceleration, and cornering alter the load each tire carries, which can affect grip and handling. On everyday roads, practice smooth inputs and leave generous margins for traffic and changing conditions. If you enjoy performance driving, learn limit techniques only with qualified instruction in a controlled environment. On your next drive, focus on looking ahead and making each steering, braking, and throttle input smooth. FAQ What transfers weight from one point of the vehicle to another? Inertia resists acceleration while tire forces act at the road, changing the loads at the four tire contact patches. The vehicle’s mass does not travel from axle to axle. Instead, braking, acceleration, or steering changes how the car’s load is shared. The size and direction of that change depend on the maneuver and the vehicle’s geometry. What car was banned from NHRA? No single car represents the full story: NHRA tried to legislate Funny Cars out of existence by placing them in gas and then fuel dragster classes. That was a class-placement response, not a simple ban of one named car. Funny Car racers had changed their cars to improve rear-wheel traction, which helped make the class distinct. Does 100 pounds make a difference in a car? Yes, 100 pounds can affect a car’s load and balance, especially when added high or far from the vehicle’s center. The effect depends on the car’s mass, where the added load sits, and driving conditions. A secured load near the center usually affects balance differently from the same load on a roof rack or behind the rear axle. Is 4000 lbs a heavy car? Four thousand pounds is heavy compared with a compact car, while some larger cars and SUVs can reach that weight. Vehicle class is the useful comparison because body size, powertrain, and equipment differ. The number alone does not tell you how a car handles or stops. Tire condition, brakes, load placement, and road conditions also shape its response. Does weight transfer change how much grip the tires have? More tire load generally increases that tire’s grip, but tire load sensitivity means grip rises less quickly than load. A tire that gains load may add grip, while a tire that loses load may lose grip. Those changes do not cancel in a simple one-for-one way. Tire condition and the road surface also affect the grip available to the car. Can smooth driving prevent weight transfer? No, smooth driving cannot prevent weight transfer because braking, acceleration, and cornering still change tire loads. Smooth inputs control how abruptly those loads change, which helps the car respond in a more predictable way. Looking ahead and slowing before a turn can also leave more room for a sudden stop or a lower-grip patch of road.

A car that drifts wide or swings at the rear in a turn is telling you that its tires may have run short of grip. Could the steering wheel alone bring the car back? Not always, and a sudden correction can make things worse. Understeer vs oversteer describes two ways a car can stop following your intended path. Handling depends on the car, tires, speed, and road conditions, so the same turn can feel different on another day. This guide helps you recognize which end is losing grip and choose a safer response. You do not need to test your car’s limits to understand its behavior. Prevention and calm choices matter more than pushing a car hard. Key Takeaways Understeer means the front tires lose grip first and the car pushes wide. Oversteer means the rear tires lose grip first and the car rotates more. Speed, steering, throttle, tires, and road conditions all affect available grip. Smooth inputs and active safety systems can help reduce risk. Check tire pressure, tread, and damage before your next trip. On public roads, leave a safety margin rather than trying to discover the car’s limits. Understeer vs Oversteer: What Each Feels Like If the front of the car keeps traveling wide of the turn, it is understeering; if the rear swings outward, it is oversteering. The difference between understeer and oversteer in a car is which axle loses grip first. Both change the car’s path when its tires reach their grip limit. A tire’s slip angle is the difference between the direction it points and the direction it is actually traveling. The two axles can respond differently, even during one turn. When the front pushes wide With understeer, the car turns less sharply than you intend. You may feel the steering wheel become lighter or less responsive, but sensations vary by car. Steering harder does not necessarily make the car turn more after the front tires lose grip. More steering can ask those tires to do more than they can manage. When the rear steps out With oversteer, the rear tires lose grip first and the car rotates more than intended. You may feel the seat shift sideways or notice the rear moving, though not every driver feels the same cue. Both conditions involve a change in direction, but they begin at different ends. The understeer oversteer distinction is easier to spot when you notice which end moves away from its intended path. Condition End losing grip first Path or feel Basic distinction Understeer Front Pushes wide Turns less than intended Oversteer Rear Rear moves outward Rotates more than intended What both share Either axle Path changes Tires reach grip limit The key clue is which end loses grip first, not whether the car is front-, rear-, or all-wheel drive. What Commonly Triggers Understeer? A driver who enters a tight curve too quickly may find that turning the wheel farther does not bring the nose back onto the intended path. Understeer happens when cornering demand exceeds the grip available to the front tires. Speed, steering, and throttle are three useful inputs to examine. A wet, tightening curve shows how quickly the margin can shrink. A speed that seemed fine at the curve’s start may be too high as the bend tightens or the surface gets slick. Braking while turning also uses grip that the front tires need for cornering. The tires have a limited supply, and combining demands can exceed it. Abrupt steering can overwhelm the front tires before the car settles. Adding more steering than they can support may increase the push instead of tightening the turn. Hard acceleration before the car is settled can also affect front traction. This can matter in a FWD car, where the front wheels steer and transmit engine power. FWD may be more prone to front-end push under some conditions because the front tires handle both tasks. Understeer remains possible in any drivetrain, including RWD and AWD. Use these three trigger groups to think through what may have raised the demand on the front tires: Excessive speed for the turn or the road conditions. Abrupt steering input or more steering than the tires can support. Acceleration or braking that overloads the front tires. Traction can change within one corner, especially when the road surface is wet or uneven. A sudden change in steering, throttle, or braking leaves less room for the tires to respond. If the car begins to push wide, reduce the demand on the front tires rather than adding steering lock. Why Does Oversteer Happen? When the rear tires lose their grip during a turn, the back of the car can swing outward and the vehicle can rotate more than you intended. Oversteer begins when the rear tires cannot support the forces acting on them. Power, braking, and a sudden throttle change can all play a part. Power oversteer can happen when engine torque exceeds the rear tires’ available grip. It is more associated with RWD because its rear wheels receive engine power. Abrupt braking during a turn can shift load forward and reduce grip at the rear. A sudden lift from the accelerator can also shift load forward, leaving the rear feeling light. Picture a car on a damp bend when its driver suddenly lifts off the accelerator. The rear may feel light or move outward, but the exact response depends on vehicle design and conditions. FWD cars can also oversteer, including through lift-off or on a slippery surface. AWD does not rule it out either, since road grip and driver inputs still matter. These are three common triggers to recognize, not techniques to practice on public roads: Too much power for the grip available at the rear tires. Abrupt braking while turning. A sudden lift from the accelerator during a turn. A quick change in one input can affect the rear even when the car is traveling at modest speed. Damp pavement, snow, or loose gravel can make a small change more important. A sudden throttle change can upset rear grip even when the car is not rear-wheel drive. How Tires, Weight, Setup, and Roads Change Grip The same car can respond differently from one turn to the next because its tires, load distribution, and road surface determine how much grip is available. Grip depends on the tires and the conditions around them, not just the car’s design. That is why handling can change without any change to the driver’s route. Tires connect the car to the road, so tread, pressure, and wear affect how well they can respond. A damaged tire or uneven wear can also change the grip available from one wheel to another. Tire condition and front-to-rear grip Front and rear tires do not always have the same tread or condition. Mismatched grip from one axle to the other can affect which end loses traction first. A 2012 NHTSA study using crash-scene data found tire problems before crashes were more likely when one or more tires were underinflated or had inadequate tread depth. That finding does not mean any one tire issue will cause a crash. Pressure matters, but the right target is the vehicle’s recommended pressure, not a number guessed from the tire sidewall. Tread depth, visible damage, and wear patterns also give useful clues. Weight transfer through a turn Braking, acceleration, and cornering move load among the tires. Braking shifts load toward the front, while acceleration shifts it toward the rear. Added load does not give a tire a simple one-to-one increase in grip. A heavily loaded tire cannot always make up for reduced grip at another tire. Weight transfer depends on what the car is doing at that moment. A quick brake or throttle change can move load faster than a smooth input. Suspension and vehicle setup Springs and anti-roll bars help shape how the car responds as it turns. Their balance can influence whether the front or rear reaches its grip limit first. Suspension setup is a tuning influence, not a universal fix for understeer or oversteer. Changing springs or anti-roll bars without expertise can create other handling problems. Vehicle makers balance parts for a range of uses and conditions. A change that helps one car or one track may make another car less stable on public roads. Wet, icy, and loose surfaces Rain, standing water, ice, snow, and loose gravel reduce or change the grip available to the tires. Wet conditions can make an ordinary corner demand more care than dry pavement. Water can build between a tire and the road, while ice offers very little grip. Loose gravel can shift under the tire, so steering and braking may feel less predictable. A speed that feels manageable on dry pavement may be unsafe on a slick surface. Reduce speed before a turn, since sudden braking or steering can use grip the tires need. Crosswinds can also push a car sideways and affect stability, especially as speed rises. Taller vehicles with larger side profiles can feel that force more strongly; crosswinds and road surface effects can add another factor. Check tire pressure against the vehicle placard and inspect tread and visible damage before relying on the car’s handling. How FWD, RWD, and AWD Change the Tendency FWD cars may tend toward front-end push and RWD cars may be more susceptible to power-related rear slides, but neither tendency is a rule. Drivetrain affects which wheels receive engine power, but it cannot decide handling on its own. Tires, speed, and road grip also shape the result. FWD, RWD, and AWD are three common drivetrain layouts. Each can understeer or oversteer when its tires reach their grip limit. Layout Wheels receiving engine power Common tendency Route to opposite behavior and qualification FWD Front wheels Front tires steer and receive power Lift-off or slippery conditions can bring rear movement RWD Rear wheels Power can reduce rear grip Front push can still occur with limited front grip AWD Both axles, varying by vehicle Power delivery differs by design Either end can lose grip; AWD does not prevent it The front tires in a FWD car steer while also transmitting engine power. That can place a high demand on front grip, though it does not guarantee understeer. In an RWD car, engine power reaches the rear wheels and can contribute to rear grip loss. But RWD cars can push wide, too, if the front tires cannot support the turn. AWD systems vary in how they send power across the axles. Sending power to more wheels can help use available traction, but it cannot create grip beyond the road’s limit. Braking and a sudden lift from the accelerator can affect load in every layout. Tires, suspension, electronic systems, and road conditions can change the expected behavior as well. Do not use drivetrain alone to predict how a car will respond. Learn what its safety systems do and follow the handling guidance in its owner’s manual. Treat the drivetrain as one clue about the car, not a substitute for knowing its tires, safety systems, and handling guidance. How to Respond Safely to a Slide If a car starts sliding, avoid the instinct to make a sudden, larger input that asks already-slipping tires to do more. Smooth, small actions are safer than abrupt steering, braking, or throttle changes. The right response depends on the car, surface, speed, and severity. For ordinary road driving, mild understeer is generally more intuitive for many drivers to recognize and respond to. Oversteer can demand faster, more practiced correction, and neither condition is safe to provoke. If the front pushes wide If the front pushes wide, ease off the accelerator smoothly and reduce the steering angle slightly. Do not wind on more steering lock when the front tires are already slipping. Avoid hard braking while the car is turning. If you are already braking, avoid adding abrupt brake pressure, which can ask the tires to manage even more. Once the front tires regain grip, the car may begin turning more sharply. Keep your inputs measured, since the exact response varies with speed and road surface. If the rear starts to slide If the rear starts to slide, look toward a safe path and make a gentle steering correction in the direction the rear is sliding. Avoid sudden throttle or steering changes. Too much correction can make the car swing the other way and start a second slide. The amount of correction needed depends on the car and how much grip remains. General advice cannot cover every car or emergency. Your owner’s manual and professional instruction take precedence over these broad steps. Priorities when grip is lost Keep these priorities in mind if grip starts to fade: Keep your eyes on a safe path. Use smooth steering, braking, and accelerator inputs. Leave ESC enabled on public roads. Keep both hands on the steering wheel when practical. GEICO’s steering guidance recommends both hands, preferably at 9-and-3. If you cannot regain control, focus on avoiding people and obstacles. Stop safely when possible, and do not make a sharp move toward traffic or a roadside hazard. Keep both hands on the wheel at 9-and-3 when practical, and follow the owner’s manual for vehicle-specific guidance. How to Reduce the Risk Before You Drive Before a trip, a quick tire and road-condition check can reduce the chance that an ordinary turn becomes a grip problem. Set your speed and inputs for the conditions you have, not the conditions you expected. A brief check can catch issues that make handling less predictable. Start with the tires, then think about the route and weather. A small amount of planning can help you keep more room to respond. Check tires and vehicle condition Check tire pressure against the vehicle placard and inspect tread for wear. Look for visible damage, such as cuts or bulges, before driving. Follow the vehicle’s recommended maintenance schedule. Pay attention to changes in steering, vibration, or braking, and arrange an inspection if the car no longer feels normal. A quick tire check does not replace routine care. It can help you spot a pressure or damage concern before a turn puts extra demand on the tires. Leave a margin for road conditions Reduce speed before entering a turn, then use smooth steering, braking, and accelerator inputs. Sudden actions can demand more traction than the tires have available. Leave extra margin in rain, snow, ice, standing water, and loose gravel. A road that looks clear can still have slick patches or changing grip. Wet conditions may also reduce visibility and make it harder to judge the road ahead. More space gives you extra time to see a change and adjust calmly. Crosswinds and uneven pavement can affect stability, too. High-speed crosswind effects can be stronger for taller vehicles with larger side profiles. Keep safety systems active ESC can detect loss of control and selectively brake individual wheels to help bring the vehicle back in line. Its response differs by vehicle, so check the owner’s manual. ESC cannot create grip beyond what the tires and surface provide. It may help you keep control, but it cannot make a slick road safe at any speed. Leave ESC active on public roads. If the system has a setting that changes its operation, learn what that setting does before you drive. Check tire pressure, tread, and visible damage. Choose a speed that fits the road and weather. Keep ESC active on public roads. If weather or visibility worsens, slow down before the turn and increase the space you leave around other road users. What F1 Handling Can Teach About Road Cars F1 drivers may favor a more agile front end than most everyday drivers should seek on public roads. Racing preferences reflect performance goals, not a safe target for ordinary driving. The same balance that helps a skilled driver on a track may feel difficult on a busy road. At the start of the 2022 season, the overweight Red Bull RB18 had an understeering balance, especially in slow-speed corners. Its weight and the effects of Pirelli’s new front tires for 18-inch wheel rims contributed to the issue. In a 2022 interview, Max Verstappen said, “A car cannot be fast with understeer. It’s impossible.” He described preferring an agile front end and an “oversteer-happy approach.” That view reflects performance driving, where a driver can make quick corrections in a controlled setting. It is not a rule for road cars, which face traffic, uncertain surfaces, and changing conditions. The FIA’s 2022 driving standards guidelines let stewards consider understeer, oversteer, and locking when reviewing an incident. They can also consider relative tires, tire age, and grip. Drifting is intentional, controlled oversteer associated with motorsport. It belongs on a supervised, closed course, never on public roads. Treat a racing setup preference as context for vehicle balance, not as advice to approach a road car’s limits. Conclusion The useful distinction is simple: a front-end push and a rear-end slide are different signs of grip loss, and neither is a reason to drive closer to the limit. Smooth inputs, suitable speed, and well-maintained tires help reduce risk. A car’s behavior still depends on its design and the conditions around it. Before your next trip, check tire pressure against the vehicle placard and look for worn tread or visible damage. Review the owner’s manual for guidance on your car’s safety systems and handling. Check your tires and review your owner’s manual before your next trip. FAQ What is the safest steering method? Smooth, controlled steering with both hands on the wheel is the safest general method. Look toward the path you want, then avoid abrupt turns or sharp corrections, especially on slippery roads. A secure grip helps you make steady inputs, but hand position alone cannot prevent a slide. Follow your vehicle’s manual for model-specific guidance. Does Max Verstappen like oversteer or under? In a 2022 interview, Max Verstappen said he preferred an agile front end and an “oversteer-happy approach.” That describes his performance-driving preference, not a rule for everyday road cars. Racing drivers work with different goals and settings than ordinary drivers. Do not try to copy a racing balance on public roads. Is understeer loose or tight? Understeer is commonly called “tight” because the car turns less than you intend and pushes wide. The front tires lose grip before the rear tires, so adding more steering may not make the car turn more. Ease off the accelerator smoothly and avoid adding a sudden steering or braking input. Do you put your hands at 10 and 2 or 9 and 3? For a modern steering wheel, 9-and-3 is the commonly recommended position. It keeps both hands ready for controlled steering and avoids placing them high on the wheel. Keep a secure grip and stay focused on the road. Follow your vehicle’s manual if it gives different guidance for safe control. What is the new driving hand position? The commonly recommended hand position is 9-and-3, with one hand on each side of the steering wheel. It supports steady steering and makes it easier to keep both hands in place. It does not guarantee safety by itself. Your attention, smooth inputs, and a safe speed remain essential. Where are your hands supposed to go when driving? Keep both hands on the steering wheel, preferably at 9-and-3 when practical. That position supports controlled inputs while leaving room to steer in either direction. Adjust your grip for the wheel and the control you need, and follow your vehicle’s manual. Do not let hand position distract you from watching the road. How do I properly steer a car? Look where you intend to go and steer smoothly, without sudden corrections. Keep both hands on the wheel when practical, and adjust your speed before a turn rather than braking sharply through it. On slippery roads, use especially gentle inputs. Your owner’s manual gives guidance for your specific steering system and vehicle. Why is the 10 and 2:00 hand position no longer considered the best steering position? The 9-and-3 position is commonly preferred because it keeps both hands ready for controlled steering without placing them as high on the wheel. A secure grip still matters more than a specific position alone. Follow your vehicle’s manual, keep your attention on traffic, and avoid abrupt steering movements.

A rear wing can change the character of a car at speed, from the way the rear end feels in a fast corner to the way the vehicle carries its visual balance. The airfoil shape sits at the center of that change because it guides airflow and creates a pressure pattern across the wing. In automotive use, the most effective airfoil matches the vehicle, speed range, installation position, ride height, bodywork, and driving environment. A street car and a track car may use different airfoil shapes because they place different value on efficiency, stability, and cornering load. An airfoil describes the cross-sectional profile of a wing. A complete car wing also includes its span, endplates, mounts, adjustment range, and position within the vehicle’s airflow. These elements work together to shape downforce, drag, pressure distribution, and handling balance. How Does Airfoil Shape Affect Downforce and Drag on a Car Wing? A car wing redirects surrounding airflow and creates a pressure difference across its surfaces. The resulting aerodynamic force can add load to the vehicle, helping the tires maintain contact during high-speed acceleration, braking, and cornering. Airfoil Shape and Downforce As air reaches the leading edge, it follows the upper and lower surfaces of the profile. The pressure pattern across those surfaces creates aerodynamic force, with part of that force directed downward in an automotive application. That added load can support high-speed stability, rear-end confidence, and cornering grip when the wing works with the vehicle’s tires, suspension, ride height, and front-to-rear aero balance. A complete result also depends on vehicle speed, air density, wing area, yaw angle, mounting position, and the airflow arriving from the bodywork. The profile establishes the wing’s behavior, while the vehicle determines how that behavior reaches the road. How Airfoil Pressure Distribution Changes Airfoil pressure distribution maps the pressure changes across the profile, from the leading edge to the trailing edge and between the upper and lower surfaces. It explains why two wings with similar visual proportions can behave differently on the road or circuit. The leading edge introduces the airflow to the profile. As the flow moves toward the thickest section, its speed and pressure change. The rear section then manages pressure recovery as the air leaves the wing. A controlled pressure recovery supports attached airflow across the intended operating range. A sharper recovery can encourage separation, increasing drag and creating a less stable aerodynamic load. Pressure distribution also responds to angle of attack, speed, and yaw. A profile can produce a smooth load curve in one setting and a different result when the wing moves to a higher angle or meets the airflow during cornering. Why Downforce and Drag Rise Together A wing produces downforce by redirecting airflow and creating a pressure difference. The same process adds aerodynamic resistance, so downforce and drag usually rise together as the wing works harder. The useful balance depends on the vehicle’s power, gearing, tire package, suspension, ride height, and operating speed. A road car may favor a moderate load with predictable efficiency, while a circuit setup may place greater value on cornering stability and braking support. The right setting gives the vehicle useful load within the speeds and conditions where it operates. Which Airfoil Design Features Matter When Comparing Car Wings? A useful airfoil design comparison looks at the full profile and the way its parts work together. Camber, thickness, chord, leading-edge radius, trailing-edge shape, and angle of attack each influence the airflow around the wing. Camber and Thickness Camber describes the curvature of the airfoil section. A deeper camber can support greater aerodynamic loading within a suitable operating range, while also changing the wing’s sensitivity to angle of attack and drag. Thickness contributes to both aerodynamic behavior and structural stiffness. It also affects pressure recovery, visual proportion, mounting space, and the way the wing integrates with the vehicle. The useful balance comes from the relationship between camber, thickness, speed, angle of attack, and the vehicle receiving the wing. Chord, Leading Edge and Trailing Edge The main airfoil parts include the chord line, leading edge, upper and lower surfaces, maximum-thickness point, and trailing edge. The chord provides the profile’s reference length. A longer chord can increase effective wing area while also changing drag, mounting space, and the visual relationship between the wing and the vehicle. The leading-edge radius shapes the first interaction between the airflow and the profile. The trailing edge manages how the air leaves the surface, influencing wake formation and pressure recovery. Together, these details define how the complete airfoil wing behaves. Angle of Attack and Adjustability Angle of attack describes the relationship between the wing’s reference line and the incoming airflow. Increasing the angle generally raises aerodynamic load through a useful operating range, with the final result shaped by the profile, speed, yaw, and installation position. An adjustable wing allows the setup to suit different driving environments. A lower setting can support road use and high-speed efficiency, while a higher setting can add cornering load for a circuit configuration. The adjustment range works alongside the mounting structure, vehicle balance, ground clearance, and airflow available at the wing’s position. How Does the Shape of an Airfoil Affect Street and Track Use? The meaning of an airfoil shape changes with the vehicle’s speed range, installation position, and build direction. The same profile can support a refined road setup, a mountain-road car, or a circuit-focused aero package when the surrounding system is designed around it. Airfoil Shapes for Street-Driven Cars A street-oriented wing benefits from predictable aerodynamic behavior, moderate drag, and compatibility with everyday road speeds. The profile should support high-speed stability while fitting the vehicle’s ride height, rear visibility, clearance, and overall appearance. For a road-focused direction, RevoZport’s Street Series provides a reference for coordinated fitment and refined exterior balance. Airfoil Shapes for Track-Focused Cars A track-focused wing can place greater emphasis on aerodynamic load and cornering stability. Greater camber, a higher angle of attack, a longer chord, or multiple elements can suit a circuit where additional grip carries greater value. The supporting system then becomes part of the design: front-end aero, mounting structure, suspension settings, tire capability, and ride height all contribute to how the added load reaches the track. A circuit-led project can follow the broader aero approach shown in the Race Series, where the wing works with the rest of the vehicle’s performance system. Matching the Wing to the Build Direction A high-speed road build, mountain-road setup, and circuit car can each use a rear wing with a different profile and adjustment range. The wing should support the vehicle’s main purpose and work with the rest of the chassis. A visually large wing can suit a track-focused build when its profile, mounts, adjustment range, and aero balance match the vehicle. A smaller wing can be the more considered choice for a road car where clearance, visibility, and efficiency carry greater weight. How Should You Evaluate an Airfoil Wing? A useful airfoil wing evaluation brings together the profile, the vehicle, the installation position, and the conditions behind the performance claim. Read the Testing Context Aerodynamic figures gain meaning from their test conditions. Look for the test speed, angle of attack, vehicle model, wing position, and development method, such as CFD, wind-tunnel work, or track testing. A wing can behave differently as speed, ride height, yaw, angle, and incoming airflow change. These conditions give the performance figure its practical meaning. Match the Wing to the Vehicle and Use Case The model generation, body style, mounting location, bracket structure, rear clearance, and intended use all shape the finished installation. Wheel and tire fitment, ride height, suspension movement, and surrounding bodywork also influence the wing’s place within the build. The visual stance, structural installation, and aerodynamic balance should point toward the same driving purpose. Compare Product-Specific Development RevoZport’s BMW M2 G87 carbon fiber race rear wing provides an example of product-level airfoil development. Its product information describes a bespoke airfoil, 2D profile analysis, 3D CFD refinement, separation prediction, and adjustable aero balance. Product-level information becomes most useful when the vehicle, wing position, adjustment range, and testing conditions are clearly connected. Frequently Asked Questions Is a Thicker Airfoil Always Better for Downforce? Thickness influences stiffness, pressure recovery, packaging, and airflow behavior. Downforce emerges from the complete relationship between the profile, wing area, angle of attack, speed, and installation position. Is a Symmetrical Airfoil Suitable for a Car Wing? A symmetrical airfoil can suit applications that value predictable behavior or a neutral section. Its operating result follows the angle of attack, wing installation, vehicle airflow, and intended use. Does Increasing Angle of Attack Always Increase Downforce? Increasing angle of attack generally raises aerodynamic load through a useful operating range. At higher settings, flow separation can increase drag while downforce levels off or begins to fall. What Is the Difference Between an Airfoil and a Complete Wing? An airfoil is the cross-sectional profile of the wing. A complete automotive wing adds span, endplates, mounts, adjustment hardware, and an installation position within the vehicle’s airflow. Conclusion Airfoil shape defines how a car wing guides airflow and develops pressure across its profile. Camber, thickness, chord, leading edge, trailing edge, and angle of attack all contribute to the wing’s aerodynamic behavior. The finished result comes from the relationship between the profile, span, endplates, mounting structure, vehicle bodywork, speed range, and build direction. Street and Track applications can call for different settings, while both depend on a clear connection between the wing and the rest of the aero package. When evaluating an airfoil wing, consider its shape, pressure distribution, testing context, installation position, and front-to-rear balance together. This gives the vehicle a coherent aerodynamic direction and gives the airfoil design a meaningful role within the complete build.
