Rear Wing Aero Balance Setup: Angle of Attack, Grip & Lap Time

Downforce only works when the car is balanced

Quick answer: Start with a conservative rear wing angle, adjust 1–2° at a time (or the smallest meaningful step), and validate with high-speed stability, braking confidence, and lap time consistency. If the rear is planted but the front washes out, add front aero support rather than removing rear wing.

Adding a rear wing without balancing the car often makes it slower, not faster. Aero must work as a system: front and rear downforce, ride height at speed, and how the chassis responds under load.

Safety note: Make changes methodically and only when the car is mechanically sound. If you’re unsure, work with a coach or experienced aero tuner—high-speed imbalance can be unsafe.

For more track-day setup guides and engineering notes, visit RevoZport.

Before you start: lock the baseline (so your results are real)

Aero testing only works if the baseline is repeatable:

• Tires/pressures: same tire model + similar wear, stable hot-pressure window

• Fuel/load: align with your typical session (keep it consistent)

• Ride height & rake: consistent measurement points; no rubbing

• Hardware: all mounts tight, endplates/brackets secure, no loose suspension components

• Notes: log wing angle, session type, temps, and driver feedback

If any of these change between tests, your “wing result” may actually be tire or platform noise.

Step 1: Understand aero balance

Aero balance is the front-to-rear distribution of downforce. More downforce overall doesn’t guarantee more speed—if the balance is wrong, the car will feel worse and can be slower.

Common signals:

• Too much rear aero (rear-biased):

• High-speed understeer

• Poor turn-in at speed

• Front feels light or “skates” mid-corner

• Too little rear aero (front-biased):

• High-speed oversteer

• Nervousness in fast transitions

• Reduced braking confidence at high speed

The goal isn’t max wing angle. The goal is confidence at speed with predictable response.

Step 2: Start conservative with wing angle

Begin with:

• A moderate angle of attack (not maxed out)

• A repeatable baseline (same tires, pressures, fuel load, and session type)

Then assess at speed:

• High-speed corner stability

• Braking confidence

• Steering response (does the front take a set, or wash wide?)

Log the exact wing setting and conditions so you can return to your baseline if needed.

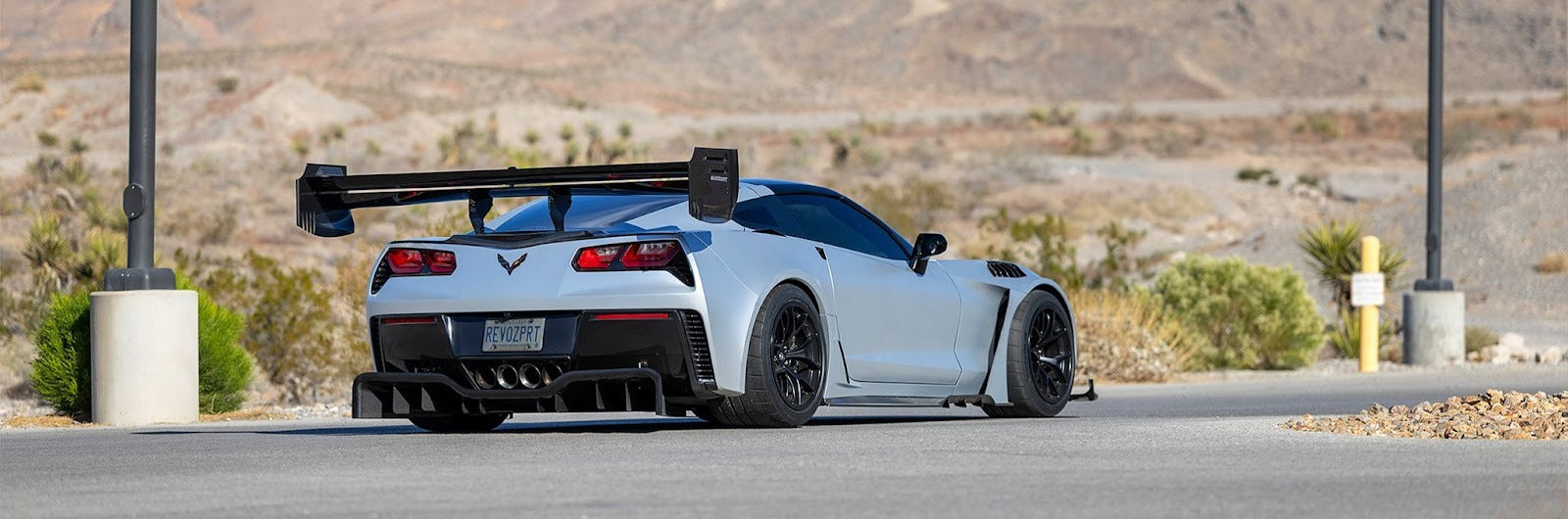

Step 3: Adjust wing angle incrementally

Make changes in:

• 1–2° at a time (or the smallest meaningful adjustment on your wing), then re-test

Important: Don’t change wing angle and suspension settings in the same test session. Change one variable, re-test, log, then move to the next lever.

Use this decision logic:

• If the rear feels planted but the front washes out at high speed:

• You likely need more front aero support (or better platform control), not less rear wing

• Before changing wing again, confirm your front tires aren’t overheating and tire pressures are still in the same hot window, and verify alignment/toe isn’t the real culprit

• If the rear feels loose at high speed:

• Increase rear wing angle slightly

• Re-test with the same fuel load and the same push level

• If the car feels stable but lap time worsens, especially on straights:

• You May be adding drag faster than you’re gaining corner speed

• Reduce wing angle one step and re-test

Step 4: Balance aero with suspension and ride height

Aero changes affect:

• Ride height at speed (aero load compresses the suspension)

• Platform stability over bumps/curbs

• Spring and damper behavior under sustained load

If aero load increases significantly:

• You May need stiffer springs, or

• Slightly more compression damping to maintain platform control

Important: If the car is riding bump stops or the platform collapses at speed, aero balance conclusions won’t be reliable. Fix the platform first, then re-test wing settings.

Step 5: Validate with lap times and data

The correct aero setup typically:

• Improves lap time over multiple consistent laps (not just one hero lap)

• Increases confidence (fewer steering corrections)

• Makes high-speed behavior repeatable session to session

Minimum useful validation:

• Lap time consistency

• Speed and stability through the fastest section

• Braking confidence notes (same marker, same approach)

If lap times worsen:

• Reduce wing angle one step

• Confirm baseline hasn’t changed (pressure, fuel, ride height, conditions)

• Re-balance front-to-rear instead of stacking random changes

Key takeaways

• More rear wing does not automatically mean more speed

• Aero must be balanced front-to-rear to be fast and safe

• Adjust wing angle in small steps (1–2° or the smallest meaningful step) and log conditions

• If the rear is planted but the front washes out, add front aero support rather than removing rear wing

• Tune suspension to match aero load and maintain ride height at speed

FAQ

1. How much should I adjust rear wing angle each time?
Small steps—usually 1–2°, or the smallest meaningful adjustment your wing allows—then re-test under the same conditions.

2. How do I know if I need more front aero versus less rear wing?
If the rear is stable but the front washes out at high speed, it’s often a front limitation. First confirm front tires aren’t overheating and pressures are stable, then add front aero support or improve platform control before pulling rear wing out.

3. Why did my lap times get worse after adding wing?
You may have added drag without gaining enough corner speed, or the extra load changed ride height/platform behavior. Reduce one step and re-test with a stable baseline.

4. Can suspension changes affect aero balance?
Yes. More downforce compresses the suspension at speed. If ride height drops or you hit bump stops, balance and drag can change dramatically.
